Course Introduction

In this lesson, you’ll use an OLED display, an LED, and a button with the Arduino R4 UNO to build a reaction time game.

When the LED lights up, players must press the button as quickly as possible. The OLED screen displays the reaction time, and pressing the button again starts a new round.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

• 1.1 Install Arduino IDE(Important)

• 1.2 Introduce of Arduino IDE

Required Components

In this project, we need the following components:

SN	COMPONENT INTRODUCTION	QUANTITY	PURCHASE LINK
1	Arduino UNO R4 Minima	1	BUY
2	USB Type-C cable	1
3	Breadboard	1	BUY
4	Wires	Several	BUY
5	Button	1	BUY
6	OLED Display Module	1	BUY
7	LED	1	BUY
8	220Ω resistor	1	BUY

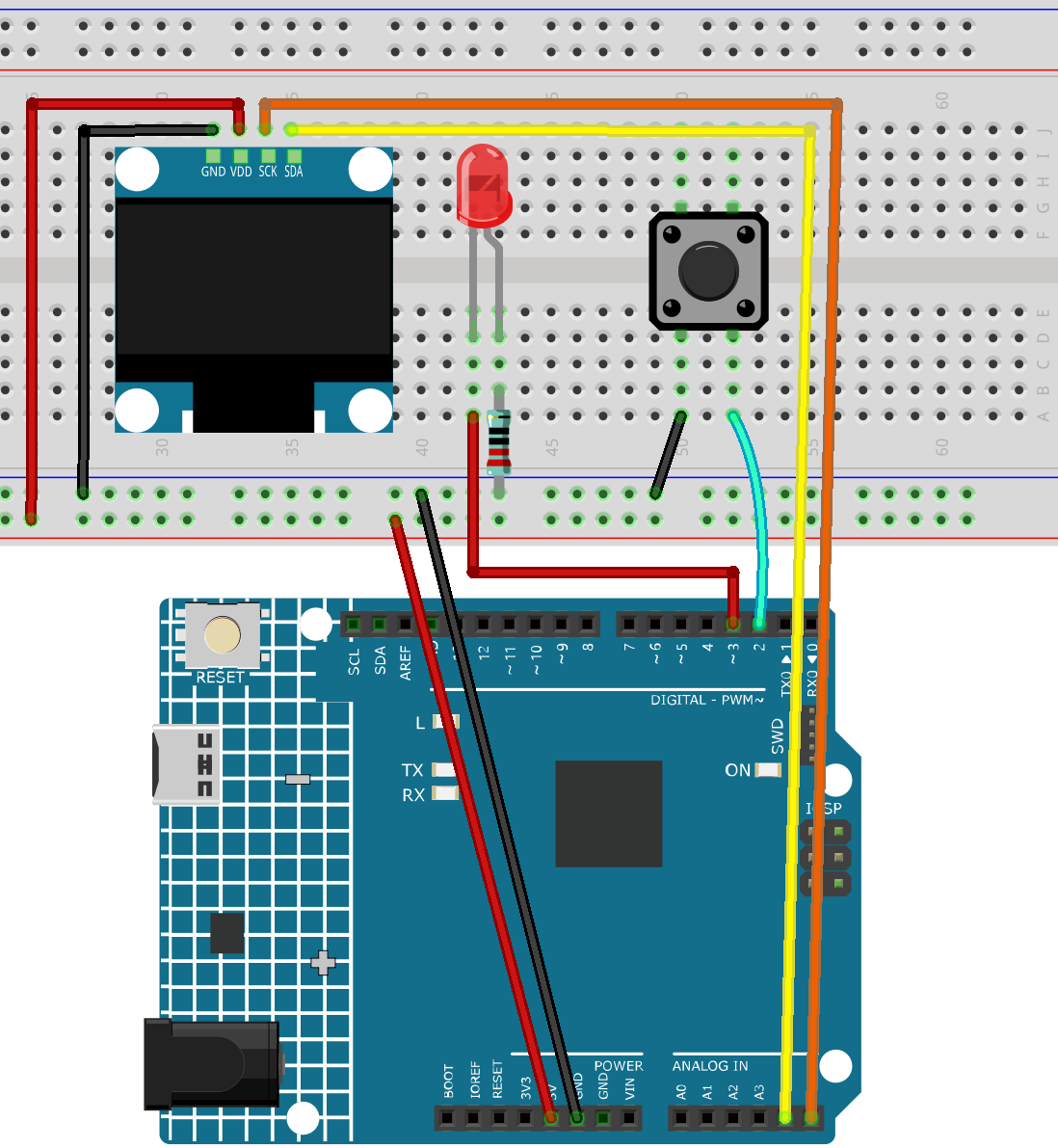

Wiring

Common Connections:

• OLED Display Module

  • SDA: Connect to A4 on the Arduino.

  • SCK: Connect to A5 on the Arduino.

  • GND: Connect to breadboard’s negative power bus.

  • VCC: Connect to breadboard’s red power bus.

• Button

  • Connect to the breadboard’s negative power bus, and the other end to 2 on the Arduino board.

• LED

  • Connect the LED cathode to the to a 220Ω resistor, then to negative power bus on the breadboard, anode to 3 on the Arduino.

Writing the Code

Note

• You can copy this code into Arduino IDE.

• To install the library, use the Arduino Library Manager and search for Adafruit SSD1306 and Adafruit GFX and install it.

• Don’t forget to select the board(Arduino UNO R4 Minima) and the correct port before clicking the Upload button.

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET    -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

const int LED_PIN = 3;    // LED positive to D3, negative -> resistor -> GND
const int BUTTON_PIN = 2; // Button one end to D2, the other to GND

bool waitingReaction = false;
bool roundFinished = false;
unsigned long ledOnTime = 0;
unsigned long reactionTime = 0;

void setup() {
  pinMode(LED_PIN, OUTPUT);
  pinMode(BUTTON_PIN, INPUT_PULLUP); // Internal pull-up, button pressed = LOW

  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
    for (;;) ; // Stop if OLED initialization fails
  }

  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(10, 20);
  display.println("Reaction Game");
  display.setCursor(10, 40);
  display.println("Press to start");
  display.display();

  // Wait until button is pressed to start
  while (digitalRead(BUTTON_PIN) == HIGH);
  delay(200);
}

void loop() {
  if (!roundFinished) {
    // --- Show waiting message ---
    digitalWrite(LED_PIN, LOW);
    display.clearDisplay();
    display.setCursor(0, 20);
    display.println("Wait for LED...");
    display.display();

    delay(random(1000, 5000)); // Random delay 1~5 seconds

    // --- Turn on LED and record time ---
    digitalWrite(LED_PIN, HIGH);
    ledOnTime = millis();
    waitingReaction = true;
    roundFinished = true;
  }

  // --- Wait for player to press the button after LED on ---
  if (waitingReaction && digitalRead(BUTTON_PIN) == LOW) {
    reactionTime = millis() - ledOnTime;
    waitingReaction = false;
    showResult();
    delay(200); // debounce
  }

  // --- After result, wait for button press to start next round ---
  if (!waitingReaction && roundFinished && digitalRead(BUTTON_PIN) == LOW) {
    delay(200); // debounce
    roundFinished = false;  // Start new round
  }
}

void showResult() {
  digitalWrite(LED_PIN, LOW); // Turn off LED
  display.clearDisplay();
  display.setTextSize(2);
  display.setCursor(0, 20);
  display.print("Time:");
  display.print(reactionTime);
  display.println("ms");
  display.setTextSize(1);
  display.setCursor(0, 50);
  display.println("Press button again");
  display.display();
}
