Course Introduction

In this lesson, you’ll learn how to build a reverse parking sensor system using an Ultrasonic Sensor Module, an OLED display, an RGB LED strip, and buzzer module.

The OLED displays the distance to nearby obstacles, while the LED strip changes color and the buzzer beeps faster as obstacles get closer, providing real-time parking assistance.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN	COMPONENT INTRODUCTION	QUANTITY	PURCHASE LINK
1	Arduino UNO R4 Minima	1	BUY
2	USB Type-C cable	1
3	Breadboard	1	BUY
4	Wires	Several	BUY
5	LED Strip	1	BUY
6	Ultrasonic Sensor Module	1	BUY
7	Buzzer Modudle	1	BUY
8	OLED Display Module	1	BUY

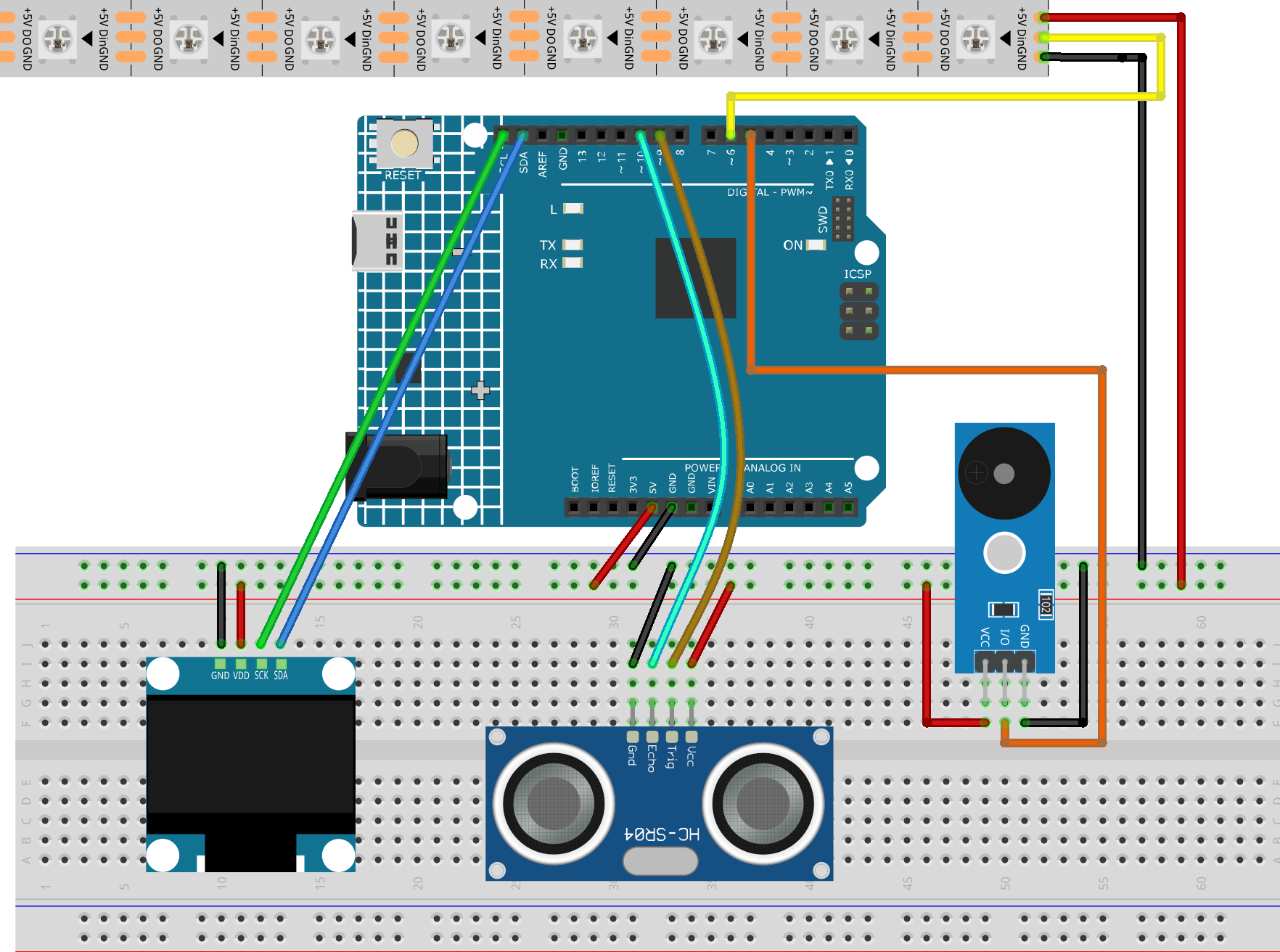

Wiring

Common Connections:

LED Strip
- Din: Connect to 6 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- +5V: Connect to breadboard’s passive power bus.
Ultrasonic Sensor Module
- Trig: Connect to 9 on the Arduino.
- Echo: Connect to 10 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
OLED Display Module
- SDA: Connect to SDA on the Arduino.
- SCK: Connect to SCL on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
Buzzer Module
- I/0: Connect to 5 on the Arduino.
- ＋: Connect to breadboard’s red power bus.
- －: Connect to breadboard’s negative power bus.

Writing the Code

Note

You can copy this code into Arduino IDE.
To install the library, use the Arduino Library Manager and search for Adafruit_NeoPixel, Adafruit SSD1306 and Adafruit GFX and install it.
Don’t forget to select the board(Arduino UNO R4 Minima) and the correct port before clicking the Upload button.

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <Adafruit_NeoPixel.h>

// OLED
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define OLED_ADDR 0x3C

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// Pins
const int TRIG_PIN = 9;
const int ECHO_PIN = 10;
const int BUZZER_PIN = 5;
const int LED_PIN = 6;

// LED strip
const int LED_COUNT = 8;
Adafruit_NeoPixel strip(LED_COUNT, LED_PIN, NEO_GRB + NEO_KHZ800);

// Distance settings
const int SAFE_DISTANCE_CM = 20;
const int LED_START_CM = 15;
const int DANGER_DISTANCE_CM = 3;

// Buzzer timing
unsigned long lastBeepTime = 0;
bool buzzerState = false;

// Passive buzzer frequency
const int BUZZER_FREQ = 2000;

void setup() {
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
  pinMode(BUZZER_PIN, OUTPUT);

  noTone(BUZZER_PIN);

  strip.begin();
  strip.show();

  if (!display.begin(SSD1306_SWITCHCAPVCC, OLED_ADDR)) {
    while (true);
  }

  display.clearDisplay();
  display.display();
}

void loop() {
  float distanceCM = readDistanceCM();
  int distanceMM = distanceCM * 10;

  updateOLED(distanceMM, distanceCM);
  updateLEDStrip(distanceCM);
  updateBuzzer(distanceCM);

  delay(50);
}

float readDistanceCM() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);

  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  long duration = pulseIn(ECHO_PIN, HIGH, 30000);

  if (duration == 0) {
    return 999;
  }

  return duration * 0.0343 / 2.0;
}

void updateOLED(int distanceMM, float distanceCM) {
  display.clearDisplay();

  display.setTextColor(SSD1306_WHITE);

  display.setTextSize(1);
  display.setCursor(0, 0);
  display.print("Reverse Radar");

  display.setTextSize(2);
  display.setCursor(0, 22);

  if (distanceCM > SAFE_DISTANCE_CM) {
    display.print("SAFE");
  } else {
    display.print(distanceMM);
    display.print("mm");
  }

  display.display();
}

void updateLEDStrip(float distanceCM) {
  if (distanceCM > SAFE_DISTANCE_CM) {
    clearLEDs();
    return;
  }

  if (distanceCM > LED_START_CM) {
    clearLEDs();
    return;
  }

  int ledsOn = 0;

  if (distanceCM <= 0) {
    ledsOn = 1;
  } else {
    ledsOn = ceil(distanceCM / 2.0);
  }

  ledsOn = constrain(ledsOn, 1, LED_COUNT);

  uint32_t color;

  if (distanceCM >= 9 && distanceCM <= 15) {
    color = strip.Color(0, 255, 0);       // Green
  } else if (distanceCM > 5 && distanceCM < 9) {
    color = strip.Color(255, 180, 0);     // Yellow
  } else {
    color = strip.Color(255, 0, 0);       // Red
  }

  clearLEDs();

  for (int i = 0; i < ledsOn; i++) {
    strip.setPixelColor(i, color);
  }

  strip.show();
}

void updateBuzzer(float distanceCM) {
  if (distanceCM > SAFE_DISTANCE_CM) {
    noTone(BUZZER_PIN);
    buzzerState = false;
    return;
  }

  if (distanceCM < DANGER_DISTANCE_CM) {
    tone(BUZZER_PIN, BUZZER_FREQ);  // Long beep
    return;
  }

  int beepInterval = map(distanceCM, 3, 20, 100, 800);
  beepInterval = constrain(beepInterval, 100, 800);

  if (millis() - lastBeepTime >= beepInterval) {
    lastBeepTime = millis();

    buzzerState = !buzzerState;

    if (buzzerState) {
      tone(BUZZER_PIN, BUZZER_FREQ);
    } else {
      noTone(BUZZER_PIN);
    }
  }
}

void clearLEDs() {
  for (int i = 0; i < LED_COUNT; i++) {
    strip.setPixelColor(i, 0, 0, 0);
  }
  strip.show();
}
