Course Introduction

This Arduino project uses an MQ-2 gas sensor, a 16×2 I2C LCD, LEDs, and a buzzer to detect gas concentration in real time. It displays the sensor value on the LCD and indicates the current level with LED and buzzer alerts, switching between safe (green), warning (yellow blink with short beep), and alert (red fast blink with alarm) based on the gas level.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN	COMPONENT INTRODUCTION	QUANTITY	PURCHASE LINK
1	Arduino UNO R4 WIFI	1	BUY
2	USB Type-C cable	1
3	Breadboard	1	BUY
4	Wires	Several	BUY
5	Buzzer Modudle	1	BUY
6	Traffic Light LED	1	BUY
7	MQ-2 Gas Sensor Module	1	BUY
6	I2C LCD 1602	1	BUY

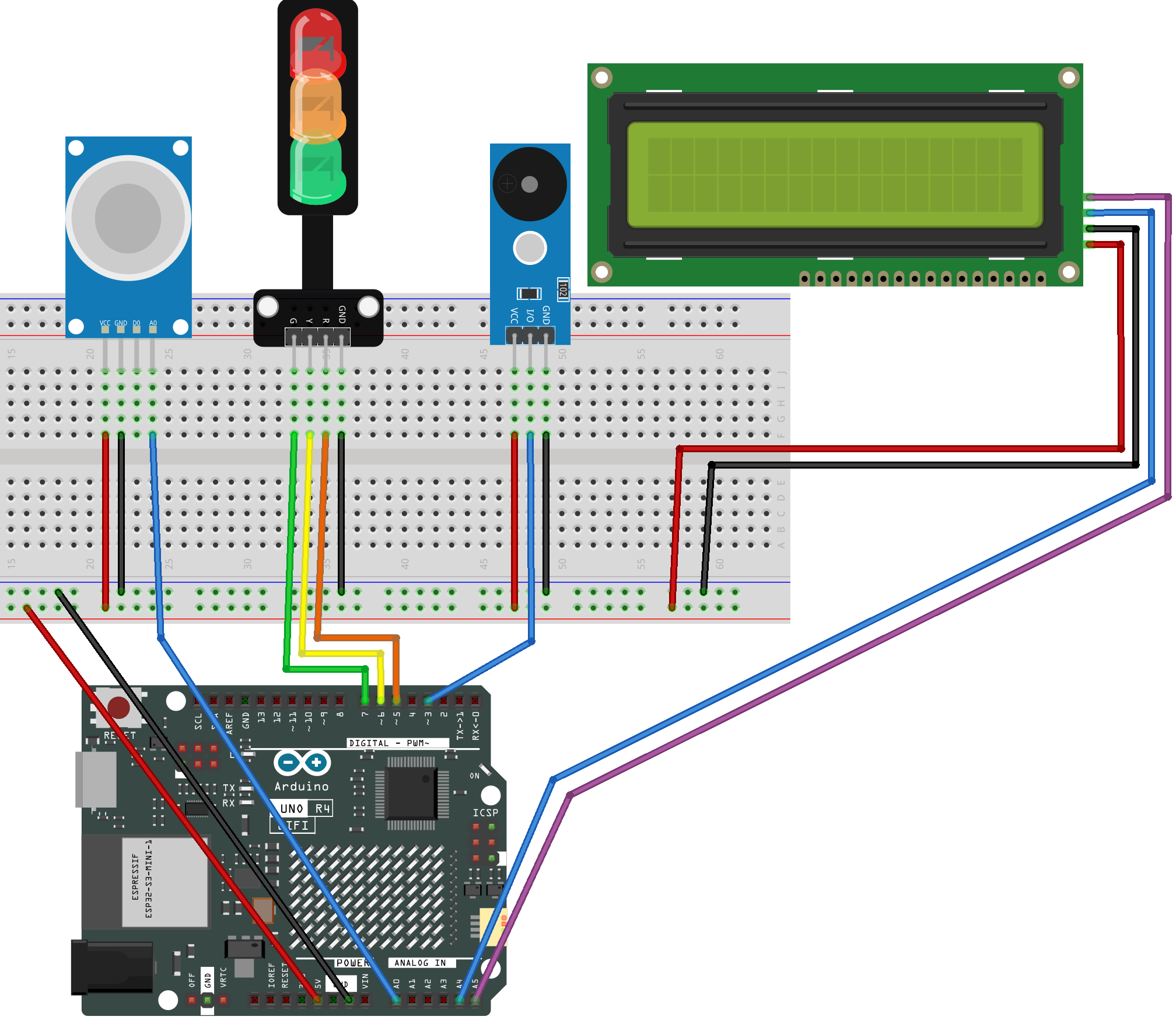

Wiring

Common Connections:

MQ-2 Gas Sensor Module
- A0: Connect to A0 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
I2C LCD 1602
- SDA: Connect to A4 on the Arduino.
- SCL: Connect to A5 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
Buzzer Modudle
- I/O: Connect to 3 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
Traffic light LED
- R: Connect to 5 on the Arduino.
- Y: Connect to 6 on the Arduino.
- G: Connect to 7 on the Arduino.
- GND: Connect to breadboard’s negative power bus.

Writing the Code

Note

You can copy this code into Arduino IDE.
To install the library, use the Arduino Library Manager and search for LiquidCrystal_I2C and install it.
Don’t forget to select the board(Arduino UNO R4 WIFI) and the correct port before clicking the Upload button.

#include <LiquidCrystal_I2C.h>

/*
  MQ-2 Gas Monitor (Yellow: long-ON/short-OFF; immediate beep on level change)
  UI:
    - LCD line1: "Gas level:"
    - LCD line2: raw ADC value (0~1023)
  Levels (absolute thresholds):
    SAFE   : value < 100        -> Green solid, buzzer off
    WARN   : 100 <= value < 500 -> Yellow BLINK (ON 700ms / OFF 300ms) + short beep
    ALERT  : value >= 500       -> Red    BLINK (ON 120ms / OFF 130ms) + fast beep
  Notes:
    - On entering WARN/ALERT, buzzer beeps immediately (fixes delayed first beep).
    - Non-blocking timing via millis(), no delay().
*/

// -------- Pins --------
const int PIN_MQ2  = A0;  // MQ-2 analog output
const int PIN_G    = 5;   // Green LED
const int PIN_Y    = 6;   // Yellow LED
const int PIN_R    = 7;   // Red LED
const int PIN_BUZZ = 3;   // Passive buzzer (tone-capable)

// -------- LCD --------
LiquidCrystal_I2C lcd(0x27, 16, 2); // If no display, try 0x3F

// -------- Thresholds (absolute) --------
const int TH_YELLOW = 100; // >=100 => WARN (yellow blinking)
const int TH_RED    = 500; // >=500 => ALERT (red blinking)

// -------- Timing (ms) --------
const unsigned long LCD_INTERVAL = 200;  // LCD refresh interval

// WARN (yellow): 1000ms period; LED ON 700ms / OFF 300ms; beep 80ms at start
const unsigned long WARN_PERIOD_MS   = 1000;
const unsigned long WARN_LED_ON_MS   = 700;
const unsigned long WARN_BEEP_ON_MS  = 80;

// ALERT (red): 250ms period; LED ON 120ms / OFF 130ms; beep 120ms at start
const unsigned long ALERT_PERIOD_MS  = 250;
const unsigned long ALERT_LED_ON_MS  = 120;
const unsigned long ALERT_BEEP_ON_MS = 120;

// -------- State --------
unsigned long tLCD        = 0;   // last LCD update
unsigned long tWarnStart  = 0;   // start time of current WARN cycle
unsigned long tAlertStart = 0;   // start time of current ALERT cycle

int rawVal = 0; // current ADC reading

enum Level { LV_SAFE, LV_WARN, LV_ALERT };
Level curLv = LV_SAFE;

// -------- Helpers --------
void setLights(bool g, bool y, bool r) {
  digitalWrite(PIN_G, g ? HIGH : LOW);
  digitalWrite(PIN_Y, y ? HIGH : LOW);
  digitalWrite(PIN_R, r ? HIGH : LOW);
}

Level decideLevel(int v) {
  if (v >= TH_RED)    return LV_ALERT;
  if (v >= TH_YELLOW) return LV_WARN;
  return LV_SAFE;
}

void lcdService() {
  unsigned long now = millis();
  if (now - tLCD < LCD_INTERVAL) return; // throttle updates
  tLCD = now;

  lcd.setCursor(0, 0);
  lcd.print("Gas level:");

  lcd.setCursor(0, 1);
  lcd.print("                "); // clear 16 chars
  lcd.setCursor(0, 1);
  lcd.print(rawVal);            // show only the number
}

/*
  Yellow (WARN): long-ON/short-OFF with a short beep at each cycle start.
*/
void warnService() {
  unsigned long now = millis();
  unsigned long phase = now - tWarnStart;

  if (phase >= WARN_PERIOD_MS) {       // new cycle
    tWarnStart = now;
    phase = 0;
    tone(PIN_BUZZ, 1000, WARN_BEEP_ON_MS); // immediate beep at cycle start
  }

  bool ledOn = (phase < WARN_LED_ON_MS);
  digitalWrite(PIN_Y, ledOn ? HIGH : LOW);

  // Ensure other LEDs OFF here
  digitalWrite(PIN_G, LOW);
  digitalWrite(PIN_R, LOW);
}

/*
  Red (ALERT): fast blinking with a beep at each cycle start.
*/
void alertService() {
  unsigned long now = millis();
  unsigned long phase = now - tAlertStart;

  if (phase >= ALERT_PERIOD_MS) {      // new cycle
    tAlertStart = now;
    phase = 0;
    tone(PIN_BUZZ, 2000, ALERT_BEEP_ON_MS); // immediate beep at cycle start
  }

  bool ledOn = (phase < ALERT_LED_ON_MS);
  digitalWrite(PIN_R, ledOn ? HIGH : LOW);

  // Ensure other LEDs OFF here
  digitalWrite(PIN_G, LOW);
  digitalWrite(PIN_Y, LOW);
}

void safeService() {
  setLights(true, false, false); // green solid
  noTone(PIN_BUZZ);              // silence
}

// -------- Arduino --------
void setup() {
  pinMode(PIN_G, OUTPUT);
  pinMode(PIN_Y, OUTPUT);
  pinMode(PIN_R, OUTPUT);
  pinMode(PIN_BUZZ, OUTPUT);

  safeService(); // power-up: green ON, buzzer off

  lcd.init();
  lcd.clear();
  lcd.backlight();
  lcd.setCursor(0, 0); lcd.print("Gas level:");
  lcd.setCursor(0, 1); lcd.print("----");

  unsigned long now = millis();
  tWarnStart  = now;
  tAlertStart = now;
}

void loop() {
  // 1) Read sensor
  rawVal = analogRead(PIN_MQ2);

  // 2) Decide level
  Level newLv = decideLevel(rawVal);

  // 3) On level change: re-anchor cycles AND BEEP IMMEDIATELY for WARN/ALERT
  if (newLv != curLv) {
    curLv = newLv;
    unsigned long now = millis();

    // Re-anchor cycle timers so LED timing starts cleanly
    tWarnStart  = now;
    tAlertStart = now;

    // Clear previous-state LEDs
    if (curLv != LV_WARN)  digitalWrite(PIN_Y, LOW);
    if (curLv != LV_ALERT) digitalWrite(PIN_R, LOW);

    // >>> Immediate beep on entering WARN/ALERT (fixes delayed first beep) <<<
    if (curLv == LV_WARN) {
      tone(PIN_BUZZ, 1000, WARN_BEEP_ON_MS);
    } else if (curLv == LV_ALERT) {
      tone(PIN_BUZZ, 2000, ALERT_BEEP_ON_MS);
    } else {
      noTone(PIN_BUZZ);
    }
  }

  // 4) Drive services
  switch (curLv) {
    case LV_SAFE:  safeService();  break;
    case LV_WARN:  warnService();  break;
    case LV_ALERT: alertService(); break;
  }

  // 5) Update LCD
  lcdService();

  // No delay()
}
