Course Introduction

In this lesson, we’ll build a 10.0 access-control system using the I2C LCD, MFRC522 module, MQ-2 gas sensor, a digital servo motor, buzzer module, flame sensor module.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN	COMPONENT INTRODUCTION	QUANTITY	PURCHASE LINK
1	Arduino UNO R4 Minima/Arduino UNO R4 WIFI	1	BUY
2	USB Type-C cable	1
3	Breadboard	1	BUY
4	Wires	Several	BUY
5	Flame Sensor Module	1	BUY
6	Buzzer Modudle	1	BUY
7	MFRC522 Module	1	BUY
8	Power Supply Module	1	BUY
9	Digital Servo Motor	1	BUY
10	MQ-2 Gas Sensor Module	1	BUY
11	I2C LCD 1602	1	BUY

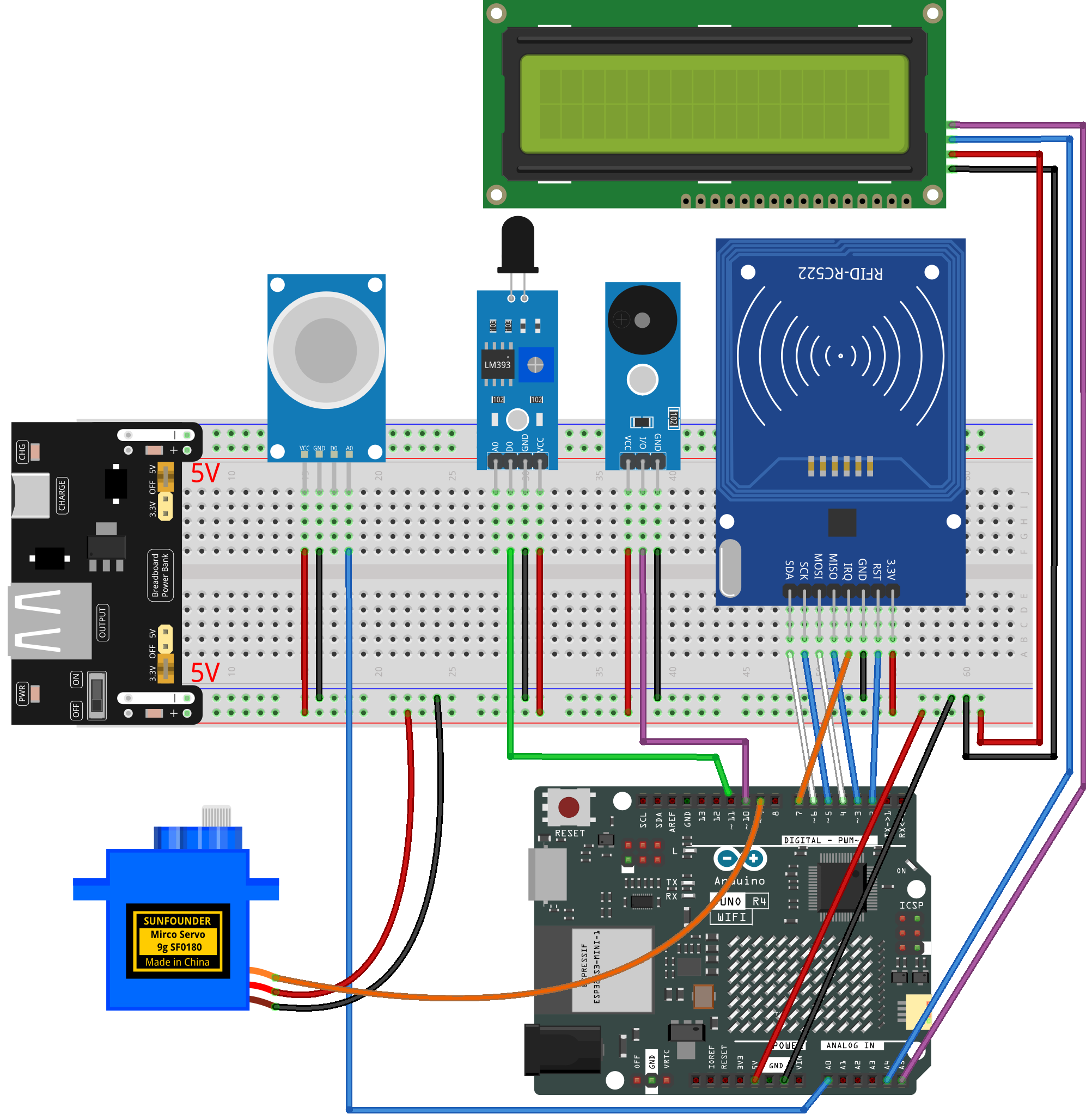

Wiring

Common Connections:

MFRC522 Module
- IRQ: Connect to 7 on the ESP32.
- SDA: Connect to 6 on the ESP32.
- SCK: Connect to 5 on the ESP32.
- MOSI: Connect to 4 on the ESP32.
- MISO: Connect to 3 on the ESP32.
- GND: Connect to breadboard’s negative power bus.
- RST: Connect to 2 on the ESP32.
- 3.3V: Connect to breadboard’s passive power bus.
MQ-2 Gas Sensor Module
- A0: Connect to A0 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
Buzzer Module
- I/0: Connect to 10 on the Arduino.
- ＋: Connect to breadboard’s red power bus.
- －: Connect to breadboard’s negative power bus.
Digital Servo Motor
- Connect to breadboard’s positive power bus.
- Connect to breadboard’s negative power bus.
- Connect to 9 on the Arduino.
Flame Sensor Module
- D0: Connect to 11 on the Arduino.
- GND: Connect to GND on the Arduino.
- VCC: Connect to 5V on the Arduino.
I2C LCD 1602
- SDA: Connect to A4 on the Arduino.
- SCL: Connect to A5 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.

Writing the Code

Note

You can copy this code into Arduino IDE.
The RFID1 library is used here. You can click here RFID1.zip to download it.
To install the library, use the Arduino Library Manager and search for LiquidCrystal_I2C and install it.
Don’t forget to select the board(Arduino UNO R4 WIFI) and the correct port before clicking the Upload button.

#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <rfid1.h>
#include <Servo.h>

#define ID_LEN 4    // Length of RFID UID

// Pin definitions
const int servoPin  = 9;    // Servo motor for door
const int buzzerPin = 10;   // Buzzer
const int flamePin  = 11;   // Flame sensor (digital)
const int smokePin  = A0;   // Smoke sensor (analog)

// Objects
RFID1 rfid;
Servo myServo;
LiquidCrystal_I2C lcd(0x27, 16, 2);

// Authorized RFID card UID
uchar userId[ID_LEN] = {0x36, 0xE2, 0xC4, 0xF7};
uchar userIdRead[ID_LEN];

// Servo movement control
int targetPos  = 0;   // Target angle
int currentPos = 0;   // Current angle

// Door state after valid card
bool cardAction = false;
unsigned long cardTimer = 0;

// Emergency control flags
bool emergencyAlert = false;
bool emergencyRecovering = false;
unsigned long emergencyRecoverStart = 0;

// Smoke sensor threshold
int smokeValue = 0;
const int smokeThreshold = 200;

// System states for LCD display
enum SystemState {
  STATE_BOOT,
  STATE_IDLE,
  STATE_ACCESS_GRANTED,
  STATE_ACCESS_DENIED,
  STATE_EMERGENCY
};

SystemState currentState = STATE_BOOT;
SystemState lastState    = STATE_IDLE;

// Emergency type for LCD message
enum EmergencyType {
  EM_NONE,
  EM_SMOKE,
  EM_FIRE,
  EM_BOTH
};

EmergencyType emergencyType = EM_NONE;

// Set servo target angle (0–90 degrees)
void setServoAngle(int angle) {
  targetPos = constrain(angle, 0, 90);
}

// Move servo smoothly without blocking the program
void servoSmoothRun() {
  static unsigned long lastStep = 0;

  if (millis() - lastStep >= 15) {
    lastStep = millis();

    if (currentPos < targetPos) currentPos++;
    else if (currentPos > targetPos) currentPos--;

    myServo.write(currentPos);
  }
}

// Short beep for authorized card
void beepShort() {
  tone(buzzerPin, 2000);
  delay(80);
  noTone(buzzerPin);
}

// Beep pattern for denied card (blocking)
void beepDenied() {
  for (int i = 0; i < 4; i++) {
    tone(buzzerPin, 1600);
    delay(100);
    noTone(buzzerPin);
    delay(100);
  }
}

// Alarm sound for emergency (non-blocking)
void beepAlarmNonBlock() {
  static unsigned long t = 0;
  static bool buz = false;

  if (millis() - t > 120) {
    t = millis();
    buz = !buz;
    if (buz) tone(buzzerPin, 1500);
    else noTone(buzzerPin);
  }
}

// Read RFID card UID
void getId() {
  uchar status, str[MAX_LEN];
  status = rfid.anticoll(str);

  if (status == MI_OK) {
    for (int i = 0; i < ID_LEN; i++) {
      userIdRead[i] = str[i];
    }
    rfid.halt();
  }
}

// Compare scanned UID with authorized UID
bool idVerify() {
  for (int i = 0; i < ID_LEN; i++) {
    if (userIdRead[i] != userId[i]) return false;
  }
  return true;
}

// Clear UID buffer after each scan
void clearBuffer() {
  for (int i = 0; i < ID_LEN; i++) {
    userIdRead[i] = 0;
  }
}

// Update LCD only when system state changes
void updateLCD() {
  if (currentState == lastState) return;

  lcd.clear();

  switch (currentState) {
    case STATE_BOOT:
      lcd.print("System Booting");
      break;

    case STATE_IDLE:
      lcd.print("System Ready");
      lcd.setCursor(0, 1);
      lcd.print("Scan Your Card");
      break;

    case STATE_ACCESS_GRANTED:
      lcd.print("Access Granted");
      lcd.setCursor(0, 1);
      lcd.print("Door Opening");
      break;

    case STATE_ACCESS_DENIED:
      lcd.print("Access Denied");
      lcd.setCursor(0, 1);
      lcd.print("Try Again");
      break;

    case STATE_EMERGENCY:
      lcd.print("Emergency");
      lcd.setCursor(0, 1);
      if (emergencyType == EM_FIRE)       lcd.print("Fire Detected!");
      else if (emergencyType == EM_SMOKE) lcd.print("Smoke Detected!");
      else if (emergencyType == EM_BOTH)  lcd.print("Fire & Smoke!");
      break;
  }

  lastState = currentState;
}

void setup() {
  Wire.begin();
  lcd.init();
  lcd.backlight();

  currentState = STATE_BOOT;
  updateLCD();
  delay(1000);

  currentState = STATE_IDLE;
  updateLCD();

  rfid.begin(7, 5, 4, 3, 6, 2);
  rfid.init();

  pinMode(buzzerPin, OUTPUT);
  pinMode(flamePin, INPUT);

  myServo.attach(servoPin);
  myServo.write(0);
}

void loop() {
  smokeValue = analogRead(smokePin);
  bool flameDetected = (digitalRead(flamePin) == LOW);

  // Determine emergency type
  if (smokeValue > smokeThreshold && flameDetected)
    emergencyType = EM_BOTH;
  else if (smokeValue > smokeThreshold)
    emergencyType = EM_SMOKE;
  else if (flameDetected)
    emergencyType = EM_FIRE;
  else
    emergencyType = EM_NONE;

  bool emergencyDetected = (emergencyType != EM_NONE);
  bool allowRFID = true;

  // Emergency handling
  if (emergencyDetected) {
    emergencyAlert = true;
    emergencyRecovering = false;

    setServoAngle(90);              // Force door open
    beepAlarmNonBlock();
    allowRFID = false;
    currentState = STATE_EMERGENCY;
  }
  else if (emergencyAlert) {
    if (!emergencyRecovering) {
      emergencyRecovering = true;
      emergencyRecoverStart = millis();
    }

    if (millis() - emergencyRecoverStart < 1500) {
      beepAlarmNonBlock();
      allowRFID = false;
    }
    else {
      emergencyAlert = false;
      emergencyRecovering = false;
      emergencyType = EM_NONE;

      setServoAngle(0);             // Start closing door
      noTone(buzzerPin);
    }
  }

  // RFID access control
  if (allowRFID && !cardAction) {
    uchar status, str[MAX_LEN];
    status = rfid.request(PICC_REQIDL, str);

    if (status == MI_OK) {
      getId();

      if (idVerify()) {
        beepShort();
        setServoAngle(90);
        cardAction = true;
        cardTimer = 0;
        currentState = STATE_ACCESS_GRANTED;
      }
      else {
        currentState = STATE_ACCESS_DENIED;
        updateLCD();                // Show message immediately
        beepDenied();               // Then beep
      }

      clearBuffer();
    }
  }

  // Auto close door after valid card
  if (cardAction) {
    if (currentPos >= 90) {
      if (cardTimer == 0) cardTimer = millis();
      if (millis() - cardTimer >= 1500) {
        setServoAngle(0);
      }
    }

    if (currentPos <= 3 && targetPos == 0) {
      cardAction = false;
      cardTimer = 0;
      currentState = STATE_IDLE;
    }
  }

  // Change LCD back to idle only after door fully closes
  if (!emergencyDetected &&
      !emergencyAlert &&
      targetPos == 0 &&
      currentPos <= 3 &&
      currentState == STATE_EMERGENCY) {

    currentState = STATE_IDLE;
  }

  servoSmoothRun();
  updateLCD();
}
