Course Introduction

In this project, you will use an Arduino board, a servo motor, IR sensor, Ultrasonic Sensor Modules, and I2C LCD 1602 to build an intelligent parking lot barrier system4.0.

The system detects vehicles with Ultrasonic Sensor Module and IR sensor, automatically controls the barrier gate, updates the car count on the LCD for safe entry and exit.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN	COMPONENT INTRODUCTION	QUANTITY	PURCHASE LINK
1	Arduino UNO R4 Minima/Arduino UNO R4 WIFI	1	BUY
2	USB Type-C cable	1
3	Breadboard	1	BUY
4	Wires	Several	BUY
5	Ultrasonic Sensor Module	1	BUY
6	Digital Servo Motor	1	BUY
7	I2C LCD 1602	1	BUY
8	IR Obstacle Avoidance Sensor Module	1	BUY

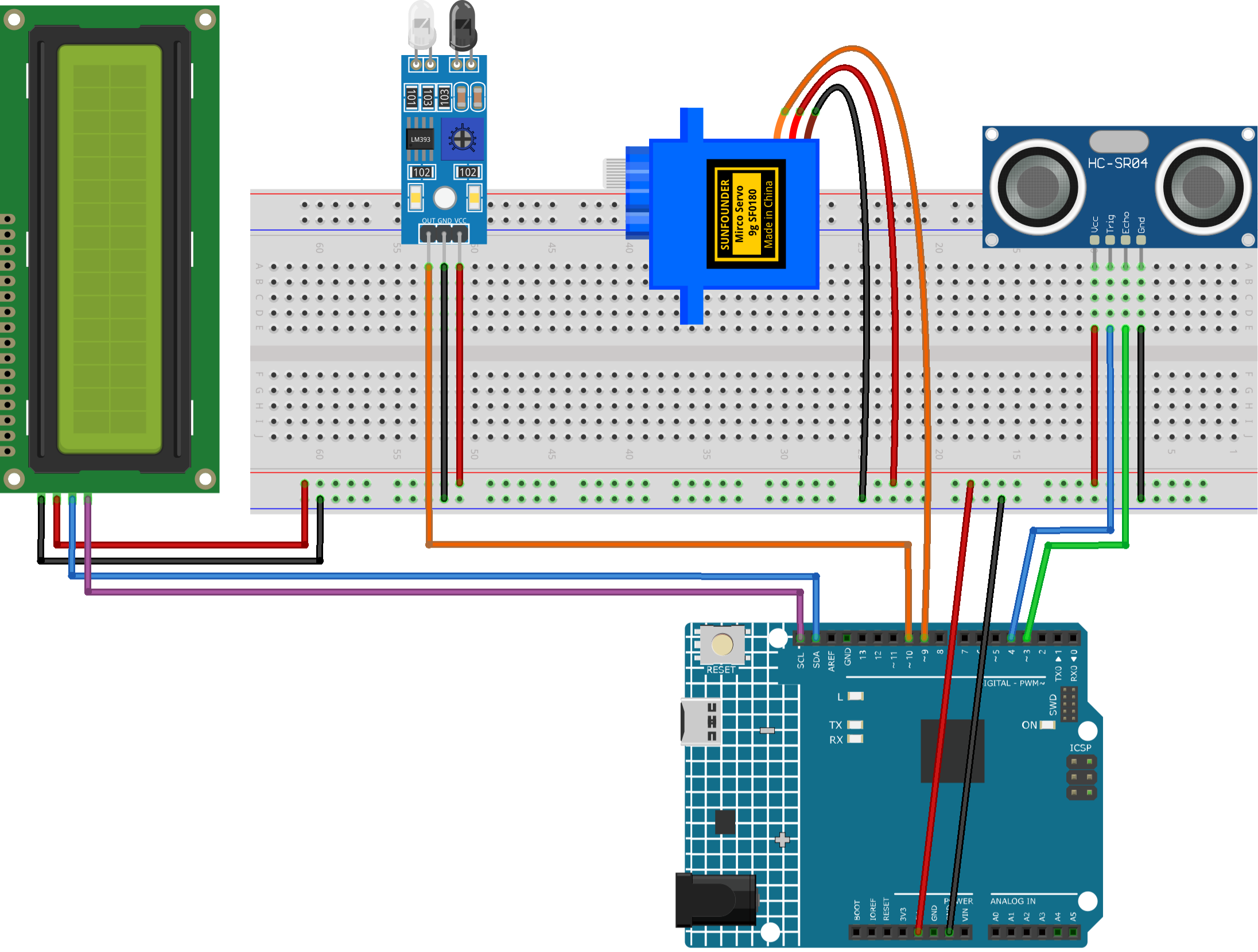

Wiring

Common Connections:

Digital Servo Motor
- Connect to breadboard’s positive power bus.
- Connect to breadboard’s negative power bus.
- Connect to 9 on the Arduino.
Ultrasonic Sensor Module Back
- Trig: Connect to 4 on the Arduino.
- Echo: Connect to 3 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
I2C LCD 1602
- SDA: Connect to SDA on the Arduino.
- SCL: Connect to SCL on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
IR Obstacle Avoidance Sensor Module
- OUT: Connect to 10 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.

Writing the Code

Note

You can copy this code into Arduino IDE.
To install the library, use the Arduino Library Manager and search for LiquidCrystal I2C and install it.
Don’t forget to select the board(Arduino UNO R4 Minima/WIFI) and the correct port before clicking the Upload button.

#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <Servo.h>

// Entrance ultrasonic sensor pins
#define TRIG1 4
#define ECHO1 3

// Exit obstacle sensor pin
#define OBSTACLE_PIN 10
#define OBSTACLE_DETECTED LOW   // Change if needed

// Servo signal pin
#define SERVO_PIN 9

LiquidCrystal_I2C lcd(0x27, 16, 2);
Servo gateServo;

// Total parking spaces
const int TOTAL_SPOTS = 3;
int availableSpots = TOTAL_SPOTS;

// Gate angles
const int GATE_CLOSE_ANGLE = 90;
const int GATE_OPEN_ANGLE  = 0;

// Gate movement speed
const int SERVO_STEP_DELAY_MS = 15;

// Gate timing delays
const int GATE_PREOPEN_DELAY_MS = 100;
const int GATE_PRECLOSE_DELAY_MS = 500;

// Car detection distance
const int DETECT_CM = 20;

// Stable detection count
const int HIT_REQUIRED = 2;

// Ultrasonic timeout
const unsigned long PULSE_TIMEOUT_US = 30000;

// Sensor read interval
const unsigned long ULTRA_INTERVAL_MS = 60;

// System states
enum State {
  IDLE,
  ENTER_PREPARE,
  ENTER_OPEN,
  ENTER_WAIT_PASS,
  EXIT_OPEN,
  EXIT_WAIT_PASS,
  WAIT_BEFORE_CLOSE,
  WAIT_CLEAR
};

State state = IDLE;

unsigned long lastUltraTime = 0;
unsigned long stateStartTime = 0;

int d1 = 999;

int hit1 = 0;
int hit2 = 0;

bool present1 = false;
bool present2 = false;

int pendingDelta = 0;

// LCD cache values
int lastSpots = -1;
String lastGateState = "";

// Read ultrasonic distance
int readDistanceCm(int trigPin, int echoPin) {
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);

  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  unsigned long duration = pulseIn(echoPin, HIGH, PULSE_TIMEOUT_US);

  if (duration == 0) return 999;

  int cm = duration / 58;
  if (cm <= 0) cm = 999;

  return cm;
}

// Update sensor detection result
void updatePresence() {
  bool raw1 = (d1 < DETECT_CM);
  bool raw2 = (digitalRead(OBSTACLE_PIN) == OBSTACLE_DETECTED);

  hit1 = raw1 ? min(hit1 + 1, HIT_REQUIRED) : 0;
  hit2 = raw2 ? min(hit2 + 1, HIT_REQUIRED) : 0;

  present1 = (hit1 >= HIT_REQUIRED);
  present2 = (hit2 >= HIT_REQUIRED);
}

// Move gate smoothly
void moveGateSlow(int targetAngle) {
  int currentAngle = gateServo.read();

  if (currentAngle < targetAngle) {
    for (int pos = currentAngle; pos <= targetAngle; pos++) {
      gateServo.write(pos);
      delay(SERVO_STEP_DELAY_MS);
    }
  } else {
    for (int pos = currentAngle; pos >= targetAngle; pos--) {
      gateServo.write(pos);
      delay(SERVO_STEP_DELAY_MS);
    }
  }
}

// Open or close gate
void setGate(bool open) {
  moveGateSlow(open ? GATE_OPEN_ANGLE : GATE_CLOSE_ANGLE);
}

// Update LCD display
void updateLCD(String gateState) {
  if (availableSpots == lastSpots && gateState == lastGateState) {
    return;
  }

  lastSpots = availableSpots;
  lastGateState = gateState;

  lcd.setCursor(0, 0);
  lcd.print("Spaces Left:    ");
  lcd.setCursor(13, 0);
  lcd.print("   ");
  lcd.setCursor(13, 0);
  lcd.print(availableSpots);

  lcd.setCursor(0, 1);
  lcd.print("Gate:           ");
  lcd.setCursor(6, 1);
  lcd.print("          ");
  lcd.setCursor(6, 1);
  lcd.print(gateState);
}

// Change parking count
void applyPendingDelta() {
  if (pendingDelta == -1) {
    if (availableSpots > 0) availableSpots--;
  }
  else if (pendingDelta == 1) {
    if (availableSpots < TOTAL_SPOTS) availableSpots++;
  }

  pendingDelta = 0;
}

void setup() {
  // Set sensor pins
  pinMode(TRIG1, OUTPUT);
  pinMode(ECHO1, INPUT);
  pinMode(OBSTACLE_PIN, INPUT);

  // Attach servo
  gateServo.attach(SERVO_PIN);
  setGate(false);

  // Start LCD
  lcd.init();
  lcd.backlight();

  updateLCD("Waiting");
}

void loop() {
  unsigned long now = millis();

  // Read sensors regularly
  if (now - lastUltraTime >= ULTRA_INTERVAL_MS) {
    lastUltraTime = now;
    d1 = readDistanceCm(TRIG1, ECHO1);
    updatePresence();
  }

  switch (state) {

    // Wait for car
    case IDLE:
      updateLCD("Waiting");

      if (present1 && !present2 && availableSpots > 0) {
        state = ENTER_PREPARE;
        stateStartTime = now;
      }
      else if (present2 && !present1) {
        state = EXIT_OPEN;
      }
      break;

    // Check before opening
    case ENTER_PREPARE:
      if (now - stateStartTime >= GATE_PREOPEN_DELAY_MS) {
        if (present1) state = ENTER_OPEN;
        else state = IDLE;
      }
      break;

    // Open for entering car
    case ENTER_OPEN:
      updateLCD("Opening");
      setGate(true);
      state = ENTER_WAIT_PASS;
      break;

    // Wait car pass gate
    case ENTER_WAIT_PASS:
      if (present2) {
        pendingDelta = -1;
        applyPendingDelta();

        state = WAIT_BEFORE_CLOSE;
        stateStartTime = now;
      }
      break;

    // Open for exiting car
    case EXIT_OPEN:
      updateLCD("Opening");
      setGate(true);
      state = EXIT_WAIT_PASS;
      break;

    // Wait leaving car pass
    case EXIT_WAIT_PASS:
      if (present1) {
        pendingDelta = 1;
        applyPendingDelta();

        state = WAIT_BEFORE_CLOSE;
        stateStartTime = now;
      }
      break;

    // Keep gate open shortly
    case WAIT_BEFORE_CLOSE:
      if (now - stateStartTime >= GATE_PRECLOSE_DELAY_MS) {
        updateLCD("Closing");
        setGate(false);
        state = WAIT_CLEAR;
      }
      break;

    // Wait area becomes clear
    case WAIT_CLEAR:
      updateLCD("Waiting");

      if (!present1 && !present2) {
        state = IDLE;
      }
      break;
  }
}
