Course Introduction

In this project, you will use an Arduino board, a servo motor, IR sensors, and a traffic light module to build an intelligent parking lot barrier system.

The system detects vehicles with IR sensors, automatically controls the barrier gate, updates the car count on the LCD, and manages the traffic light for safe entry and exit.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN	COMPONENT INTRODUCTION	QUANTITY	PURCHASE LINK
1	Arduino UNO R4 Minima/Arduino UNO R4 WIFI	1	BUY
2	USB Type-C cable	1
3	Breadboard	1	BUY
4	Wires	Several	BUY
5	IR Obstacle Avoidance Sensor Module	2	BUY
6	Digital Servo Motor	1	BUY
7	I2C LCD 1602	1	BUY
8	Traffic Light LED	1	BUY

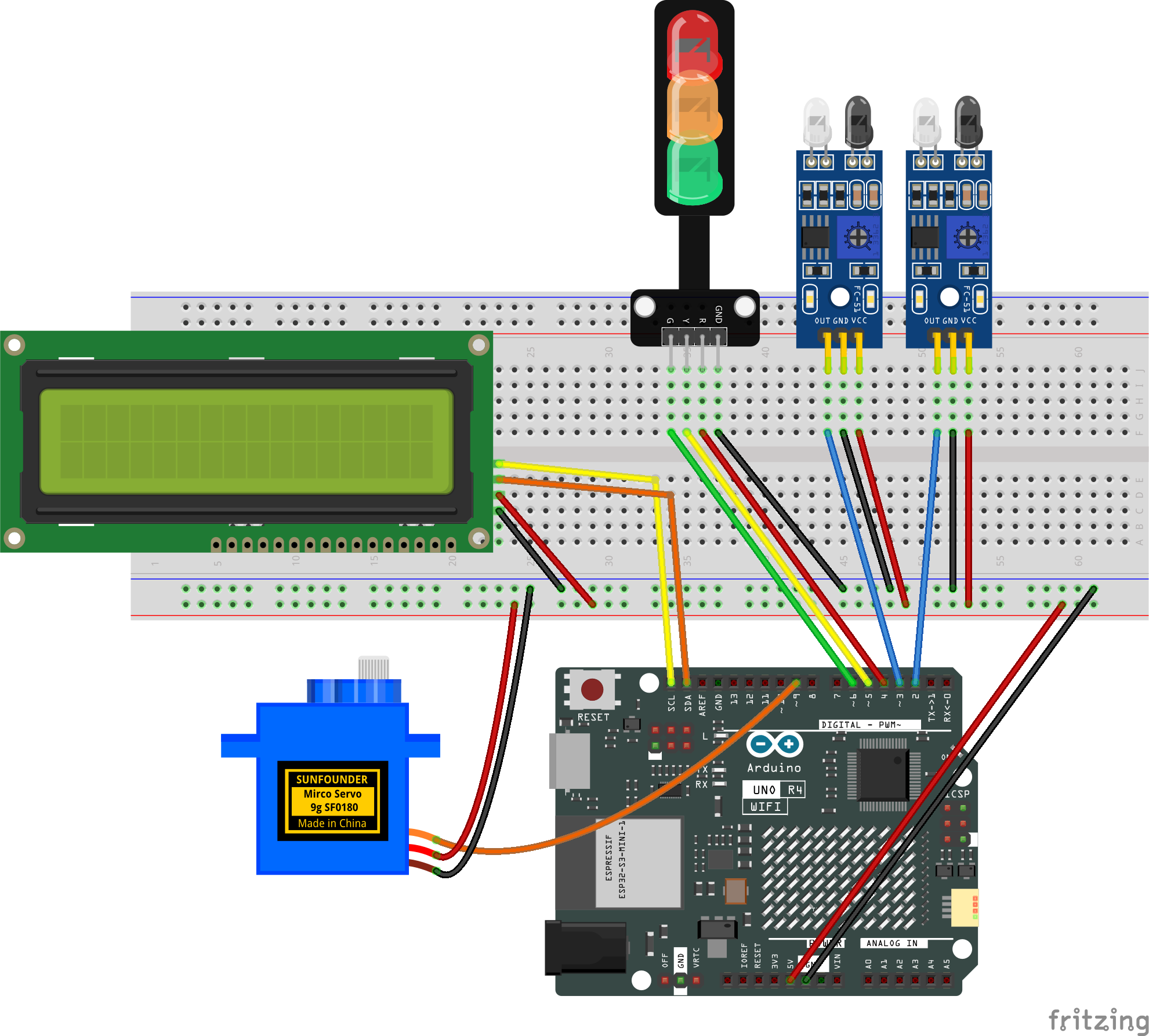

Wiring

Common Connections:

Traffic light LED
- R: Connect to 4 on the Arduino.
- Y: Connect to 5 on the Arduino.
- G: Connect to 6 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
Digital Servo Motor
- Connect to breadboard’s positive power bus.
- Connect to breadboard’s negative power bus.
- Connect to 9 on the Arduino.
IR Obstacle Avoidance Sensor Module 1
- OUT: Connect to 2 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
IR Obstacle Avoidance Sensor Module 2
- OUT: Connect to 3 on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.
I2C LCD 1602
- SDA: Connect to SDA on the Arduino.
- SCL: Connect to SCL on the Arduino.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to breadboard’s red power bus.

Writing the Code

Note

You can copy this code into Arduino IDE.
To install the library, use the Arduino Library Manager and search for LiquidCrystal I2C and install it.
Don’t forget to select the board(Arduino UNO R4 Minima/WIFI) and the correct port before clicking the Upload button.

#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <Servo.h>

// LCD setup
LiquidCrystal_I2C lcd(0x27, 16, 2);

// Servo setup
Servo gateServo;
const int SERVO_PIN = 9;

// IR sensor pins
const int IR1_PIN = 2;
const int IR2_PIN = 3;

// Traffic light module pins
const int RED_PIN = 4;
const int YELLOW_PIN = 5;
const int GREEN_PIN = 6;

// Status variable
int carCount = 2;

enum State {
  IDLE,
  ENTER_WAIT_YELLOW,    // Detected at entrance, yellow light blinking
  ENTER_WAIT_GREEN,     // Raise barrier, green light
  ENTER_WAIT_EXIT,      // Waiting for IR2 to count
  EXIT_WAIT_YELLOW,     // Detected at exit, yellow light blinking
  EXIT_WAIT_GREEN,      // Raise barrier, green light
  EXIT_WAIT_EXIT        // Waiting for IR1 to count
};

State state = IDLE;

// Timing variables
unsigned long stateStartTime = 0;
const unsigned long YELLOW_BLINK_TIME = 2000;
const unsigned long GREEN_TIME = 1000;
bool yellowBlinkState = false;
unsigned long lastBlinkTime = 0;
const unsigned long BLINK_INTERVAL = 300;

void setup() {
  // LCD
  lcd.init();
  lcd.backlight();
  lcd.setCursor(0, 0);
  lcd.print("Parking Lot");
  lcd.setCursor(0, 1);
  lcd.print("Car Count: ");
  lcd.print(carCount);

  // Servo
  gateServo.attach(SERVO_PIN);
  gateServo.write(0); // Initial down

  // IR sensors
  pinMode(IR1_PIN, INPUT);
  pinMode(IR2_PIN, INPUT);

  // Traffic light
  pinMode(RED_PIN, OUTPUT);
  pinMode(YELLOW_PIN, OUTPUT);
  pinMode(GREEN_PIN, OUTPUT);
  setTrafficLight('R');
}

void loop() {
  bool ir1State = digitalRead(IR1_PIN) == LOW;
  bool ir2State = digitalRead(IR2_PIN) == LOW;
  unsigned long now = millis();

  switch(state) {
    case IDLE:
      setTrafficLight('R');
      gateServo.write(0); // Down
      // Detect entry
      if (ir1State) {
        state = ENTER_WAIT_YELLOW;
        stateStartTime = now;
        lastBlinkTime = now;
        yellowBlinkState = false;
      }
      // Detect exit
      else if (ir2State) {
        state = EXIT_WAIT_YELLOW;
        stateStartTime = now;
        lastBlinkTime = now;
        yellowBlinkState = false;
      }
      break;

    case ENTER_WAIT_YELLOW:
      // Non-blocking yellow light blinking
      if (now - lastBlinkTime > BLINK_INTERVAL) {
        yellowBlinkState = !yellowBlinkState;
        digitalWrite(YELLOW_PIN, yellowBlinkState ? HIGH : LOW);
        lastBlinkTime = now;
      }
      if (now - stateStartTime > YELLOW_BLINK_TIME) {
        digitalWrite(YELLOW_PIN, LOW);
        setTrafficLight('G');
        gateServo.write(90); // Raise barrier
        state = ENTER_WAIT_GREEN;
        stateStartTime = now;
      }
      break;

    case ENTER_WAIT_GREEN:
      // Allow car to pass during green light
      if (now - stateStartTime > GREEN_TIME) {
        // Wait for IR2 detection (car passes IR2 to count)
        state = ENTER_WAIT_EXIT;
      }
      break;

    case ENTER_WAIT_EXIT:
      // Count only after IR2 is detected
      if (ir2State) {
        carCount++;
        updateLCD();
        setTrafficLight('R');
        gateServo.write(0); // Barrier down
        state = IDLE;
        // Wait for IR2 to be released before allowing next entry
        while (digitalRead(IR2_PIN) == LOW) { delay(10); }
      }
      break;

    case EXIT_WAIT_YELLOW:
      if (now - lastBlinkTime > BLINK_INTERVAL) {
        yellowBlinkState = !yellowBlinkState;
        digitalWrite(YELLOW_PIN, yellowBlinkState ? HIGH : LOW);
        lastBlinkTime = now;
      }
      if (now - stateStartTime > YELLOW_BLINK_TIME) {
        digitalWrite(YELLOW_PIN, LOW);
        setTrafficLight('G');
        gateServo.write(90); // Raise barrier
        state = EXIT_WAIT_GREEN;
        stateStartTime = now;
      }
      break;

    case EXIT_WAIT_GREEN:
      if (now - stateStartTime > GREEN_TIME) {
        state = EXIT_WAIT_EXIT;
      }
      break;

    case EXIT_WAIT_EXIT:
      // Count only after IR1 is detected
      if (ir1State) {
        if (carCount > 0) carCount--;
        updateLCD();
        setTrafficLight('R');
        gateServo.write(0); // Barrier down
        state = IDLE;
        // Wait for IR1 to be released before allowing next exit
        while (digitalRead(IR1_PIN) == LOW) { delay(10); }
      }
      break;
  }
}

// Traffic light control
void setTrafficLight(char color) {
  switch (color) {
    case 'R':
      digitalWrite(RED_PIN, HIGH);
      digitalWrite(YELLOW_PIN, LOW);
      digitalWrite(GREEN_PIN, LOW);
      break;
    case 'Y':
      digitalWrite(RED_PIN, LOW);
      digitalWrite(YELLOW_PIN, HIGH);
      digitalWrite(GREEN_PIN, LOW);
      break;
    case 'G':
      digitalWrite(RED_PIN, LOW);
      digitalWrite(YELLOW_PIN, LOW);
      digitalWrite(GREEN_PIN, HIGH);
      break;
  }
}

// Update LCD display
void updateLCD() {
  lcd.setCursor(0, 1);
  lcd.print("Car Count:    ");
  lcd.setCursor(11, 1);
  lcd.print(carCount);
}
