Course Introduction

This Arduino project uses Arduino IoT Remote to control Traffic Light.

Required Components

In this project, we need the following components:

SN

COMPONENT INTRODUCTION

QUANTITY

PURCHASE LINK

1

Arduino UNO R4 WIFI

1

BUY

2

USB Type-C cable

1

3

Breadboard

1

BUY

4

Wires

Several

BUY

5

Traffic Light LED

1

BUY

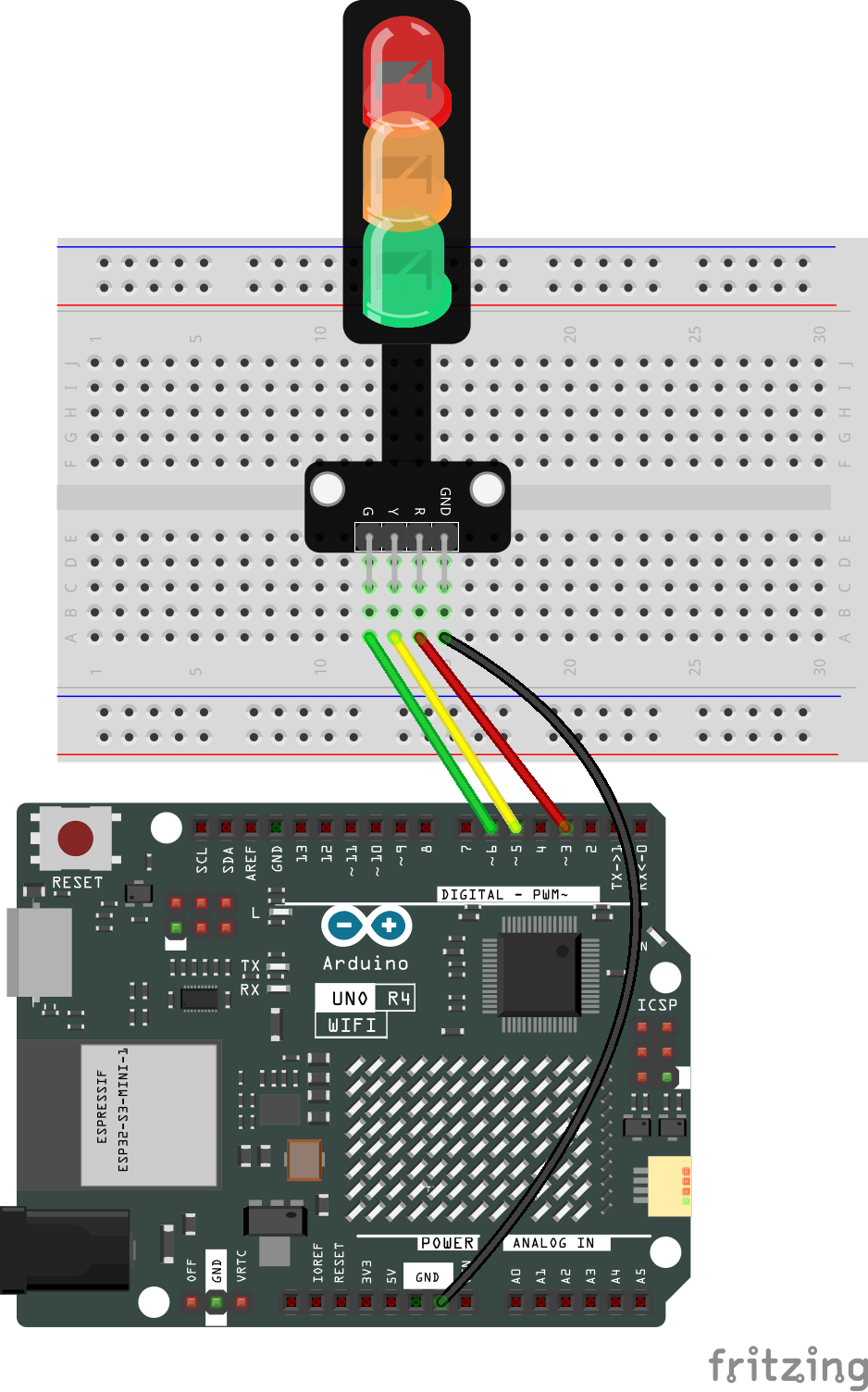

Wiring

../_images/traffic_light_iot.png

Common Connections:

  • Traffic light LED

    • R: Connect to 3 on the Arduino.

    • Y: Connect to 5 on the Arduino.

    • G: Connect to 6 on the Arduino.

    • GND: Connect to breadboard’s negative power bus.

Note

If this is your first time working with an Arduino IOT project, we recommend downloading and reviewing the basic materials first.

Please follow the steps in the tutorial below to complete the binding and setup of Arduino Cloud and the Arduino WiFi board.

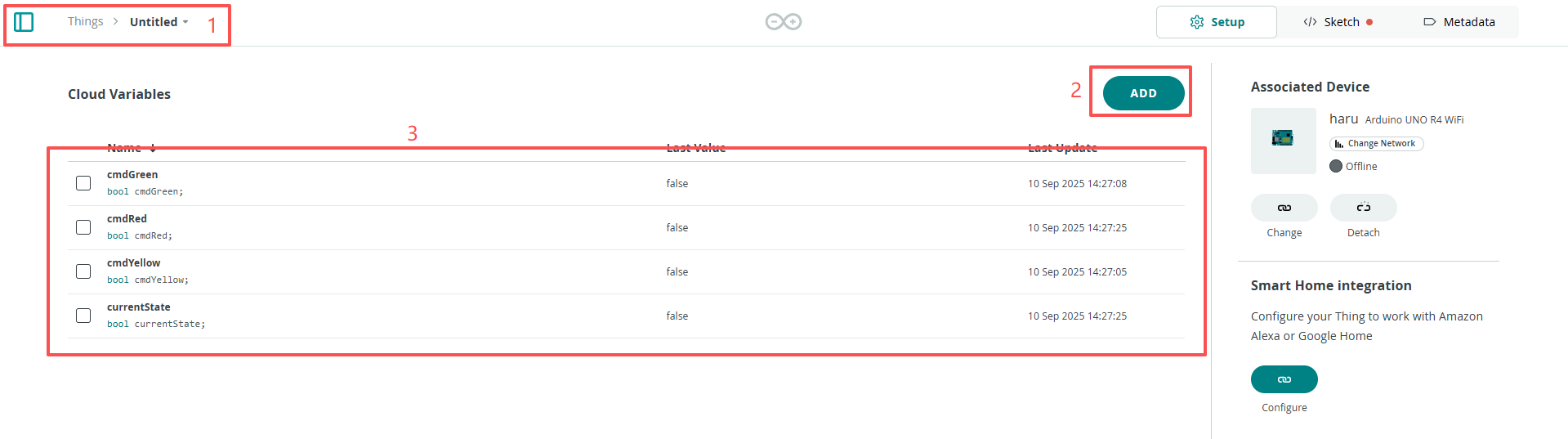

Create a New IoT Project

After configuring the Arduino Cloud and the Arduino WiFi board, follow the steps below to complete the Arduino Cloud project setup

../_images/traffic_light_step1.png

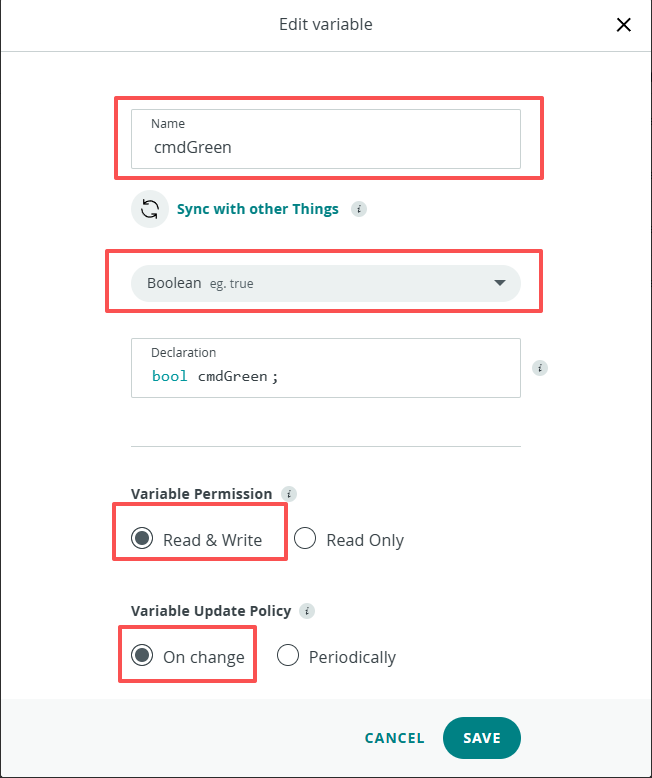

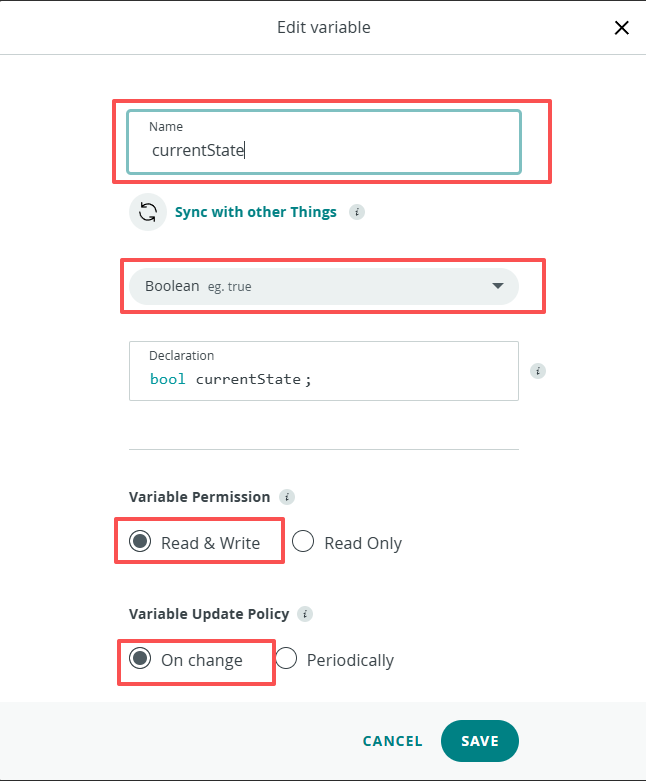

Edit Value (4Variables:cmdGreen,cmdYellow,cmdRed,currentState)

Follow the steps below to configure the dashboard.

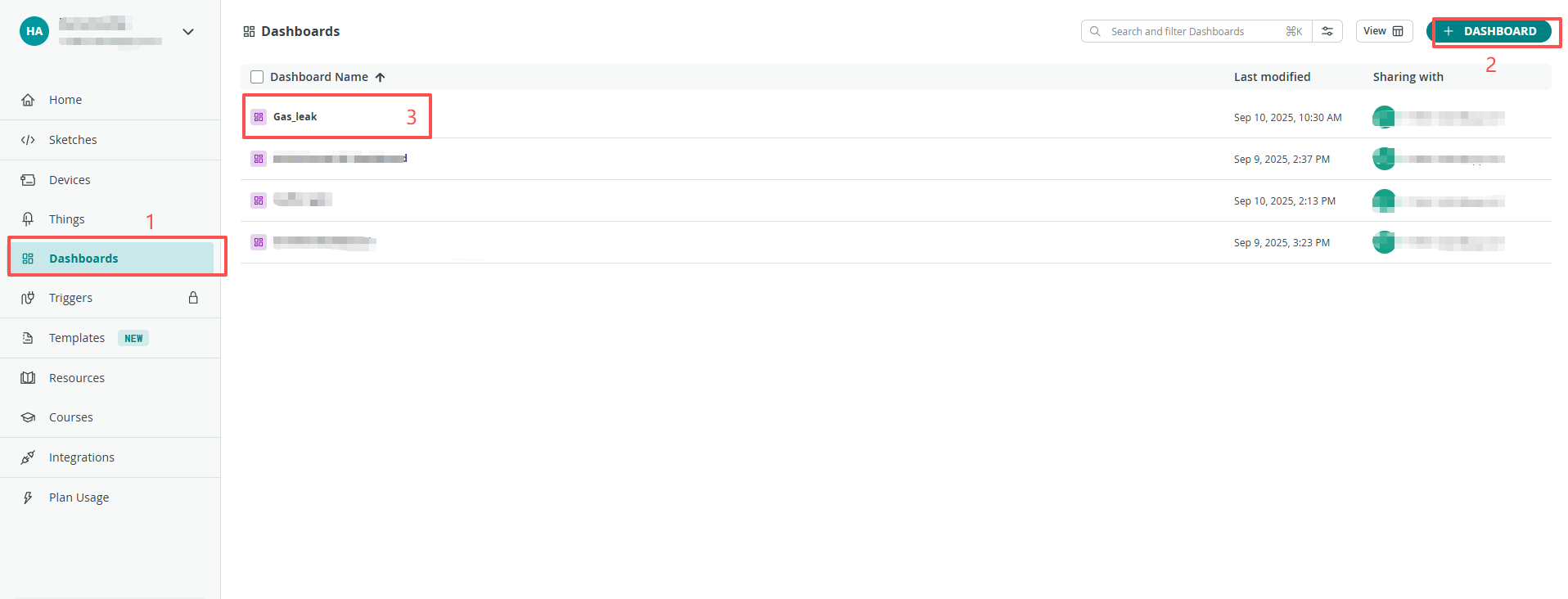

  1. Create New Dashboard

../_images/dashboard_step.png

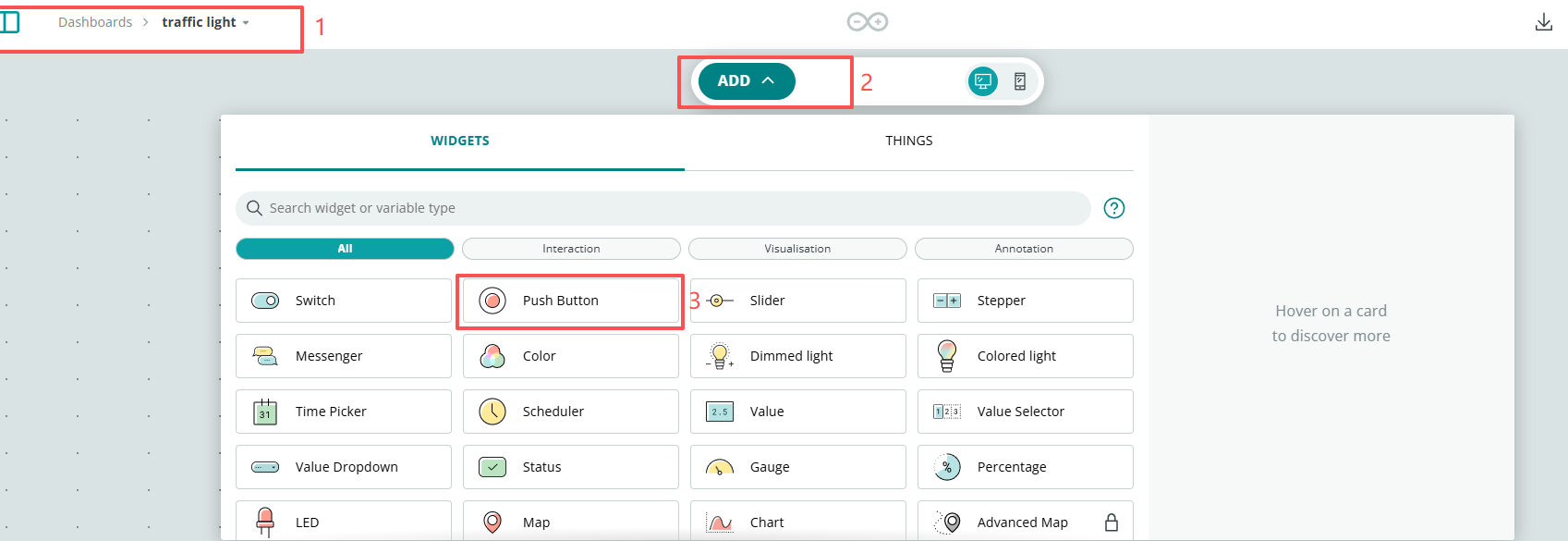

  1. Add Widgets

../_images/dashboard_light.png

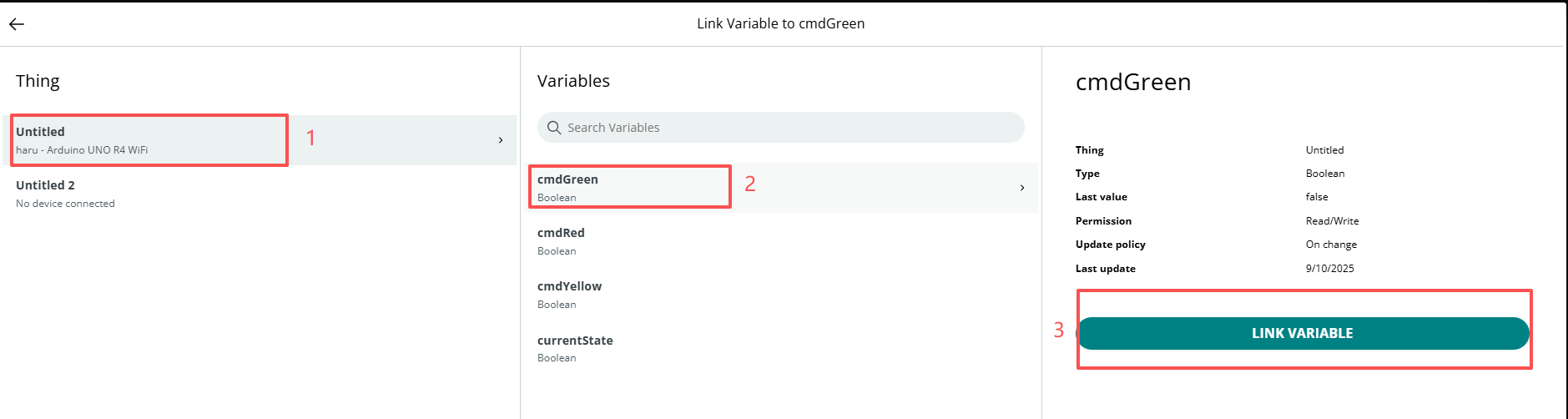

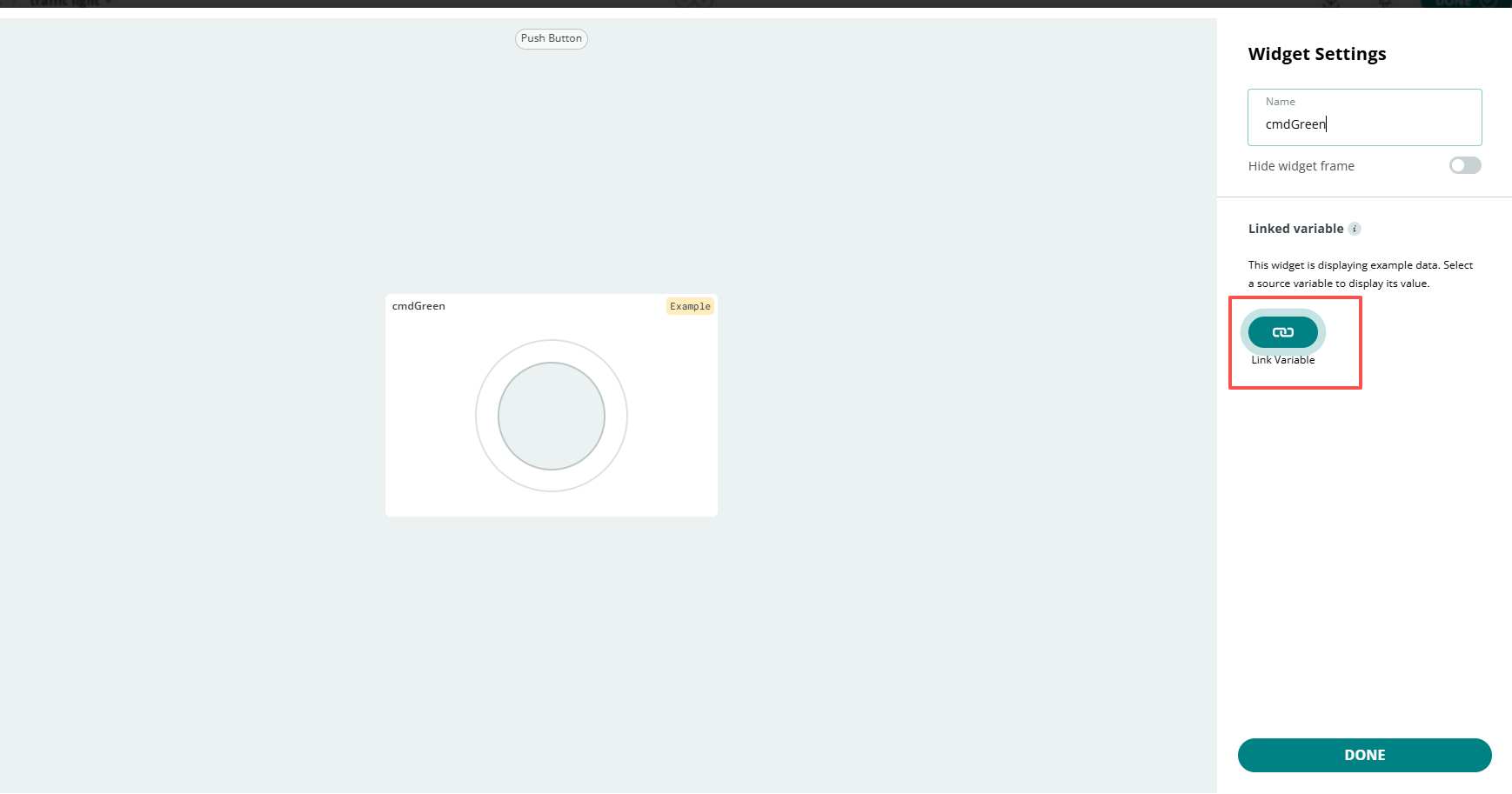

  1. Link Variable

../_images/link_variable_light1.png ../_images/link_variable_light2.png

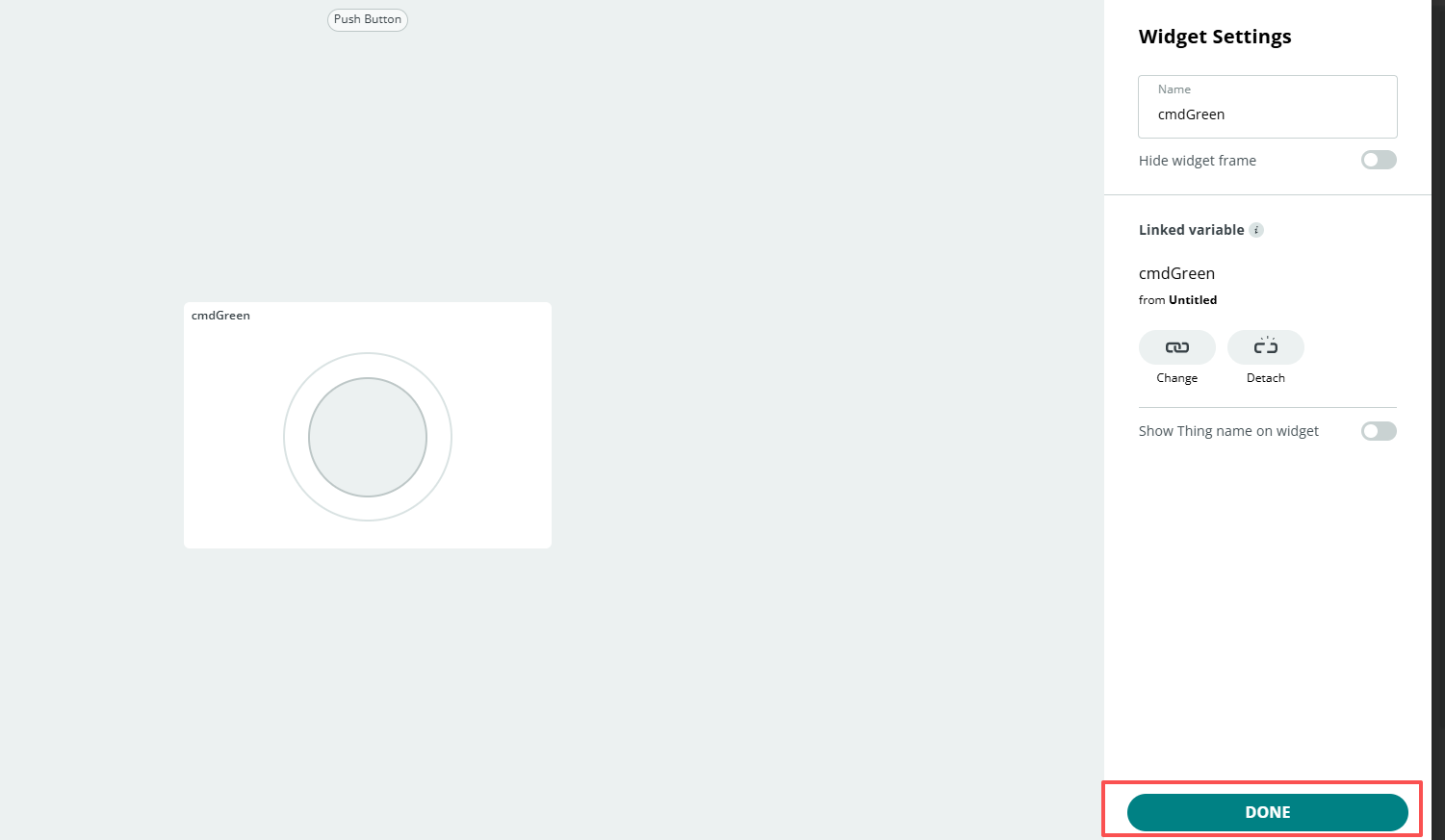

  1. Remember to click Done

../_images/click_done.png

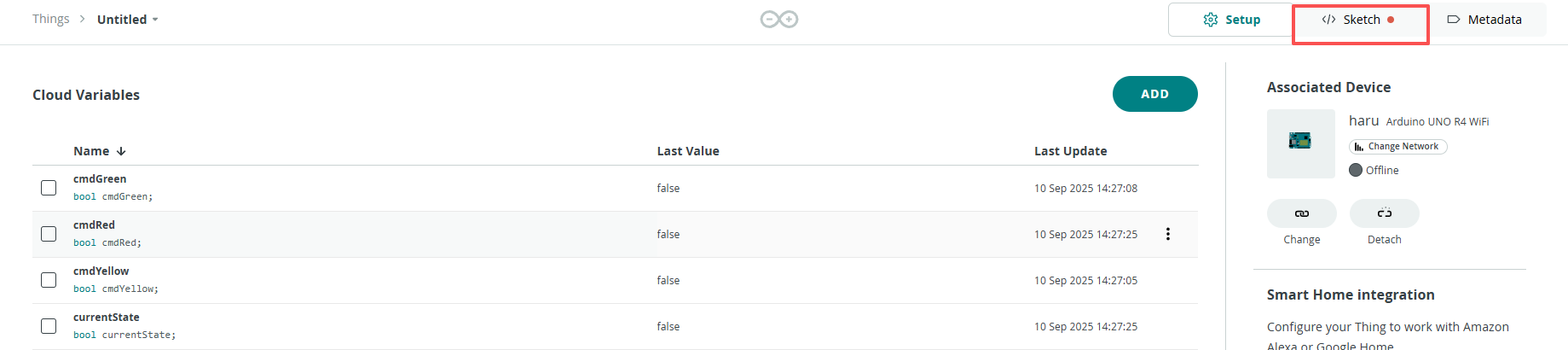

After completing the above configuration, return to the Things page and open the sketch.

../_images/sketch.png

When you have completed the configuration of the Things and Dashboard, as well as the connection and network setup of the Arduino WiFi board, the thingProperties.h and Sketch Secrets files will be generated automatically. If Sketch Secrets is not generated, please manually enter the connected SSID and OPTIONAL_PASS

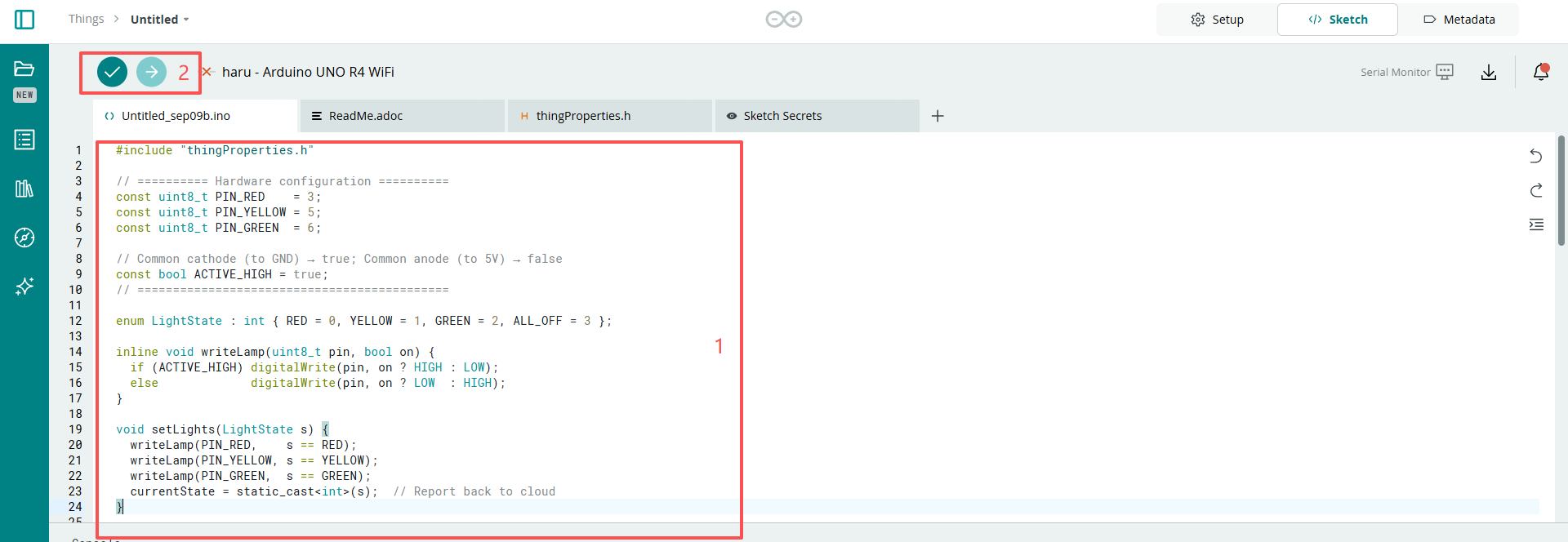

Copy this code into Arduino Cloud.

../_images/light_code.png

Don’t forget to select the board(Arduino UNO R4 WIFI) and the correct port before clicking the Upload button.

#include "thingProperties.h"

// ========== Hardware configuration ==========
const uint8_t PIN_RED    = 3;
const uint8_t PIN_YELLOW = 5;
const uint8_t PIN_GREEN  = 6;

// Common cathode (to GND) → true; Common anode (to 5V) → false
const bool ACTIVE_HIGH = true;
// ============================================

enum LightState : int { RED = 0, YELLOW = 1, GREEN = 2, ALL_OFF = 3 };

inline void writeLamp(uint8_t pin, bool on) {
  if (ACTIVE_HIGH) digitalWrite(pin, on ? HIGH : LOW);
  else             digitalWrite(pin, on ? LOW  : HIGH);
}

void setLights(LightState s) {
  writeLamp(PIN_RED,    s == RED);
  writeLamp(PIN_YELLOW, s == YELLOW);
  writeLamp(PIN_GREEN,  s == GREEN);
  currentState = static_cast<int>(s);  // Report back to cloud
}

void setup() {
  Serial.begin(115200);
  pinMode(PIN_RED, OUTPUT);
  pinMode(PIN_YELLOW, OUTPUT);
  pinMode(PIN_GREEN, OUTPUT);

  // Turn all off at startup
  setLights(ALL_OFF);

  // Connect to IoT Cloud
  initProperties();
  ArduinoCloud.begin(ArduinoIoTPreferredConnection);
  setDebugMessageLevel(2);
  ArduinoCloud.printDebugInfo();
}

void loop() {
  ArduinoCloud.update();
}

// ========== Cloud button callbacks ==========
void onCmdRedChange() {
  if (cmdRed) {
    setLights(RED);
    // Reset all three buttons to avoid keeping them “on” in the dashboard
    cmdRed = false; cmdYellow = false; cmdGreen = false;
  }
}

void onCmdYellowChange() {
  if (cmdYellow) {
    setLights(YELLOW);
    cmdRed = false; cmdYellow = false; cmdGreen = false;
  }
}

void onCmdGreenChange() {
  if (cmdGreen) {
    setLights(GREEN);
    cmdRed = false; cmdYellow = false; cmdGreen = false;
  }
}

/*
  Since Angle3 is READ_WRITE variable, onAngle3Change() is
  executed every time a new value is received from IoT Cloud.
*/
void onAngle3Change()  {
  // Add your code here to act upon Angle3 change
}
/*
  Since CurrentState is READ_WRITE variable, onCurrentStateChange() is
  executed every time a new value is received from IoT Cloud.
*/
void onCurrentStateChange()  {
  // Add your code here to act upon CurrentState change
}
