Course Introduction

In this lesson, we’ll build a basic parking assistance system (v2.0) using an Ultrasonic Sensor Module, MAX7219 Dot Matrix Module, and a passive buzzer Module with Arduino board.

As an obstacle moves closer to the sensor, the buzzer will sound increasingly faster, and the dot matrix display will show both the approximate distance and a visual representation of the approaching object.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN

COMPONENT INTRODUCTION

QUANTITY

PURCHASE LINK

1

Arduino UNO R4 Minima/Arduino UNO R4 WIFI

1

BUY

2

USB Type-C cable

1

3

Breadboard

1

BUY

4

Wires

Several

BUY

5

Ultrasonic Sensor Module

1

BUY

6

MAX7219 Dot Matrix Module

1

BUY

7

Alarm Sound Module

1

BUY

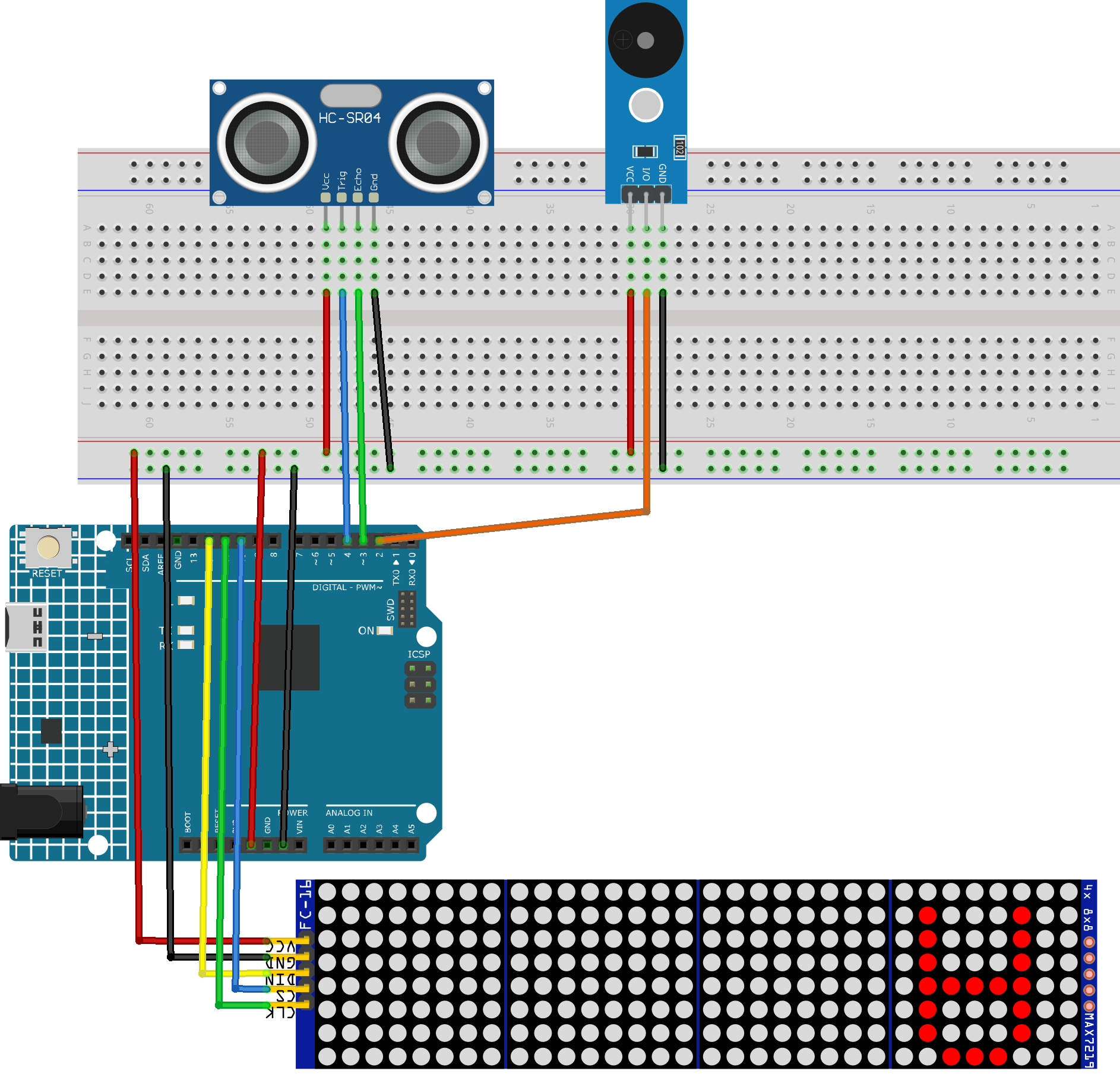

Wiring

../_images/Parking_Sensor_2.0_bb.png

Common Connections:

  • Passive Buzzer Module

    • VCC: Connect to breadboard’s red power bus.

    • I/O: Connect to 2 on the Arduino.

    • GND: Connect to breadboard’s negative power bus.

  • MAX7219 Dot Matrix Module

    • CLK: Connect to 11 on the Arduino.

    • CS: Connect to 10 on the Arduino.

    • DIN: Connect to 12 on the Arduino.

    • GND: Connect to breadboard’s negative power bus.

    • VCC: Connect to breadboard’s red power bus.

  • Ultrasonic Sensor Module

    • Trig: Connect to 4 on the Arduino.

    • Echo: Connect to 3 on the Arduino.

    • GND: Connect to breadboard’s negative power bus.

    • VCC: Connect to breadboard’s red power bus.

Writing the Code

Note

  • You can copy this code into Arduino IDE.

  • To install the library, use the Arduino Library Manager and search for LedControl and install it.

  • Don’t forget to select the board(Arduino UNO R4 WIFI) and the correct port before clicking the Upload button.

#include "LedControl.h"

// Initialize the LedControl object for 4 connected modules
LedControl lc = LedControl(12, 11, 10, 4);

// Define pins
const int echoPin   = 3;  // Echo pin for the ultrasonic sensor
const int trigPin   = 4;  // Trigger pin for the ultrasonic sensor
const int buzzerPin = 2;  // Buzzer pin

// Beep control variables
unsigned long beepInterval = 0;    // current on/off interval (ms)
unsigned long lastBeepTime  = 0;   // last toggle timestamp
bool         isBeepOn       = false;

// 8×8 dot-matrix representations of digits 0–9
byte numbers[10][8] = {
  {0x3C,0x42,0x42,0x42,0x42,0x42,0x42,0x3C}, // 0
  {0x08,0x18,0x38,0x08,0x08,0x08,0x08,0x7E}, // 1
  {0x3C,0x42,0x40,0x20,0x10,0x08,0x04,0x7E}, // 2
  {0x3C,0x42,0x40,0x30,0x40,0x40,0x42,0x3C}, // 3
  {0x20,0x30,0x28,0x24,0x7E,0x20,0x20,0x20}, // 4
  {0x7E,0x02,0x1E,0x20,0x40,0x40,0x42,0x3C}, // 5
  {0x3C,0x02,0x02,0x1E,0x22,0x42,0x42,0x3C}, // 6
  {0x7E,0x40,0x20,0x10,0x08,0x08,0x08,0x08}, // 7
  {0x3C,0x42,0x42,0x3C,0x42,0x42,0x42,0x3C}, // 8
  {0x3C,0x42,0x42,0x3C,0x40,0x40,0x40,0x3C}  // 9
};

unsigned long lastMeasurementTime = 0;
const int measurementInterval     = 400;  // ms between distance readings
const int animationInterval       = 40;   // ms between animation frames
unsigned long lastAnimationTime   = 0;
int targetColumnsLit              = 0;
int currentCol                    = 0;

void setup() {
  Serial.begin(9600);
  pinMode(echoPin, INPUT);
  pinMode(trigPin, OUTPUT);
  pinMode(buzzerPin, OUTPUT);

  // Initialize all LED modules
  for (int i = 0; i < 4; i++) {
    lc.shutdown(i, false);
    lc.setIntensity(i, 8);
    lc.clearDisplay(i);
  }
}

void loop() {
  // 1. Measure distance at fixed intervals
  if (millis() - lastMeasurementTime >= measurementInterval) {
    lastMeasurementTime = millis();
    float distance = readDistance();
    Serial.print("Distance: ");
    Serial.print(distance);
    Serial.println(" cm");

    // Display the distance (0–99 cm) on modules 2 & 3
    int displayValue = constrain((int)distance, 0, 99);
    displayNumber(displayValue);

    // Compute how many columns to light for the bar graph
    targetColumnsLit = calculateColumnsToLight(distance);

    // Update the beep on/off interval based on distance
    updateBeepInterval(distance);
  }

  // 2. Animate the bar-graph on modules 0 & 1
  updateAnimation();

  // 3. Toggle buzzer on/off according to the current beep interval
  updateBeep();
}

// --- Distance measurement ---
float readDistance() {
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);
  float duration = pulseIn(echoPin, HIGH);
  float distance = duration / 58.0;          // cm
  return (distance > 400 ? 400.0 : distance);
}

// --- Buzzer control ---
void updateBeepInterval(float distance) {
  if (distance < 6) {
    beepInterval = 100;   // Fast beep
  } else if (distance < 12) {
    beepInterval = 300;   // Medium beep
  } else if (distance < 20) {
    beepInterval = 500;   // Slow beep
  } else {
    // Disable beep when distance ≥ 20 cm
    beepInterval = 0;
    noTone(buzzerPin);
    isBeepOn = false;
  }
}

void updateBeep() {
  if (beepInterval == 0) return;
  unsigned long now = millis();
  if (now - lastBeepTime >= beepInterval) {
    lastBeepTime = now;
    if (isBeepOn) {
      noTone(buzzerPin);
    } else {
      tone(buzzerPin, 1000);  // 1 kHz tone
    }
    isBeepOn = !isBeepOn;
  }
}

// --- 2-digit display on modules 2 & 3 ---
void displayNumber(int number) {
  lc.clearDisplay(2);
  lc.clearDisplay(3);
  if (number < 10) {
    displayDigit(2, number);
  } else {
    displayDigit(2, number % 10);  // units
    displayDigit(3, number / 10);  // tens
  }
}

void displayDigit(int module, int digit) {
  for (int row = 0; row < 8; row++) {
    byte pattern = numbers[digit][row];
    if (needsMirror(digit)) {
      pattern = reverseByte(pattern);
    }
    lc.setRow(module, row, pattern);
  }
}

bool needsMirror(int digit) {
  // Mirror 2, 3, 4, 5, 6, 7, 9 for correct orientation
  return (digit == 2 || digit == 3 || digit == 4 ||
          digit == 5 || digit == 6 || digit == 7 ||
          digit == 9);
}

byte reverseByte(byte b) {
  b = (b & 0xF0) >> 4 | (b & 0x0F) << 4;
  b = (b & 0xCC) >> 2 | (b & 0x33) << 2;
  b = (b & 0xAA) >> 1 | (b & 0x55) << 1;
  return b;
}

// --- Bar-graph animation on modules 0 & 1 ---
int calculateColumnsToLight(float distance) {
  // Map 0–21 cm to 0–18 columns, then constrain to 0–16
  return constrain(map(distance, 21, 0, 0, 18), 0, 16);
}

void updateAnimation() {
  if (millis() - lastAnimationTime >= animationInterval) {
    lastAnimationTime = millis();
    if (currentCol < targetColumnsLit) {
      lightUpColumn(currentCol, true);
      currentCol++;
    } else if (currentCol > targetColumnsLit) {
      currentCol--;
      lightUpColumn(currentCol, false);
    }
  }
}

void lightUpColumn(int col, bool state) {
  int matrixIndex = 1 - (col / 8);  // use modules 1 then 0
  int colIndex     = col % 8;
  for (int row = 0; row < (col / 2) + 1; row++) {
    // draw from bottom up
    lc.setLed(matrixIndex, 7 - row, colIndex, state);
  }
}
