Course Introduction

In this lesson, you’ll use an OLED display, input controls, and a game manager system with Arduino to create a retro-style arcade game.

Players interact through button inputs to control on-screen actions, while the game manager updates the gameplay at ~60 FPS. The system includes an intro screen, high-score tracking, and smooth frame rendering for an engaging experience.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN

COMPONENT INTRODUCTION

QUANTITY

PURCHASE LINK

1

Arduino UNO R4 WIFI

1

BUY

2

USB Type-C cable

1

3

Breadboard

1

BUY

4

Wires

Several

BUY

5

Button

4

BUY

6

OLED Display Module

1

BUY

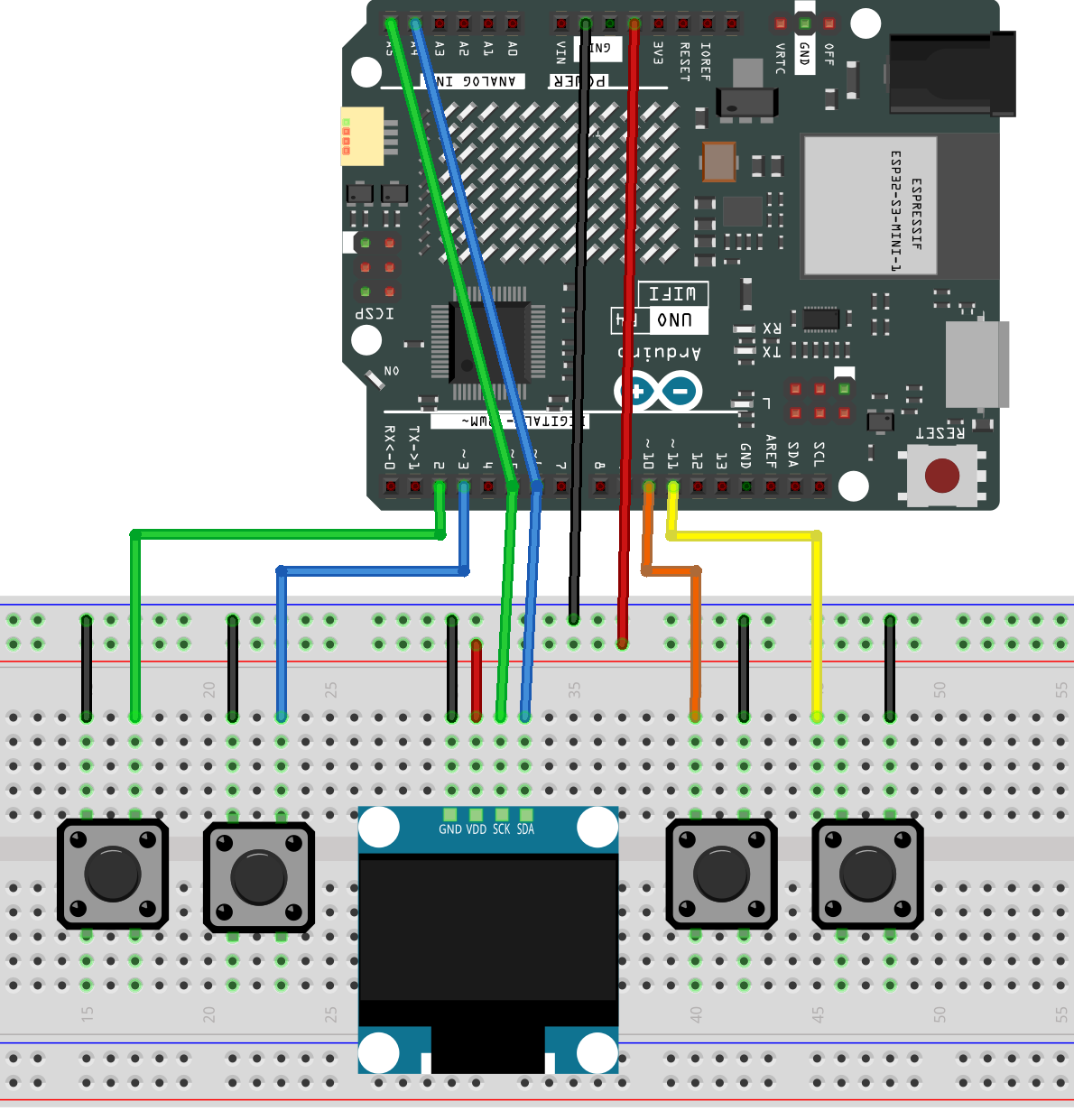

Wiring

../_images/Pocket_Arcade.png

Common Connections:

  • OLED Display Module

    • SDA: Connect to A4 on the Arduino.

    • SCK: Connect to A5 on the Arduino.

    • GND: Connect to breadboard’s negative power bus.

    • VCC: Connect to breadboard’s red power bus.

  • Button

    • button1: Connect to the breadboard’s negative power bus, and the other end to 2 on the Arduino board.

    • button2: Connect to the breadboard’s negative power bus, and the other end to 3 on the Arduino board.

    • button3: Connect to the breadboard’s negative power bus, and the other end to 10 on the Arduino board.

    • button4: Connect to the breadboard’s negative power bus, and the other end to 11 on the Arduino board.

Writing the Code

Note

  • You can copy this code into Arduino IDE.

  • Use the C code Pocket_Arcade . You can click here Pocket_Arcade.zip to download it.

  • To install the library, use the Arduino Library Manager and search for config and display and gamemanager and highscore and install it.

  • Don’t forget to select the board(Arduino UNO R4 WIFI) and the correct port before clicking the Upload button.

// GameSystem.ino - Hack_updt
#include "config.h"
#include "display.h"
#include "input.h"
#include "gamemanager.h"
#include "highscore.h"


void intro(){
  display.clearDisplay();
  display.drawBitmap(0, 0, epd_bitmap_Intro, 128, 64, 1);
  display.display();
}
void setup() {
  Serial.begin(115200);
  initDisplay();
  intro();
  delay(12000);
  initInput();
  initHighscores();
  initGameManager();
}

void loop() {

  updateInput();
  updateGameManager();
  delay(16); // ~60 FPS
}
