Course Introduction
This Arduino project uses MAX7219 8x8 Dot Matrix module, Joystick Module, buzzer to play a classic Tetris game.
Note
If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.
Required Components
In this project, we need the following components:
SN |
COMPONENT INTRODUCTION |
QUANTITY |
PURCHASE LINK |
|---|---|---|---|
1 |
Arduino UNO R4 WIFI |
1 |
|
2 |
USB Type-C cable |
1 |
|
3 |
Breadboard |
1 |
|
4 |
Wires |
Several |
|
5 |
Joystick Module |
1 |
|
6 |
MAX7219 Dot Matrix Module |
1 |

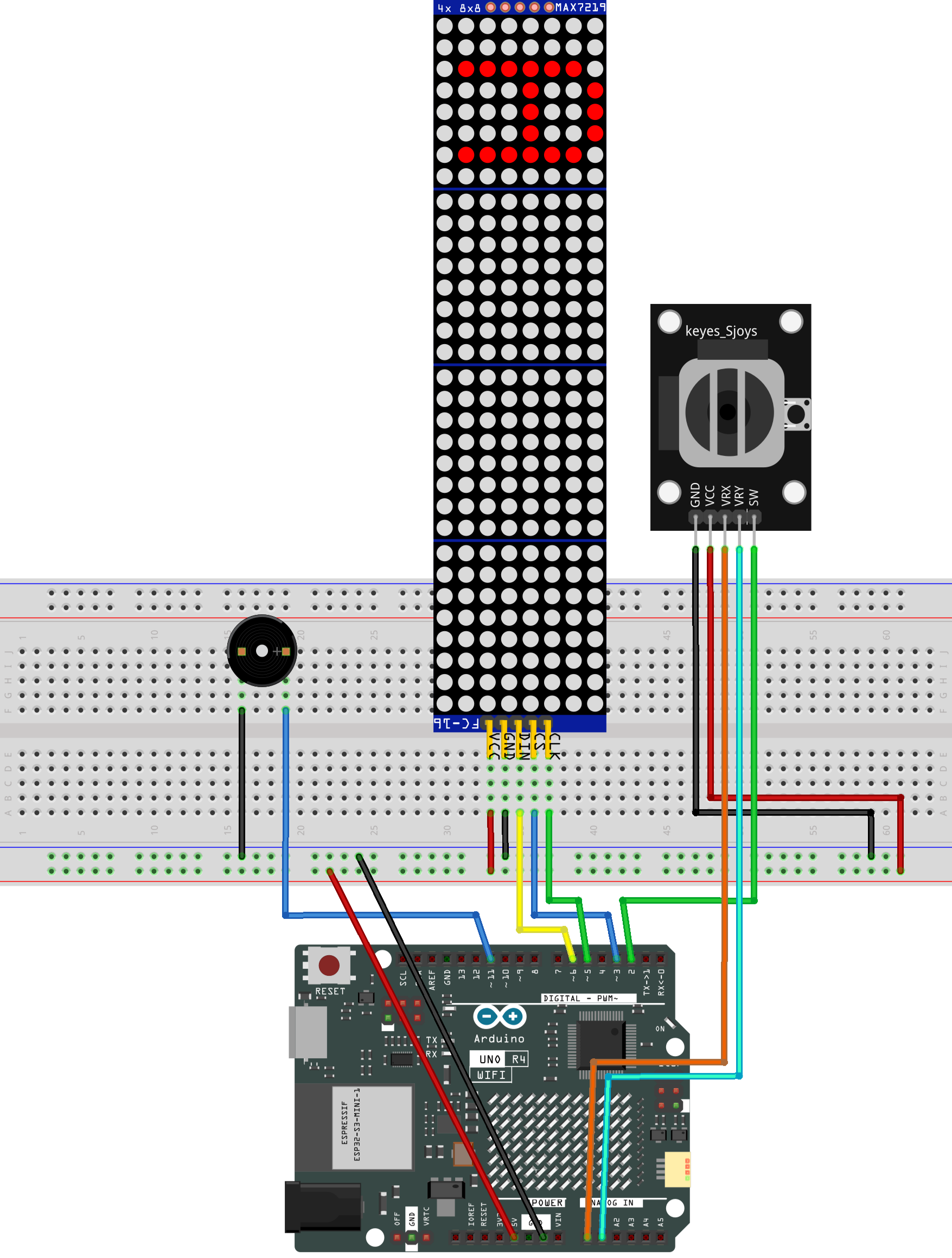

Wiring
Common Connections:
MAX7219 Dot Matrix Module
CLK: Connect to 5 on the Arduino.
CS: Connect to 3 on the Arduino.
DIN: Connect to 6 on the Arduino.
GND: Connect to breadboard’s negative power bus.
VCC: Connect to breadboard’s red power bus.
Buzzer
＋: Connect to 11 on the Arduino.
－: Connect to breadboard’s negative power bus.
Joystick Module
VRY: Connect to A1 on the Arduino.
VRX: Connect to A0 on the Arduino.
SW: Connect to 2 on the Arduino.
GND: Connect to breadboard’s negative power bus.
VCC: Connect to breadboard’s red power bus.
Writing the Code
Note
You can copy this code into Arduino IDE.
To install the library, use the Arduino Library Manager and search for LedControl and install it.
Don’t forget to select the board(Arduino UNO R4 WIFI) and the correct port before clicking the Upload button.
#include <LedControl.h>
// MAX7219 LED matrix pins
#define DIN_PIN 6
#define CLK_PIN 5
#define CS_PIN 3
#define NUM_MODULES 4
LedControl lc(DIN_PIN, CLK_PIN, CS_PIN, NUM_MODULES);
// Joystick and buzzer pins
#define VRx A0
#define VRy A1
#define SW 2
#define BUZZER_PIN 11
// Game screen size
const int SCREEN_W = 8;
const int PREVIEW_MODULE = 3;
const int GAME_MODULES = NUM_MODULES - 1;
const int SCREEN_H = SCREEN_W * GAME_MODULES;
// Stores the locked blocks on the game field
uint8_t field[SCREEN_H];
// Timing for movement and display refresh
unsigned long lastDrop = 0;
unsigned long dropInterval = 500;
unsigned long lastMove = 0;
const unsigned long moveInterval = 200;
const unsigned long refreshInterval = 33;
unsigned long lastRefresh = 0;
// Button debounce settings
unsigned long lastButtonCheck = 0;
const unsigned long debounceDelay = 30;
bool lastButtonState = HIGH;
bool buttonPressedEvent = false;
// Non-blocking buzzer state
bool buzzerOn = false;
unsigned long buzzerOffTime = 0;
// Short delay before locking a landed block
bool pendingLock = false;
unsigned long lockTime = 0;
const unsigned long lockDelay = 30;
// Short delay before spawning the next block
bool waitingForNextBlock = false;
unsigned long nextBlockTime = 0;
const unsigned long nextBlockDelay = 120;
// Saves the last LED state to reduce flicker
uint8_t prevBuf[NUM_MODULES][SCREEN_W];
// Stores the current falling block
struct Block {
const int (*shape)[2]; // Points to the current block shape
int len; // Number of small squares in the block
int x, y; // Block position on the game field
int rotation; // Current rotation state
char type; // Block type: I, O, T, L, J, S, or Z
} current;
char nextType;
// I block rotations
const int I_SHAPE[2][4][2] = {
{{0,0},{0,1},{0,2},{0,3}},
{{-1,1},{0,1},{1,1},{2,1}}
};
// O block rotation
const int O_SHAPE[1][4][2] = {
{{0,0},{1,0},{0,1},{1,1}}
};
// T block rotations
const int T_SHAPE[4][4][2] = {
{{1,0},{0,1},{1,1},{2,1}},
{{1,0},{1,1},{1,2},{0,1}},
{{0,1},{1,1},{2,1},{1,2}},
{{1,0},{1,1},{1,2},{2,1}}
};
// L block rotations
const int L_SHAPE[4][4][2] = {
{{0,0},{0,1},{0,2},{1,2}},
{{0,0},{1,0},{2,0},{0,1}},
{{0,0},{1,0},{1,1},{1,2}},
{{2,0},{0,1},{1,1},{2,1}}
};
// J block rotations
const int J_SHAPE[4][4][2] = {
{{1,0},{1,1},{1,2},{0,2}},
{{0,0},{0,1},{1,1},{2,1}},
{{0,0},{1,0},{0,1},{0,2}},
{{0,0},{1,0},{2,0},{2,1}}
};
// S block rotations
const int S_SHAPE[2][4][2] = {
{{1,0},{2,0},{0,1},{1,1}},
{{1,0},{1,1},{2,1},{2,2}}
};
// Z block rotations
const int Z_SHAPE[2][4][2] = {
{{0,0},{1,0},{1,1},{2,1}},
{{2,0},{1,1},{2,1},{1,2}}
};
// Letter patterns for the GAME OVER screen
static const uint8_t PAT_G[8] = {0x3C,0x42,0x40,0x4E,0x42,0x42,0x3C,0x00};
static const uint8_t PAT_A[8] = {0x18,0x24,0x42,0x7E,0x42,0x42,0x42,0x00};
static const uint8_t PAT_M[8] = {0x42,0x66,0x5A,0x5A,0x42,0x42,0x42,0x00};
static const uint8_t PAT_E[8] = {0x7E,0x40,0x5C,0x40,0x40,0x40,0x7E,0x00};
static const uint8_t PAT_O[8] = {0x3C,0x42,0x42,0x42,0x42,0x42,0x3C,0x00};
static const uint8_t PAT_V[8] = {0x42,0x42,0x42,0x42,0x42,0x24,0x18,0x00};
static const uint8_t PAT_R[8] = {0x7C,0x42,0x42,0x7C,0x48,0x44,0x42,0x00};
// Play a blocking beep for simple startup sounds
void beep(int duration) {
digitalWrite(BUZZER_PIN, HIGH);
delay(duration);
digitalWrite(BUZZER_PIN, LOW);
}
// Start a beep without stopping the game
void startBeep(unsigned long duration) {
digitalWrite(BUZZER_PIN, HIGH);
buzzerOn = true;
buzzerOffTime = millis() + duration;
}
// Turn off the buzzer when its time is up
void updateBuzzer() {
if (buzzerOn && millis() >= buzzerOffTime) {
digitalWrite(BUZZER_PIN, LOW);
buzzerOn = false;
}
}
// Play the startup sound
void soundStart() {
beep(60);
delay(80);
beep(60);
delay(80);
beep(120);
}
// Play the rotate sound
void soundRotate() {
startBeep(40);
}
// Play the landing sound
void soundLand() {
startBeep(70);
}
// Play the game over sound
void soundGameOver() {
beep(120);
delay(80);
beep(120);
delay(80);
beep(250);
}
// Clear all LED matrix modules
void clearAll() {
for (int m = 0; m < NUM_MODULES; m++) {
lc.clearDisplay(m);
}
}
// Read the joystick button without freezing the game
bool readButton() {
bool currentState = digitalRead(SW);
unsigned long now = millis();
if (currentState != lastButtonState) {
lastButtonCheck = now;
lastButtonState = currentState;
}
if ((now - lastButtonCheck) > debounceDelay) {
if (currentState == LOW && !buttonPressedEvent) {
buttonPressedEvent = true;
return true;
}
if (currentState == HIGH) {
buttonPressedEvent = false;
}
}
return false;
}
// Get the LED pattern for a letter
const uint8_t* letterPattern(char c) {
switch (c) {
case 'G': return PAT_G;
case 'A': return PAT_A;
case 'M': return PAT_M;
case 'E': return PAT_E;
case 'O': return PAT_O;
case 'V': return PAT_V;
case 'R': return PAT_R;
default: return PAT_E;
}
}
// Pick a random block type
char randomBlockType() {
const char types[] = {'I', 'O', 'T', 'L', 'J', 'S', 'Z'};
return types[random(7)];
}
// Get the default shape for the preview window
const int (*getShapeByType(char type))[2] {
if (type == 'I') return I_SHAPE[0];
else if (type == 'O') return O_SHAPE[0];
else if (type == 'T') return T_SHAPE[0];
else if (type == 'L') return L_SHAPE[0];
else if (type == 'J') return J_SHAPE[0];
else if (type == 'S') return S_SHAPE[0];
else if (type == 'Z') return Z_SHAPE[0];
return O_SHAPE[0];
}
// Set the current block type and position
void setBlockByType(char type, int sx, int sy) {
current.rotation = 0;
current.type = type;
current.len = 4;
current.x = sx;
current.y = sy;
if (type == 'I') current.shape = I_SHAPE[0];
else if (type == 'O') current.shape = O_SHAPE[0];
else if (type == 'T') current.shape = T_SHAPE[0];
else if (type == 'L') current.shape = L_SHAPE[0];
else if (type == 'J') current.shape = J_SHAPE[0];
else if (type == 'S') current.shape = S_SHAPE[0];
else if (type == 'Z') current.shape = Z_SHAPE[0];
}
// Draw the upcoming block on the preview matrix
void drawNextBlock() {
uint8_t preview[8] = {};
const int (*shape)[2] = getShapeByType(nextType);
int offsetX = 3;
int offsetY = 3;
if (nextType == 'I') {
offsetX = 4;
offsetY = 3;
} else if (nextType == 'O') {
offsetX = 4;
offsetY = 4;
}
for (int i = 0; i < 4; i++) {
int x = offsetX + shape[i][0];
int y = offsetY + shape[i][1];
if (x >= 0 && x < 8 && y >= 0 && y < 8) {
preview[y] |= (1 << x);
}
}
// Add a simple border line for the preview area
for (int row = 0; row < 8; row++) {
preview[row] |= (1 << 0);
}
for (int row = 0; row < 8; row++) {
lc.setRow(PREVIEW_MODULE, row, preview[row]);
prevBuf[PREVIEW_MODULE][row] = preview[row];
}
}
// Create a new falling block
void spawnBlock() {
int sx = SCREEN_W / 2 - 2;
setBlockByType(nextType, sx, 0);
nextType = randomBlockType();
}
// Show the game over animation
void gameOverSequence() {
soundGameOver();
for (int i = 0; i < 3; i++) {
clearAll();
delay(300);
for (int m = 0; m < NUM_MODULES; m++) {
for (int r = 0; r < SCREEN_W; r++) {
lc.setRow(m, r, 0xFF);
}
}
delay(300);
}
const char* w1 = "GAME";
for (int seg = 0; seg < 4; seg++) {
const uint8_t* pat = letterPattern(w1[seg]);
uint8_t rot[8] = {};
for (int y = 0; y < 8; y++) {
for (int x = 0; x < 8; x++) {
if (pat[y] & (1 << x)) {
int nx = 7 - y;
int ny = x;
rot[ny] |= (1 << nx);
}
}
}
int module = NUM_MODULES - 1 - seg;
for (int row = 0; row < 8; row++) {
lc.setRow(module, row, rot[row]);
}
}
delay(1000);
const char* w2 = "OVER";
for (int seg = 0; seg < 4; seg++) {
const uint8_t* pat = letterPattern(w2[seg]);
uint8_t rot[8] = {};
for (int y = 0; y < 8; y++) {
for (int x = 0; x < 8; x++) {
if (pat[y] & (1 << x)) {
int nx = 7 - y;
int ny = x;
rot[ny] |= (1 << nx);
}
}
}
int module = NUM_MODULES - 1 - seg;
for (int row = 0; row < 8; row++) {
lc.setRow(module, row, rot[row]);
}
}
delay(1200);
// Wait for the player to press and release the button
while (digitalRead(SW) != LOW) {
delay(10);
}
while (digitalRead(SW) == LOW) {
delay(10);
}
}
// Start a new game
void resetGame() {
memset(field, 0, sizeof(field));
clearAll();
for (int m = 0; m < NUM_MODULES; m++) {
for (int r = 0; r < SCREEN_W; r++) {
prevBuf[m][r] = 0;
}
}
pendingLock = false;
waitingForNextBlock = false;
buzzerOn = false;
digitalWrite(BUZZER_PIN, LOW);
nextType = randomBlockType();
spawnBlock();
drawNextBlock();
writeBuffer();
soundStart();
lastDrop = millis();
lastRefresh = millis();
}
// Build and send the LED display buffer
void writeBuffer() {
uint8_t buf[NUM_MODULES][SCREEN_W] = {};
for (int y = 0; y < SCREEN_H; y++) {
uint8_t row = field[y];
if (!row) continue;
int mod = 2 - (y / SCREEN_W);
int bit = 1 << (7 - (y % SCREEN_W));
for (int x = 0; x < SCREEN_W; x++) {
if (row & (1 << x)) {
buf[mod][x] |= bit;
}
}
}
// Draw the falling block unless the game is between blocks
if (!waitingForNextBlock) {
for (int i = 0; i < current.len; i++) {
int xx = current.x + current.shape[i][0];
int yy = current.y + current.shape[i][1];
if (xx < 0 || xx >= SCREEN_W || yy < 0 || yy >= SCREEN_H) {
continue;
}
int mod = 2 - (yy / SCREEN_W);
int bit = 1 << (7 - (yy % SCREEN_W));
buf[mod][xx] |= bit;
}
}
// Update only changed rows
for (int m = 0; m < 3; m++) {
for (int r = 0; r < SCREEN_W; r++) {
if (buf[m][r] != prevBuf[m][r]) {
lc.setRow(m, r, buf[m][r]);
prevBuf[m][r] = buf[m][r];
}
}
}
}
// Check if the block would hit a wall, floor, or placed block
bool checkCollision(int nx, int ny) {
for (int i = 0; i < current.len; i++) {
int xx = nx + current.shape[i][0];
int yy = ny + current.shape[i][1];
if (xx < 0 || xx >= SCREEN_W || yy >= SCREEN_H) {
return true;
}
if (yy >= 0 && (field[yy] & (1 << xx))) {
return true;
}
}
return false;
}
// Check if the block locks at the top of the field
bool isAtTop() {
for (int i = 0; i < current.len; i++) {
if (current.y + current.shape[i][1] == 0) {
return true;
}
}
return false;
}
// Add the current block to the field
void placeBlock() {
for (int i = 0; i < current.len; i++) {
int xx = current.x + current.shape[i][0];
int yy = current.y + current.shape[i][1];
if (yy >= 0 && yy < SCREEN_H) {
field[yy] |= (1 << xx);
}
}
// Clear full rows
for (int y = 0; y < SCREEN_H; y++) {
if (field[y] == 0xFF) {
for (int j = y; j > 0; j--) {
field[j] = field[j - 1];
}
field[0] = 0;
}
}
}
// Lock the current block after it lands
void lockCurrentBlock(unsigned long now) {
if (isAtTop()) {
gameOverSequence();
resetGame();
return;
}
placeBlock();
waitingForNextBlock = true;
pendingLock = false;
soundLand();
writeBuffer();
nextBlockTime = now + nextBlockDelay;
}
// Rotate the current block
void rotateBlock() {
int limit =
(current.type == 'I' ||
current.type == 'S' ||
current.type == 'Z') ? 2 :
(current.type == 'O' ? 1 : 4);
int nr = (current.rotation + 1) % limit;
const int (*ns)[2] = nullptr;
if (current.type == 'I') ns = I_SHAPE[nr];
else if (current.type == 'O') ns = O_SHAPE[0];
else if (current.type == 'T') ns = T_SHAPE[nr];
else if (current.type == 'L') ns = L_SHAPE[nr];
else if (current.type == 'J') ns = J_SHAPE[nr];
else if (current.type == 'S') ns = S_SHAPE[nr];
else if (current.type == 'Z') ns = Z_SHAPE[nr];
Block bak = current;
current.shape = ns;
current.rotation = nr;
// Undo the rotation if it does not fit
if (checkCollision(current.x, current.y)) {
current = bak;
} else {
soundRotate();
}
}
void setup() {
pinMode(SW, INPUT_PULLUP);
pinMode(BUZZER_PIN, OUTPUT);
digitalWrite(BUZZER_PIN, LOW);
randomSeed(analogRead(A2));
// Turn on and clear each LED matrix
for (int m = 0; m < NUM_MODULES; m++) {
lc.shutdown(m, false);
lc.setIntensity(m, 8);
lc.clearDisplay(m);
for (int r = 0; r < SCREEN_W; r++) {
prevBuf[m][r] = 0;
}
}
resetGame();
}
void loop() {
unsigned long now = millis();
// Keep buzzer timing updated
updateBuzzer();
// Finish locking the block after the landing delay
if (pendingLock) {
if (now >= lockTime) {
lockCurrentBlock(now);
}
if (now - lastRefresh >= refreshInterval) {
writeBuffer();
lastRefresh = now;
}
return;
}
// Spawn the next block after a short pause
if (waitingForNextBlock) {
if (now >= nextBlockTime) {
spawnBlock();
drawNextBlock();
waitingForNextBlock = false;
lastDrop = now;
lastRefresh = now;
}
if (now - lastRefresh >= refreshInterval) {
writeBuffer();
lastRefresh = now;
}
return;
}
// Read joystick left/right movement
int ax = analogRead(VRx);
// Move left or right at a controlled speed
if (now - lastMove > moveInterval) {
if (ax < 400 && !checkCollision(current.x + 1, current.y)) {
current.x++;
lastMove = now;
} else if (ax > 600 && !checkCollision(current.x - 1, current.y)) {
current.x--;
lastMove = now;
}
}
// Rotate when the joystick button is pressed
if (readButton()) {
rotateBlock();
}
// Read joystick up/down movement
int ay = analogRead(VRy);
// Push down to make the block fall faster
dropInterval = 700 - constrain(map(ay, 512, 1023, 0, 690), 0, 690);
// Move the block down automatically
if (now - lastDrop > dropInterval) {
lastDrop = now;
if (!checkCollision(current.x, current.y + 1)) {
current.y++;
writeBuffer();
// Start the lock delay when the block reaches the bottom
if (checkCollision(current.x, current.y + 1)) {
pendingLock = true;
lockTime = now + lockDelay;
}
} else {
pendingLock = true;
lockTime = now;
}
}
// Refresh the display regularly
if (now - lastRefresh >= refreshInterval) {
writeBuffer();
lastRefresh = now;
}
}
