Course Introduction

In this lesson, you’ll learn how to use the MPU6050 module with the ESP32 to control a servo motor.

In this setup, the servo’s angle changes according to the tilt of the MPU6050 sensor. As you tilt the module, the Arduino reads the pitch angle and smoothly adjusts the servo position based on the sensor’s orientation.

Note

If this is your first time working with an ESP32 project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN	COMPONENT INTRODUCTION	QUANTITY	PURCHASE LINK
1	ESP-WROOM-32 ESP32 ESP-32S Development Board	1	BUY
2	USB Type-C cable	1
3	Breadboard	1	BUY
4	Wires	Several	BUY
5	Digital Servo Motor	1	BUY
6	MPU6050 Module	1	BUY

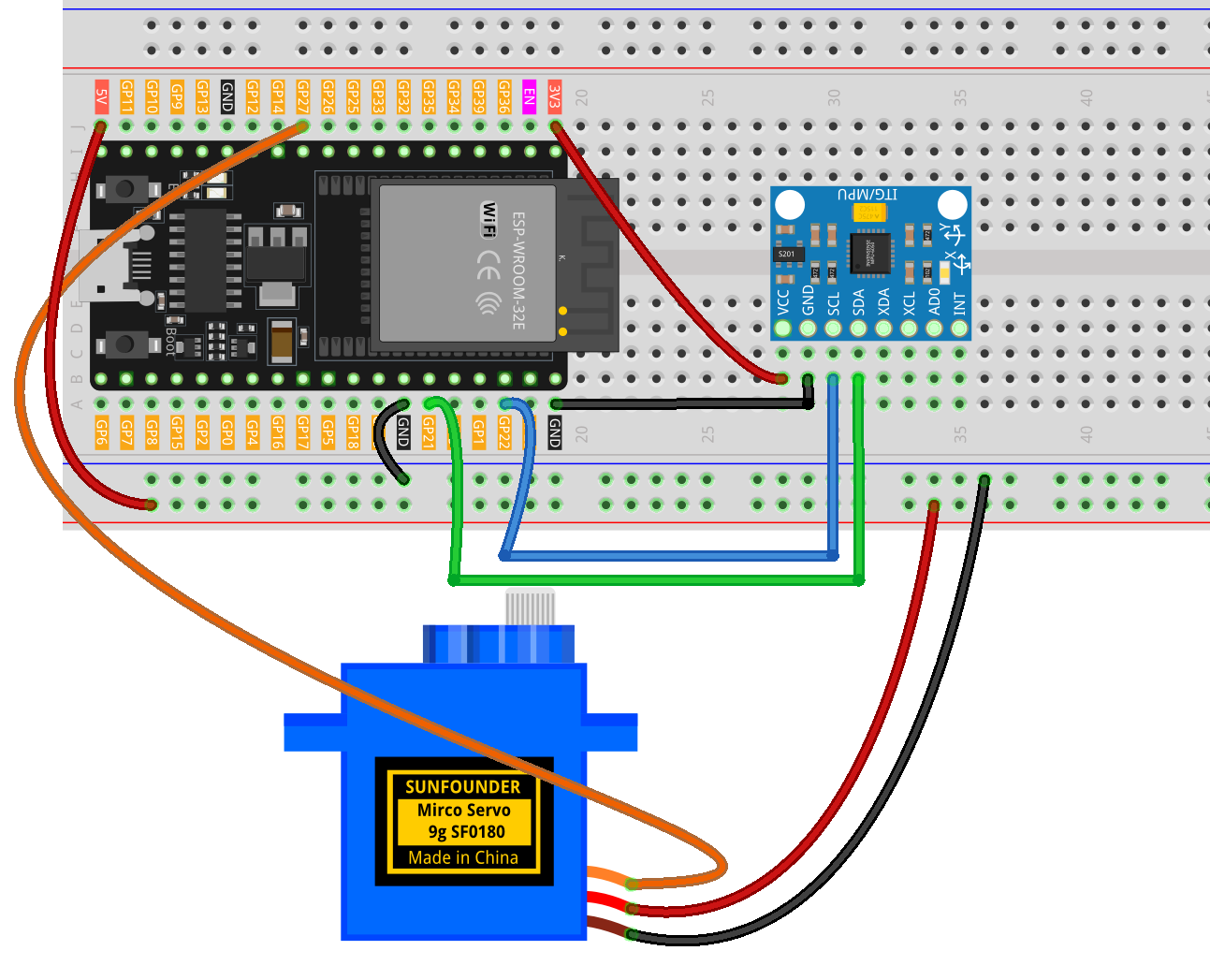

Wiring

Common Connections:

Digital Servo Motor
- Connect to breadboard’s positive power bus.
- Connect to breadboard’s negative power bus.
- Connect to GPIO27 on the ESP32.
MPU6050
- SDA: Connect to GPIO21 on the ESP32.
- SCL: Connect to GPIO22 on the ESP32.
- GND: Connect to breadboard’s negative power bus.
- VCC: Connect to 3.3V on the ESP32.

Writing the Code

Note

You can copy this code into Arduino IDE.
To install the library, use the Arduino Library Manager and search for Adafruit_MPU6050 , Adafruit_Sensor and install it.
Don’t forget to select the board(ESP32 Dev module) and the correct port before clicking the Upload button.

#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <ESP32Servo.h>
#include <math.h>

// ----- Objects -----
Adafruit_MPU6050 mpu;
Servo servo;

// ----- Pins (ESP32) -----
const int SERVO_PIN = 27;     // Safe PWM-capable GPIO for servo signal
const int I2C_SDA  = 21;      // ESP32 default SDA
const int I2C_SCL  = 22;      // ESP32 default SCL

// ----- Settings -----
const int samples = 25;       // number of readings to average

// Map a float from one range to another
float mapFloat(float x, float in_min, float in_max, float out_min, float out_max) {
  return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min;
}

// Euclidean distance helper
float distVal(float a, float b) {
  return sqrtf(a * a + b * b);
}

// Pitch (rotation around Y axis), degrees
float getYRotation(float ax, float ay, float az) {
  float radians = atan2f(ax, distVal(ay, az));
  return -degrees(radians);   // negate to match original orientation
}

void setup() {
  Serial.begin(115200);

  // I2C on ESP32
  Wire.begin(I2C_SDA, I2C_SCL);
  Wire.setClock(400000);

  // Init MPU6050
  if (!mpu.begin(0x68, &Wire)) {
    Serial.println("MPU6050 initialization failed");
    while (1) { delay(10); }
  }
  Serial.println("MPU6050 initialized");

  // Sensor ranges & filter
  mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
  mpu.setGyroRange(MPU6050_RANGE_500_DEG);
  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

  // Servo on ESP32
  // Typical pulse range 500–2500 µs; adjust if your servo needs different endpoints
  servo.attach(SERVO_PIN, 500, 2500);

  delay(100); // settle
}

void loop() {
  float totalAngle = 0.0f;

  // Take multiple readings and average
  for (int i = 0; i < samples; i++) {
    sensors_event_t accel, gyro, temp;
    mpu.getEvent(&accel, &gyro, &temp);
    float angleY = getYRotation(accel.acceleration.x,
                                accel.acceleration.y,
                                accel.acceleration.z);
    totalAngle += angleY;
    delay(5); // small spacing for smoother averaging
  }

  float avgAngle = totalAngle / samples;

  // Map from [-90, 90] -> [180, 0] (reversed direction)
  float servoAngle = mapFloat(avgAngle, -90.0f, 90.0f, 180.0f, 0.0f);
  servoAngle = constrain(servoAngle, 0.0f, 180.0f);

  servo.write((int)servoAngle);

  // Debug
  Serial.print("Avg Y Angle: ");
  Serial.print(avgAngle);
  Serial.print("  ->  Servo Angle: ");
  Serial.println(servoAngle);

  delay(100);
}
