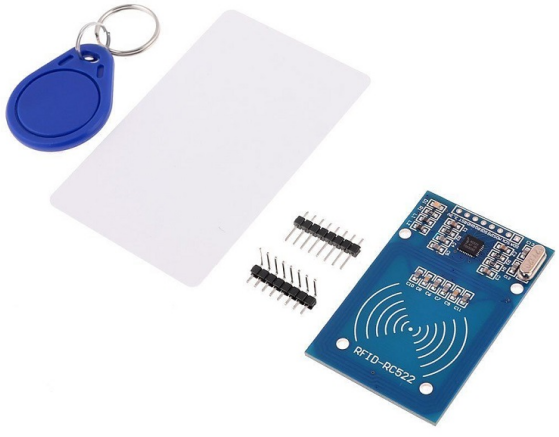

MFRC522 Module

img_mfrc522

The MFRC522 is an integrated chip designed for reading and writing contactless cards. Operating at a frequency of 13.56 MHz, it is a product of NXP and is known for its low voltage, low cost, and compact size, making it an excellent choice for intelligent instruments and portable handheld devices.

The MFRC522 incorporates advanced modulation and demodulation technology, supporting various 13.56 MHz passive contactless communication methods and protocols. It also features the rapid CRYPTO1 encryption algorithm for MIFARE product verification and supports high-speed two-way communication with MIFARE series cards, achieving data transmission rates of up to 424 kbit/s.

As a new addition to the 13.56 MHz reader chip series, the MFRC522 shares similarities with its predecessors, the MFRC500 and MFRC530, while introducing significant improvements. It communicates with the host device through a serial interface, minimizing wiring complexity. Users can choose between SPI, I2C, or UART (similar to RS232) communication modes, enabling streamlined connections, reduced PCB size, and lower overall costs.
