Button Module

../_images/01_button.png

The button module is an electronic device that detects the state of a button.They are usually used as switches to connect or break circuits.Buttons are used in many scenarios, such as doorbells, desk lamps, remote controls, elevators, fire alarms, etc.

Principle

The button module works on the principle of a switch. A switch is an electrical component that can be used to open or close a circuit.

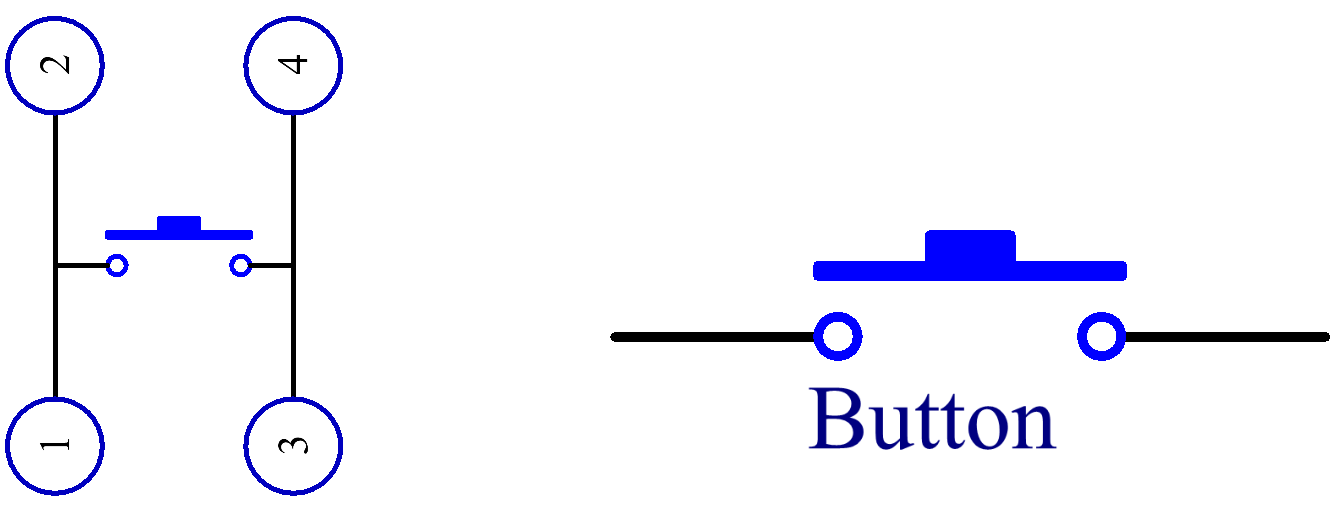

The following is the internal structure of a button. The symbol on the right below is usually used to represent a button in circuits.

../_images/01_button_2.png

Since the pin 1 is connected to pin 2, and pin 3 to pin 4, when the button is pressed, the 4 pins are connected, thus closing the circuit.

../_images/01_button_3.png

Schematic diagram

../_images/01_button_module_schematic.png

Example
