4.1.9 Password Lock¶
Introduction¶
In this project, we will use a keypad and a LCD to make a combination lock. The LCD will display a corresponding prompt for you to type your password on the Keypad. If the password is input correctly, “Correct” will be displayed.
On the basis of this project, we can add additional electronic components, such as buzzer, LED and so on, to add different experimental phenomena for password input.

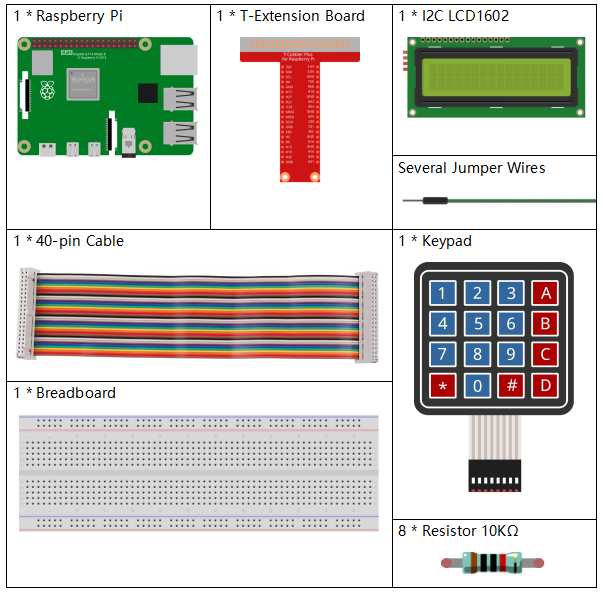

Required Components¶
In this project, we need the following components.
It’s definitely convenient to buy a whole kit, here’s the link:
Name |
ITEMS IN THIS KIT |
LINK |
---|---|---|
Raphael Kit |
337 |
You can also buy them separately from the links below.
COMPONENT INTRODUCTION |
PURCHASE LINK |
---|---|
- |
Schematic Diagram¶
T-Board Name |
physical |
wiringPi |
BCM |
GPIO18 |
Pin 12 |
1 |
18 |
GPIO23 |
Pin 16 |
4 |
23 |
GPIO24 |
Pin 18 |
5 |
24 |
GPIO25 |
Pin 22 |
6 |
25 |
GPIO17 |
Pin 11 |
0 |
17 |
GPIO27 |
Pin 13 |
2 |
27 |
GPIO22 |
Pin 15 |
3 |
22 |
SPIMOSI |
Pin 19 |
12 |
10 |
SDA1 |
Pin 3 |
||
SCL1 |
Pin 5 |
Experimental Procedures¶
Step 1: Build the circuit.
Step 2: Change directory.
cd ~/raphael-kit/python-pi5
Step 3: Run.
sudo python3 4.1.14_PasswordLock_zero.py
After the code runs, keypad is used to input password: 1984. If the “CORRECT” appears on LCD1602, there is no wrong with the password; otherwise, “WRONG KEY” will appear.
Note
If you get the error
FileNotFoundError: [Errno 2] No such file or directory: '/dev/i2c-1'
, you need to refer to I2C Configuration to enable the I2C.If you get
ModuleNotFoundError: No module named 'smbus2'
error, please runsudo pip3 install smbus2
.If the error
OSError: [Errno 121] Remote I/O error
appears, it means the module is miswired or the module is broken.If the code and wiring are fine, but the LCD still does not display content, you can turn the potentiometer on the back to increase the contrast.
Code
Note
You can Modify/Reset/Copy/Run/Stop the code below. But before that, you need to go to source code path like raphael-kit/python-pi5
. After modifying the code, you can run it directly to see the effect.
#!/usr/bin/env python3
from gpiozero import DigitalOutputDevice, Button
from time import sleep
import LCD1602
class Keypad:
def __init__(self, rows_pins, cols_pins, keys):
"""
Initialize the Keypad with specified row and column pins and keys.
:param rows_pins: List of GPIO pins for the rows.
:param cols_pins: List of GPIO pins for the columns.
:param keys: List of keys in the keypad layout.
"""
self.rows = [DigitalOutputDevice(pin) for pin in rows_pins] # Row pins setup
self.cols = [Button(pin, pull_up=False) for pin in cols_pins] # Column pins setup
self.keys = keys # Keypad key layout
def read(self):
"""
Read and return a list of keys that are currently pressed.
:return: List of pressed keys.
"""
pressed_keys = []
for i, row in enumerate(self.rows):
row.on() # Activate current row
for j, col in enumerate(self.cols):
if col.is_pressed:
index = i * len(self.cols) + j
pressed_keys.append(self.keys[index])
row.off() # Deactivate row after checking
return pressed_keys
# Password verification setup
LENS = 4
password = ['1', '9', '8', '4'] # Preset password
testword = ['0', '0', '0', '0'] # User input storage
keyIndex = 0 # Index for input keys
def check():
"""
Check if the entered password matches the preset password.
:return: 1 if match, 0 otherwise.
"""
for i in range(LENS):
if password[i] != testword[i]:
return 0
return 1
def setup():
"""
Setup the keypad and LCD display.
"""
global keypad, last_key_pressed
# Pin configuration for keypad
rows_pins = [18, 23, 24, 25]
cols_pins = [10, 22, 27, 17]
keys = ["1", "2", "3", "A",
"4", "5", "6", "B",
"7", "8", "9", "C",
"*", "0", "#", "D"]
# Initialize keypad and LCD
keypad = Keypad(rows_pins, cols_pins, keys)
last_key_pressed = []
LCD1602.init(0x27, 1) # Initialize LCD
LCD1602.clear()
LCD1602.write(0, 0, 'WELCOME!')
LCD1602.write(2, 1, 'Enter password')
sleep(2)
def loop():
"""
Main loop for handling keypad input and password verification.
"""
global keyIndex, LENS, keypad, last_key_pressed
while True:
pressed_keys = keypad.read()
if pressed_keys and pressed_keys != last_key_pressed:
if keyIndex < LENS:
LCD1602.clear()
LCD1602.write(0, 0, "Enter password:")
LCD1602.write(15 - keyIndex, 1, pressed_keys[0])
testword[keyIndex] = pressed_keys[0]
keyIndex += 1
if keyIndex == LENS:
if check() == 0:
LCD1602.clear()
LCD1602.write(3, 0, "WRONG KEY!")
LCD1602.write(0, 1, "please try again")
else:
LCD1602.clear()
LCD1602.write(4, 0, "CORRECT!")
LCD1602.write(2, 1, "welcome back")
keyIndex = 0 # Reset key index after checking
last_key_pressed = pressed_keys
sleep(0.1)
try:
setup()
loop()
except KeyboardInterrupt:
LCD1602.clear() # Clear LCD display on interrupt
Code Explanation
The script imports classes for managing digital output devices and buttons from the gpiozero library. It also imports the sleep function from the time module, enabling the addition of delays in the script’s execution. Additionally, the LCD1602 library is imported for controlling the LCD1602 display.
#!/usr/bin/env python3 from gpiozero import DigitalOutputDevice, Button from time import sleep import LCD1602
Defines a custom class for managing the keypad. It initializes the keypad with specified row and column pins and provides a
read
method to detect pressed keys.class Keypad: def __init__(self, rows_pins, cols_pins, keys): """ Initialize the Keypad with specified row and column pins and keys. :param rows_pins: List of GPIO pins for the rows. :param cols_pins: List of GPIO pins for the columns. :param keys: List of keys in the keypad layout. """ self.rows = [DigitalOutputDevice(pin) for pin in rows_pins] # Row pins setup self.cols = [Button(pin, pull_up=False) for pin in cols_pins] # Column pins setup self.keys = keys # Keypad key layout def read(self): """ Read and return a list of keys that are currently pressed. :return: List of pressed keys. """ pressed_keys = [] for i, row in enumerate(self.rows): row.on() # Activate current row for j, col in enumerate(self.cols): if col.is_pressed: index = i * len(self.cols) + j pressed_keys.append(self.keys[index]) row.off() # Deactivate row after checking return pressed_keys
Sets up the password verification system.
LENS
defines the length of the password.password
is the preset correct password, whiletestword
is used to store the user’s input.keyIndex
tracks the current position in the user’s input.# Password verification setup LENS = 4 password = ['1', '9', '8', '4'] # Preset password testword = ['0', '0', '0', '0'] # User input storage keyIndex = 0 # Index for input keys
Function to compare the entered password (
testword
) with the preset password (password
) and return the result.def check(): """ Check if the entered password matches the preset password. :return: 1 if match, 0 otherwise. """ for i in range(LENS): if password[i] != testword[i]: return 0 return 1
Initializes the keypad and LCD display. Displays a welcome message and instructions for entering the password.
def setup(): """ Setup the keypad and LCD display. """ global keypad, last_key_pressed # Pin configuration for keypad rows_pins = [18, 23, 24, 25] cols_pins = [10, 22, 27, 17] keys = ["1", "2", "3", "A", "4", "5", "6", "B", "7", "8", "9", "C", "*", "0", "#", "D"] # Initialize keypad and LCD keypad = Keypad(rows_pins, cols_pins, keys) last_key_pressed = [] LCD1602.init(0x27, 1) # Initialize LCD LCD1602.clear() LCD1602.write(0, 0, 'WELCOME!') LCD1602.write(2, 1, 'Enter password') sleep(2)
The main loop for handling keypad input and password verification. It updates the LCD display based on the entered password and provides feedback if the password is correct or incorrect.
def loop(): """ Main loop for handling keypad input and password verification. """ global keyIndex, LENS, keypad, last_key_pressed while True: pressed_keys = keypad.read() if pressed_keys and pressed_keys != last_key_pressed: if keyIndex < LENS: LCD1602.clear() LCD1602.write(0, 0, "Enter password:") LCD1602.write(15 - keyIndex, 1, pressed_keys[0]) testword[keyIndex] = pressed_keys[0] keyIndex += 1 if keyIndex == LENS: if check() == 0: LCD1602.clear() LCD1602.write(3, 0, "WRONG KEY!") LCD1602.write(0, 1, "please try again") else: LCD1602.clear() LCD1602.write(4, 0, "CORRECT!") LCD1602.write(2, 1, "welcome back") keyIndex = 0 # Reset key index after checking last_key_pressed = pressed_keys sleep(0.1)
Runs the setup and enters the main loop. Allows for a clean exit from the program using a keyboard interrupt (Ctrl+C), clearing the LCD display.
try: setup() loop() except KeyboardInterrupt: LCD1602.clear() # Clear LCD display on interrupt
