Course Introduction

In this project, we use a MAX7219 8x8 Dot Matrix module, a joystick, and an Nano ESP32 board to play a classic Tetris game.

The falling blocks are controlled using the joystick for left, right, down, and rotation.

Note

If this is your first time working with an Arduino project, we recommend downloading and reviewing the basic materials first.

Required Components

In this project, we need the following components:

SN

COMPONENT INTRODUCTION

QUANTITY

PURCHASE LINK

1

Arduino Nano ESP32

1

2

USB Type-C cable

1

3

Breadboard

1

BUY

4

Wires

Several

BUY

5

Joystick Module

1

BUY

6

MAX7219 Dot Matrix Module

1

BUY

Wiring

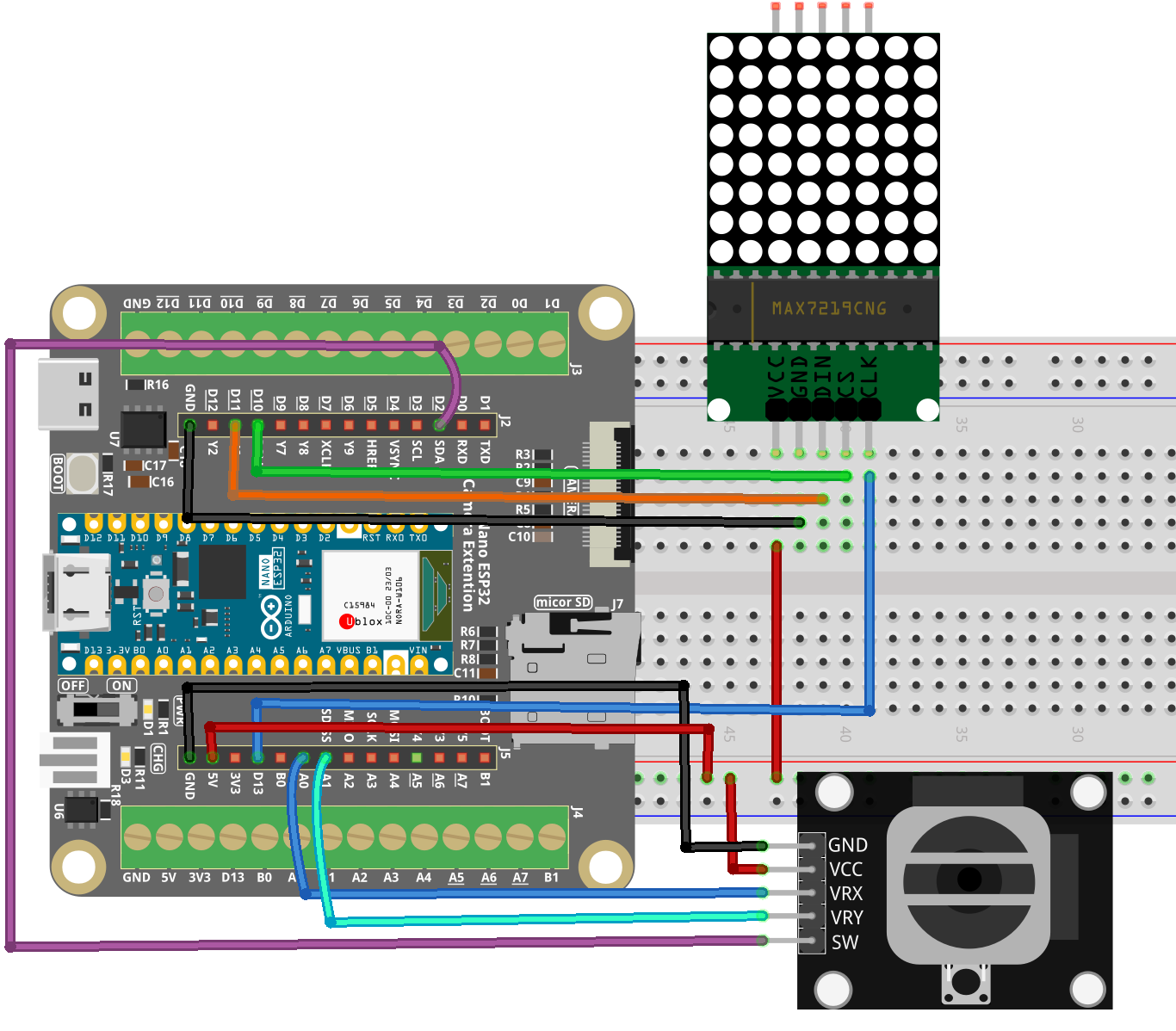

../_images/Tetris_Game_bb1.png

Common Connections:

  • MAX7219 Dot Matrix Module

    • CLK: Connect to D13 on the ESP32.

    • CS: Connect to D10 on the ESP32.

    • DIN: Connect to D11 on the ESP32.

    • GND: Connect to GND on the ESP32 Extension Board.

    • VCC: Connect to 5V on the ESP32 Extension Board.

  • Joystick Module

    • SW: Connect to D2 on the ESP32.

    • VRY: Connect to A1 on the ESP32.

    • VRX: Connect to A0 on the ESP32.

    • GND: Connect to GND on the ESP32 Extension Board.

    • VCC: Connect to 3.3V on the ESP32 Extension Board

Writing the Code

Note

  • You can copy this code into Arduino IDE.

  • Don’t forget to select the board(Arduino Nano ESP32) and the correct port before clicking the Upload button.

// Arduino Nano ESP32 Tetris Game for 8x8 MAX7219 + Joystick
// - No LedControl (AVR-only). Uses a tiny MAX7219 bit-bang driver compatible with ESP32.
// - MAX7219: DIN/CLK/CS
// - Joystick: VRx/VRy on A0/A1, SW on D2 (pull-up)
// - Press joystick button to start and rotate
// - Move left/right with VRx, control drop speed with VRy

// -------------------- MAX7219 Pins (Nano ESP32) --------------------
#define DIN  11   // Data to MAX7219 DIN
#define CS   10   // Chip Select to MAX7219 CS/LOAD
#define CLK  13   // Clock to MAX7219 CLK

// -------------------- Joystick Pins (Nano ESP32) --------------------
#define VRx  A0
#define VRy  A1
#define SW    2   // Digital input with pull-up

// -------------------- Minimal MAX7219 Driver --------------------
class MAX7219_8x8 {
public:
  MAX7219_8x8(int din, int clk, int cs) : _din(din), _clk(clk), _cs(cs) {}

  void begin(uint8_t intensity /*0..15*/) {
    pinMode(_din, OUTPUT);
    pinMode(_clk, OUTPUT);
    pinMode(_cs,  OUTPUT);

    digitalWrite(_cs, HIGH);
    digitalWrite(_clk, LOW);

    // Init MAX7219
    sendCmd(0x0F, 0x00); // Display test: off
    sendCmd(0x09, 0x00); // Decode mode: none
    sendCmd(0x0B, 0x07); // Scan limit: 8 digits (0..7)
    sendCmd(0x0C, 0x01); // Shutdown: normal operation
    setIntensity(intensity);
    clear();
  }

  void setIntensity(uint8_t intensity /*0..15*/) {
    if (intensity > 15) intensity = 15;
    sendCmd(0x0A, intensity);
  }

  void clear() {
    for (int row = 0; row < 8; row++) setRow(row, 0x00);
  }

  // row: 0..7, data: bit0->col0 ... bit7->col7
  void setRow(uint8_t row, uint8_t data) {
    // MAX7219 digit registers are 1..8
    sendCmd(row + 1, data);
  }

private:
  int _din, _clk, _cs;

  void shiftOut16(uint8_t reg, uint8_t data) {
    // MSB first: reg then data
    for (int i = 7; i >= 0; i--) {
      digitalWrite(_clk, LOW);
      digitalWrite(_din, (reg >> i) & 1);
      digitalWrite(_clk, HIGH);
    }
    for (int i = 7; i >= 0; i--) {
      digitalWrite(_clk, LOW);
      digitalWrite(_din, (data >> i) & 1);
      digitalWrite(_clk, HIGH);
    }
    digitalWrite(_clk, LOW);
  }

  void sendCmd(uint8_t reg, uint8_t data) {
    digitalWrite(_cs, LOW);
    shiftOut16(reg, data);
    digitalWrite(_cs, HIGH);
  }
};

MAX7219_8x8 lc(DIN, CLK, CS);

// -------------------- Game Data --------------------
byte field[8];  // 8 rows, 8 columns
int score = 0;

struct Block {
  const int (*shape)[2];
  int len;
  int x, y;
  int rotation;
  char type;
};

// Block definitions with all rotations
const int I[2][4][2] = {{{0,0},{0,1},{0,2},{0,3}}, {{-1,1},{0,1},{1,1},{2,1}}};
const int O[1][4][2] = {{{0,0},{1,0},{0,1},{1,1}}};
const int T[4][4][2] = {{{1,0},{0,1},{1,1},{2,1}}, {{1,0},{1,1},{1,2},{0,1}}, {{0,1},{1,1},{2,1},{1,2}}, {{1,0},{1,1},{1,2},{2,1}}};
const int L[4][4][2] = {{{0,0},{0,1},{0,2},{1,2}}, {{0,0},{1,0},{2,0},{0,1}}, {{0,0},{1,0},{1,1},{1,2}}, {{2,0},{0,1},{1,1},{2,1}}};
const int J[4][4][2] = {{{1,0},{1,1},{1,2},{0,2}}, {{0,0},{0,1},{1,1},{2,1}}, {{0,0},{1,0},{0,1},{0,2}}, {{0,0},{1,0},{2,0},{2,1}}};
const int S[2][4][2] = {{{1,0},{2,0},{0,1},{1,1}}, {{1,0},{1,1},{2,1},{2,2}}};
const int Z[2][4][2] = {{{0,0},{1,0},{1,1},{2,1}}, {{2,0},{1,1},{2,1},{1,2}}};

Block current;
unsigned long lastDrop = 0;
unsigned long dropInterval = 500;
bool gameRunning = false;

// -------------------- Utility --------------------
int clampInt(int v, int lo, int hi) {
  if (v < lo) return lo;
  if (v > hi) return hi;
  return v;
}

// -------------------- Game Core --------------------
void resetGame() {
  for (int i = 0; i < 8; i++) field[i] = 0;
  score = 0;
}

bool checkCollision(int x, int y) {
  for (int i = 0; i < current.len; i++) {
    int px = x + current.shape[i][0];
    int py = y + current.shape[i][1];
    if (px < 0 || px >= 8 || py < 0 || py >= 8) return true;
    if (field[py] & (1 << px)) return true;
  }
  return false;
}

void gameOver() {
  for (int i = 0; i < 6; i++) {
    for (int y = 0; y < 8; y++) {
      byte row = field[y];
      byte out = 0;
      for (int x = 0; x < 8; x++) {
        bool ledOn = (i % 2 == 0) && (row & (1 << x));
        if (ledOn) out |= (1 << x);
      }
      lc.setRow(y, out);
    }
    delay(300);
  }
  gameRunning = false;
}

void spawnBlock() {
  int r = random(7);
  switch (r) {
    case 0: current = {I[0], 4, 3, 0, 0, 'I'}; break;
    case 1: current = {O[0], 4, 3, 0, 0, 'O'}; break;
    case 2: current = {T[0], 4, 3, 0, 0, 'T'}; break;
    case 3: current = {L[0], 4, 3, 0, 0, 'L'}; break;
    case 4: current = {J[0], 4, 3, 0, 0, 'J'}; break;
    case 5: current = {S[0], 4, 3, 0, 0, 'S'}; break;
    case 6: current = {Z[0], 4, 3, 0, 0, 'Z'}; break;
  }
  if (checkCollision(current.x, current.y)) gameOver();
}

bool moveBlock(int dx, int dy) {
  if (!checkCollision(current.x + dx, current.y + dy)) {
    current.x += dx;
    current.y += dy;
    return true;
  }
  return false;
}

void placeBlock() {
  for (int i = 0; i < current.len; i++) {
    int px = current.x + current.shape[i][0];
    int py = current.y + current.shape[i][1];
    if (px >= 0 && px < 8 && py >= 0 && py < 8) {
      field[py] |= (1 << px);
    }
  }
}

void clearLines() {
  for (int y = 0; y < 8; y++) {
    if (field[y] == 0xFF) {
      for (int j = y; j > 0; j--) field[j] = field[j - 1];
      field[0] = 0;
      score += 10;
    }
  }
}

void draw() {
  for (int y = 0; y < 8; y++) {
    byte row = field[y];
    for (int i = 0; i < current.len; i++) {
      int px = current.x + current.shape[i][0];
      int py = current.y + current.shape[i][1];
      if (py == y && px >= 0 && px < 8) row |= (1 << px);
    }
    lc.setRow(y, row);
  }
}

void rotateBlock() {
  int nextRot = current.rotation + 1;
  int maxRot = 1;
  const int (*nextShape)[2] = nullptr;

  switch (current.type) {
    case 'I': maxRot = 2; nextShape = I[nextRot % maxRot]; break;
    case 'O': return;
    case 'T': maxRot = 4; nextShape = T[nextRot % maxRot]; break;
    case 'L': maxRot = 4; nextShape = L[nextRot % maxRot]; break;
    case 'J': maxRot = 4; nextShape = J[nextRot % maxRot]; break;
    case 'S': maxRot = 2; nextShape = S[nextRot % maxRot]; break;
    case 'Z': maxRot = 2; nextShape = Z[nextRot % maxRot]; break;
    default: return;
  }

  const int (*oldShape)[2] = current.shape;
  int oldRot = current.rotation;

  current.shape = nextShape;
  current.rotation = nextRot % maxRot;

  if (checkCollision(current.x, current.y)) {
    current.shape = oldShape;
    current.rotation = oldRot;
  }
}

// -------------------- Input Handling --------------------
void handleInput() {
  // ESP32 ADC default 0..4095
  int x = analogRead(VRx);
  int y = analogRead(VRy);

  // Left/right thresholds
  if (x < 1200) {
    moveBlock(1, 0);   // δΏη•™δ½ εŽŸζ₯ηš„β€œεε‘β€
    delay(150);
  } else if (x > 2800) {
    moveBlock(-1, 0);
    delay(150);
  }

  // Drop speed control
  int mapped = map(y, 2048, 4095, 0, 600);
  mapped = clampInt(mapped, 0, 600);
  dropInterval = 700 - mapped;

  // Rotate (active LOW)
  if (digitalRead(SW) == LOW) {
    rotateBlock();
    delay(200);
  }
}

void setup() {
  pinMode(SW, INPUT_PULLUP);

  lc.begin(8);   // intensity 0..15
  lc.clear();

  randomSeed((uint32_t)micros());
}

void loop() {
  // Press joystick button to start
  if (!gameRunning && digitalRead(SW) == LOW) {
    resetGame();
    spawnBlock();
    gameRunning = true;
    delay(200); // debounce
  }

  if (gameRunning) {
    handleInput();

    if (millis() - lastDrop > dropInterval) {
      if (!moveBlock(0, 1)) {
        placeBlock();
        clearLines();
        spawnBlock();
      }
      lastDrop = millis();
    }
    draw();
  }
}
