2.1.4 Potentiometer(MCP3008)
Note

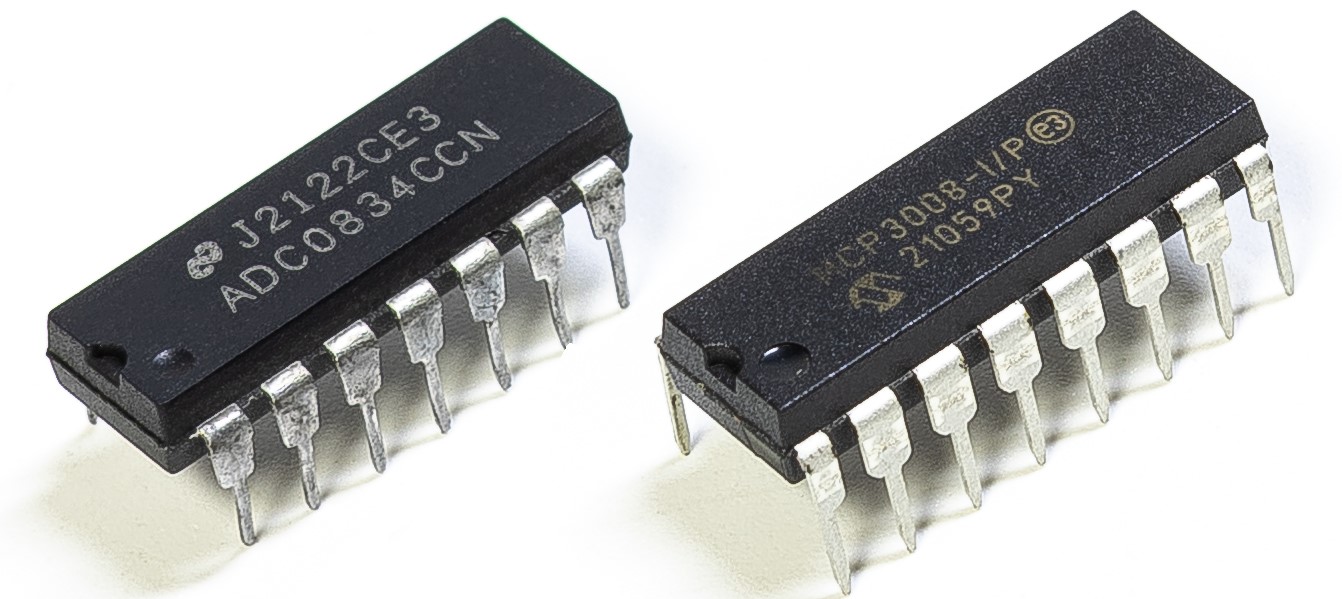

Depending on your kit version, please identify whether you have ADC0834 or MCP3008 and proceed with the matching section.
Introduction
The ADC function is used to convert analog signals into digital values. In this experiment, we use the MCP3008 ADC chip to perform this conversion. A potentiometer is used to generate a variable voltage, which changes the physical quantity. The MCP3008 then converts this analog voltage into a digital value that can be read and processed by the Raspberry Pi.
Required Components
In this project, we need the following components.
Principle
MCP3008
MCP3008 is a 10-bit successive approximation analog-to-digital converter (ADC) with 8 input channels and an SPI (Serial Peripheral Interface) communication protocol. It is capable of interfacing with a microcontroller to convert analog input signals into digital data for further processing.
Sequence of Operation
A conversion on the MCP3008 begins by setting the CS (chip select) pin low, which activates communication with the device. The microcontroller then sends a 3-byte control stream via the SPI interface to specify the configuration and select the input channel.
The first byte sent contains the start bit and the single/differential selection bit. The next bits indicate which of the 8 channels (CH0–CH7) to read from. Data is shifted into the device on each rising edge of the SPI clock (SCLK), and the conversion result is returned simultaneously.
A short delay is included internally for the selected input channel to settle before conversion begins. The MCP3008 then performs a 10-bit analog-to-digital conversion using a sample-and-hold circuit and a successive approximation register (SAR) comparator.
The conversion result is transmitted back to the microcontroller through the MISO (Master In Slave Out) line. The most significant bit (MSB) of the 10-bit result is sent first, followed by the remaining bits. The microcontroller reads the result over the SPI bus during this time.
After the full 10-bit digital value is shifted out, the MCP3008 completes the cycle and waits for the next command.
Potentiometer
Potentiometer is also a resistance component with 3 terminals and its resistance value can be adjusted according to some regular variation. Potentiometer usually consists of resistor and movable brush. When the brush is moving along the resistor, there is a certain resistance or voltage output depending on the displacement.
The functions of the potentiometer in the circuit are as follows:
Serving as a voltage divider
Potentiometer is a continuously adjustable resistor. When you adjust the shaft or sliding handle of the potentiometer, the movable contact will slide on the resistor. At this point, a voltage can be output depending on the voltage applied onto the potentiometer and the angle the movable arm has rotated to or the distance it moves.
Schematic Diagram
T-Board Name |
physical |
WiringPi |
BCM |
|---|---|---|---|
SPICE0 |
pin24 |
10 |
8 |
SPIMOSI |
pin19 |
12 |
10 |
SPIMISO |
pin21 |
13 |
9 |
SPISCLK |
pin23 |
14 |
11 |
GPIO22 |
pin15 |
3 |
22 |
Experimental Procedures
Step 1: Build the circuit.
Note
Please place the chip by referring to the corresponding position depicted in the picture. Note that the grooves on the chip should be on the left when it is placed.
For C Language Users
Step 2: Open the code file.
cd ~/davinci-kit-for-raspberry-pi/c/2.1.4-2/
Step 3: Compile the code.
gcc 2.1.4_Potentiometer.c -lwiringPi
Step 4: Run.
sudo ./a.out
After the code runs, rotate the knob on the potentiometer, the intensity of LED will change accordingly.
Note
If it does not work after running, or there is an error prompt: "wiringPi.h: No such file or directory", please refer to Install and Check the WiringPi.
Code
#include <wiringPi.h>
#include <wiringPiSPI.h>
#include <stdio.h>
#include <softPwm.h>
#define SPI_CHANNEL 0 // CE0
#define SPI_SPEED 1000000 // 1MHz
#define LedPin 3
int readADC(int channel) {
if (channel < 0 || channel > 7) return -1;
unsigned char buffer[3];
buffer[0] = 1; // Start bit
buffer[1] = (8 + channel) << 4; // Single-ended mode, channel
buffer[2] = 0;
wiringPiSPIDataRW(SPI_CHANNEL, buffer, 3);
int value = ((buffer[1] & 3) << 8) | buffer[2];
return value;
}
int main(void) {
if (wiringPiSetup() == -1) {
printf("WiringPi init failed!\n");
return 1;
}
if (wiringPiSPISetup(SPI_CHANNEL, SPI_SPEED) == -1) {
printf("SPI setup failed!\n");
return 1;
}
softPwmCreate(LedPin, 0, 100);
while (1) {
int analogVal = readADC(0); // CH0
printf("ADC Value: %d\n", analogVal);
int pwmVal = analogVal * 100 / 1023; // Normalize to 0–100
softPwmWrite(LedPin, pwmVal);
delay(100);
}
return 0;
}
Code Explanation
#define SPI_CHANNEL 0 // CE0
#define SPI_SPEED 1000000 // 1MHz
#define LedPin 3
Define the SPI channel as CE0 (chip enable 0), set the SPI speed to 1MHz, and assign GPIO3 to the LED pin.
int readADC(int channel) {
if (channel < 0 || channel > 7) return -1;
unsigned char buffer[3];
buffer[0] = 1; // Start bit
buffer[1] = (8 + channel) << 4; // Single-ended mode, channel
buffer[2] = 0;
wiringPiSPIDataRW(SPI_CHANNEL, buffer, 3);
int value = ((buffer[1] & 3) << 8) | buffer[2];
return value;
}
This function is used to read analog data from MCP3008.
First, it checks if the channel number is within the valid range (0 to 7).
It initializes a 3-byte array, where:
buffer[0] = 1: Start bit for MCP3008 communication.
buffer[1] = (8 + channel) << 4: Constructs the configuration byte for single-ended mode and selects the desired channel.
buffer[2] = 0: Placeholder byte to receive the result.
wiringPiSPIDataRW sends and receives data through the SPI channel.
The return value is extracted from the last two bytes using bitwise operations to obtain a 10-bit ADC result.
int main(void) {
if (wiringPiSetup() == -1) {
printf("WiringPi init failed!\n");
return 1;
}
if (wiringPiSPISetup(SPI_CHANNEL, SPI_SPEED) == -1) {
printf("SPI setup failed!\n");
return 1;
}
softPwmCreate(LedPin, 0, 100);
while (1) {
int analogVal = readADC(0); // CH0
printf("ADC Value: %d\n", analogVal);
int pwmVal = analogVal * 100 / 1023; // Normalize to 0–100
softPwmWrite(LedPin, pwmVal);
delay(100);
}
return 0;
}
In the main function:
wiringPiSetup() initializes the WiringPi library.
wiringPiSPISetup() initializes SPI communication on channel 0 at 1MHz.
softPwmCreate() sets up software PWM on GPIO3 with an initial duty cycle of 0 and a range of 0–100.
The program enters an infinite loop where:
It reads the ADC value from channel 0 (connected to a potentiometer).
Prints the ADC value to the terminal.
Converts the 10-bit ADC value to a PWM duty cycle between 0 and 100.
Writes the PWM value to the LED, so the brightness reflects the potentiometer’s position.
delay(100) pauses for 100 milliseconds before the next read/write cycle.
For Python Users
Step 2: Set up the SPI interface and install the spidev library (see SPI Configuration for detailed instructions). If you have already completed these steps, you can skip this.
Step 3: Open the code file
cd ~/davinci-kit-for-raspberry-pi/python
Step 4: Run.
sudo python3 2.1.4-2_Potentiometer.py
After the code runs, rotate the knob on the potentiometer, the intensity of LED will change accordingly.
Warning
If there is an error prompt RuntimeError: Cannot determine SOC peripheral base address, please refer to If gpiozero doesn’t work.
Code
Note
You can Modify/Reset/Copy/Run/Stop the code below. But before that, you need to go to source code path like davinci-kit-for-raspberry-pi/python. After modifying the code, you can run it directly to see the effect.
#!/usr/bin/env python3
import spidev
import time
import RPi.GPIO as GPIO
# GPIO pin for PWM output
PWM_PIN = 22
# Setup GPIO
GPIO.setmode(GPIO.BCM)
GPIO.setup(PWM_PIN, GPIO.OUT)
# Initialize PWM on GPIO22 at 1000Hz
pwm = GPIO.PWM(PWM_PIN, 1000)
pwm.start(0) # Start with 0% duty cycle
# Initialize SPI
spi = spidev.SpiDev()
spi.open(0, 0) # Bus 0, CE0
spi.max_speed_hz = 1000000
def read_adc(channel):
"""
Read analog value from MCP3008
:param channel: ADC channel (0-7)
:return: 10-bit integer (0-1023)
"""
if channel < 0 or channel > 7:
return -1
adc = spi.xfer2([1, (8 + channel) << 4, 0])
value = ((adc[1] & 3) << 8) | adc[2]
return value
def MAP(x, in_min, in_max, out_min, out_max):
"""
Map a value from one range to another
"""
return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min
try:
while True:
# Read analog value from CH0
res = read_adc(0)
print('res = %d' % res)
# Convert to 0–100% duty cycle
duty_cycle = MAP(res, 0, 1023, 0, 100)
# Update PWM duty cycle
pwm.ChangeDutyCycle(duty_cycle)
time.sleep(0.2)
except KeyboardInterrupt:
pass
finally:
pwm.stop()
GPIO.cleanup()
spi.close()
Code Explanation
RPi.GPIOis used to generate PWM signals to control an LED.spidevis used for SPI communication with the MCP3008.timeis used to add delays in the loop.#!/usr/bin/env python3 import spidev import time import RPi.GPIO as GPIO
Configure GPIO pin 22 for PWM output using
RPi.GPIO. Set up SPI communication with the MCP3008 (Bus 0, CE0) at 1 MHz.PWM_PIN = 22 GPIO.setmode(GPIO.BCM) GPIO.setup(PWM_PIN, GPIO.OUT) pwm = GPIO.PWM(PWM_PIN, 1000) # 1kHz frequency pwm.start(0) # Start with 0% duty cycle spi = spidev.SpiDev() spi.open(0, 0) spi.max_speed_hz = 1000000
This function reads analog data from the MCP3008 on the specified channel (0–7) using the SPI protocol. The result is a 10-bit integer ranging from 0 to 1023.
def read_adc(channel): if channel < 0 or channel > 7: return -1 adc = spi.xfer2([1, (8 + channel) << 4, 0]) value = ((adc[1] & 3) << 8) | adc[2] return value
This function maps a value from one numerical range to another. It’s used to scale ADC values to PWM duty cycle percentages.
def MAP(x, in_min, in_max, out_min, out_max): return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min
In the main loop, the program continuously reads analog data from channel 0 of the MCP3008, maps the value to a PWM range (0–100), and sets the LED brightness accordingly. The loop updates every 0.2 seconds. If interrupted (e.g., Ctrl+C), the program stops the PWM signal and cleans up the GPIO configuration.
try: while True: res = read_adc(0) print('res = %d' % res) duty_cycle = MAP(res, 0, 1023, 0, 100) pwm.ChangeDutyCycle(duty_cycle) time.sleep(0.2) except KeyboardInterrupt: pass finally: pwm.stop() GPIO.cleanup() spi.close()
