17. Text Vision Talk with Ollama

In this lesson, you will learn how to use Ollama, a tool for running large language and vision models locally. We will show you how to install Ollama, download a model, and connect PiCar-X to it.

With this setup, PiCar-X can take a camera snapshot and the model will see and tell — you can ask any question about the image, and the model will reply in natural language.

Before You Start

Make sure you‘ve completed:

Install All the Modules (Important) — Install robot-hat, vilib, picar-x modules, then run the script i2samp.sh.

1. Install Ollama (LLM) and Download Model

You can choose where to install Ollama:

On your Raspberry Pi (local run)
Or on another computer (Mac/Windows/Linux) in the same local network

Recommended models vs hardware

You can choose any model available on Ollama Hub. Models come in different sizes (3B, 7B, 13B, 70B…). Smaller models run faster and require less memory, while larger models provide better quality but need powerful hardware.

Check the table below to decide which model size fits your device.

Model size	Min RAM Required	Recommended Hardware
~3B parameters	8GB (16GB better)	Raspberry Pi 5 (16GB) or mid-range PC/Mac
~7B parameters	16GB+	Pi 5 (16GB, just usable) or mid-range PC/Mac
~13B parameters	32GB+	Desktop PC / Mac with high RAM
30B+ parameters	64GB+	Workstation / Server / GPU recommended
70B+ parameters	128GB+	High-end server with multiple GPUs

Install on Raspberry Pi

If you want to run Ollama directly on your Raspberry Pi:

Use a 64-bit Raspberry Pi OS
Strongly recommended: Raspberry Pi 5 (16GB RAM)

Run the following commands:

# Install Ollama
curl -fsSL https://ollama.com/install.sh | sh

# Pull a lightweight model (good for testing)
ollama pull llama3.2:3b

# Quick run test (type 'hi' and press Enter)
ollama run llama3.2:3b

# Serve the API (default port 11434)
# Tip: set OLLAMA_HOST=0.0.0.0 to allow access from LAN
OLLAMA_HOST=0.0.0.0 ollama serve

Install on Mac / Windows / Linux (Desktop App)

Download and install Ollama from Ollama Download Page
Open the Ollama app, go to the Model Selector, and use the search bar to find a model. For example, type llama3.2:3b (a small and lightweight model to start with).
After the download is complete, type something simple like “Hi” in the chat window, Ollama will automatically start downloading it when you first use it.

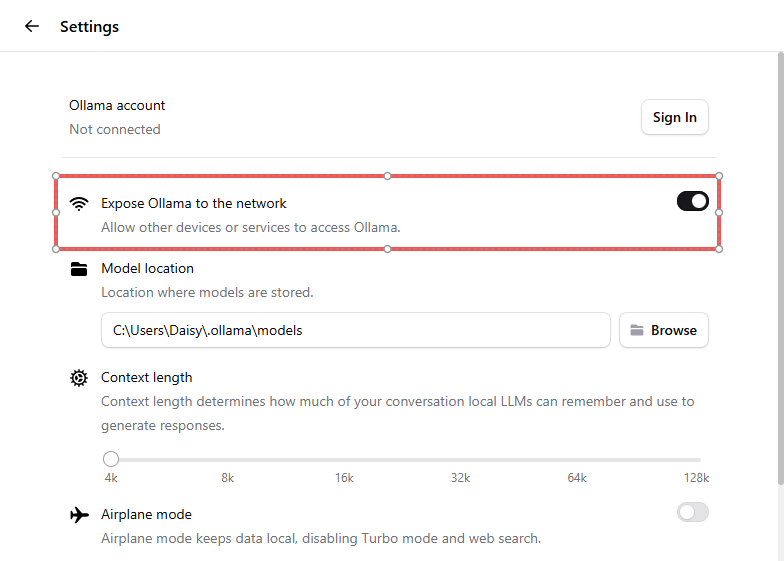

Go to Settings → enable Expose Ollama to the network. This allows your Raspberry Pi to connect to it over LAN.

Warning

If you see an error like:

Error: model requires more system memory ...

The model is too large for your machine. Use a smaller model or switch to a computer with more RAM.

2. Test Ollama

Once Ollama is installed and your model is ready, you can quickly test it with a minimal chat loop.

Steps

Create a new file:

cd ~/picar-x/example
nano test_llm_ollama.py

Paste the following code and save (Ctrl+X → Y → Enter):

from picarx.llm import Ollama

INSTRUCTIONS = "You are a helpful assistant."
WELCOME = "Hello, I am a helpful assistant. How can I help you?"

# If Ollama runs on the same Raspberry Pi, use "localhost".
# If it runs on another computer in your LAN, replace with that computer's IP address.
llm = Ollama(
    ip="localhost",
    model="llama3.2:3b"   # you can replace with any model
)

# Basic configuration
llm.set_max_messages(20)
llm.set_instructions(INSTRUCTIONS)
llm.set_welcome(WELCOME)

print(WELCOME)

while True:
    text = input(">>> ")
    if text.strip().lower() in {"exit", "quit"}:
        break

    # Response with streaming output
    response = llm.prompt(text, stream=True)
    for token in response:
        if token:
            print(token, end="", flush=True)
    print("")

Run the program:
```
python3 test_llm_ollama.py
```
Now you can chat with PiCar-X directly from the terminal.
- You can choose any model available on Ollama Hub, but smaller models (e.g. moondream:1.8b, phi3:mini) are recommended if you only have 8–16GB RAM.
- Make sure the model you specify in the code matches the model you have already pulled in Ollama.
- Type exit or quit to stop the program.
- If you cannot connect, ensure that Ollama is running and that both devices are on the same LAN if you are using a remote host.

3. Vision Talk with Ollama

In this demo, the Pi camera takes a snapshot each time you type a question. The program sends your typed text + the new photo to a local vision model via Ollama, and then streams the model’s reply in plain English. This is a minimal “see & tell” baseline you can later extend with color/face/QR checks.

Before You Start

Open the Ollama app (or run the service) and make sure a vision-capable model is pulled.
- If you have enough memory (≥16GB RAM), you may try llava:7b.
- If you only have 8GB RAM, prefer a smaller model such as moondream:1.8b or granite3.2-vision:2b.

Run the Demo

Go to the example folder and run the script:

cd ~/picar-x/example
python3 17.text_vision_talk.py

What happens when it runs:
- The program prints a welcome line and waits for your input (>>>).
- Every time you type anything (e.g., “hello”, “Is there yellow?”, “Any faces?”, “What is on the desk?”), it:
  - captures a photo from the Pi camera (saved to /tmp/llm-img.jpg),
  - sends your text + the photo to the vision model via Ollama,
  - streams back the model’s answer to the terminal.
- Type exit or quit to end the program.

Code

from picarx.llm import Ollama
from picamera2 import Picamera2
import time

"""
You need to set up Ollama first.

Note: At least 8GB RAM is recommended for small vision models (e.g., moondream:1.8b).
      For llava:7b, more memory is preferred (≥16GB).
"""

INSTRUCTIONS = "You are a helpful assistant."
WELCOME = "Hello, I am a helpful assistant. How can I help you?"

# If Ollama runs on the same Pi, use "localhost".
# If it runs on another computer in your LAN, replace with that computer's IP.
llm = Ollama(
    ip="localhost",          # e.g., "192.168.100.145" if remote
    model="llava:7b"         # change to "moondream:1.8b" or "granite3.2-vision:2b" for 8GB RAM
)

# Basic configuration
llm.set_max_messages(20)
llm.set_instructions(INSTRUCTIONS)
llm.set_welcome(WELCOME)

# Init camera
camera = Picamera2()
config = camera.create_still_configuration(
    main={"size": (1280, 720)},
)
camera.configure(config)
camera.start()
time.sleep(2)

print(WELCOME)

while True:
    input_text = input(">>> ")
    if input_text.strip().lower() in {"exit", "quit"}:
        break

    # Capture image
    img_path = "/tmp/llm-img.jpg"
    camera.capture_file(img_path)

    # Response with stream (text + image)
    response = llm.prompt(input_text, stream=True, image_path=img_path)
    for next_word in response:
        if next_word:
            print(next_word, end="", flush=True)
    print("")

Troubleshooting

I get an error like: `model requires more system memory …`.
- This means the model is too large for your device.
- Use a smaller model such as moondream:1.8b or granite3.2-vision:2b.
- Or switch to a machine with more RAM and expose Ollama to the network.
The code cannot connect to Ollama (connection refused).

Check the following:
- Make sure Ollama is running (ollama serve or the desktop app is open).
- If using a remote computer, enable Expose to network in Ollama settings.
- Double-check that the ip="..." in your code matches the correct LAN IP.
- Confirm both devices are on the same local network.
My Pi camera does not capture anything.
- Verify that Picamera2 is installed and working with a simple test script.
- Check that the camera cable is properly connected and enabled in raspi-config.
- Ensure your script has permission to write to the target path (/tmp/llm-img.jpg).
The output is too slow.
- Smaller models reply faster, but with simpler answers.
- You can lower the camera resolution (e.g., 640×480 instead of 1280×720) to speed up image processing.
- Close other programs on your Pi to free up CPU and RAM.
