Passive Buzzer

Introduction

In this project, we will learn how to make a passive buzzer play music by driving it with different frequencies. Passive buzzers, unlike active buzzers, require an external signal to produce sound.

Circuit Diagram

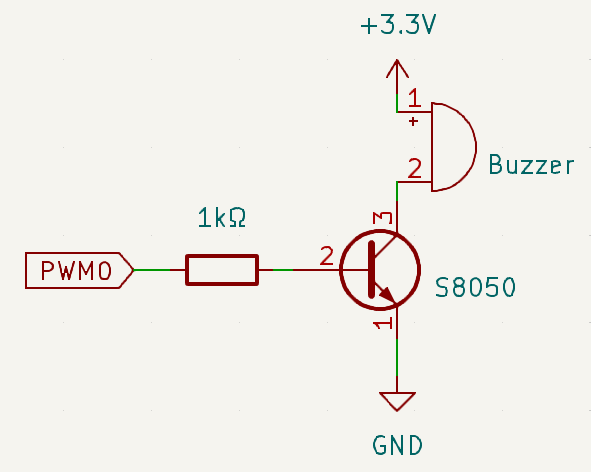

The circuit uses a passive buzzer, a NPN transistor, and a 1kΩ resistor. The resistor protects the transistor from excessive current. By varying the frequency of the GPIO pin connected to the transistor, the buzzer produces different sounds, enabling it to play music.

../_images/1.2.2_sch.png

Wiring Diagram

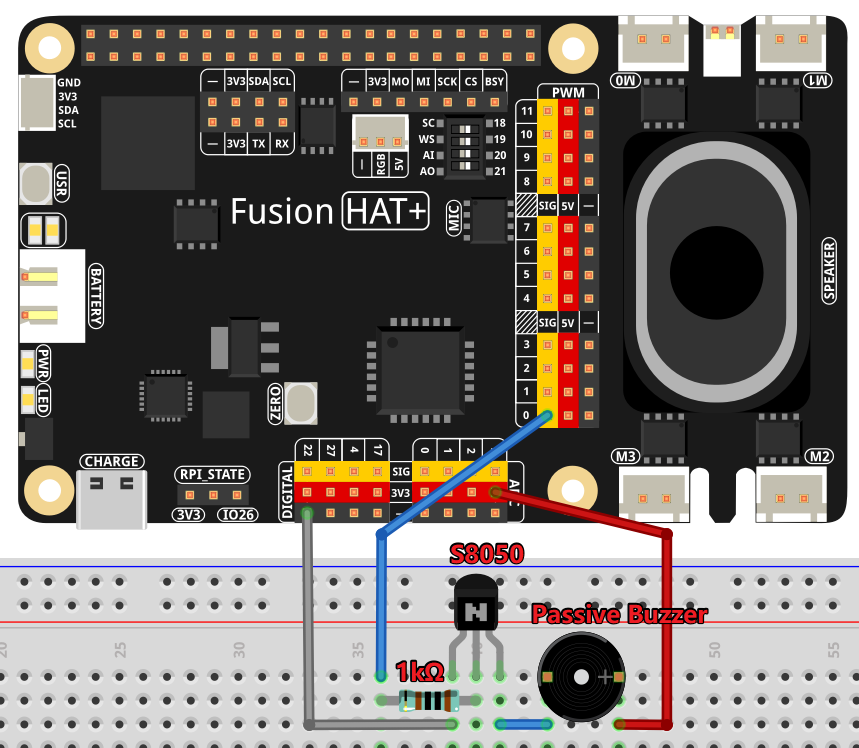

Follow these steps to build the circuit:

  1. Connect the base of the NPN transistor to PWM0 through the resistor.

  2. Connect the emitter of the transistor to the power supply (+).

  3. Connect the collector of the transistor to one terminal of the passive buzzer.

  4. Connect the other terminal of the buzzer to the ground (-).

../_images/1.2.2_bb.png

Code

The following Python code generates musical notes using a passive buzzer:

#!/usr/bin/env python3
from fusion_hat.modules import Buzzer
from fusion_hat.pwm import PWM
from time import sleep

# Initialize a TonalBuzzer connected to PWM 0
tb = Buzzer(PWM('P0'))  # Update this pin number based on your setup

def play(tune):
   """
   Play a musical tune using the buzzer.
   :param tune: List of tuples (note, duration), where each tuple represents a note and its duration.
   """
   for note, duration in tune:
      print(note)  # Output the current note being played
      tb.play(note,float(duration))  # Play the note on the buzzer
   tb.off()  # Stop playing after the tune is complete

# Define a musical tune as a sequence of notes and durations
tune = [('C#4', 0.2), ('D4', 0.2), (None, 0.2),
   ('Eb4', 0.2), ('E4', 0.2), (None, 0.6),
   ('F#4', 0.2), ('G4', 0.2), (None, 0.6),
   ('Eb4', 0.2), ('E4', 0.2), (None, 0.2),
   ('F#4', 0.2), ('G4', 0.2), (None, 0.2),
   ('C4', 0.2), ('B4', 0.2), (None, 0.2),
   ('F#4', 0.2), ('G4', 0.2), (None, 0.2),
   ('B4', 0.2), ('Bb4', 0.5), (None, 0.6),
   ('A4', 0.2), ('G4', 0.2), ('E4', 0.2),
   ('D4', 0.2), ('E4', 0.2)]


try:
   play(tune)  # Execute the play function to start playing the tune

except KeyboardInterrupt:
   # Handle KeyboardInterrupt for graceful termination
   pass

This Python script plays a musical tune using a passive buzzer connected to PWM 0. When executed:

  1. The script iterates through a predefined sequence of musical notes (tune), playing each note for a specified duration.

  2. The notes are output to the console as they are played, providing a visual reference.

  3. The tune stops automatically once all notes are played. The buzzer produces no sound during pauses (when the note is None).

  4. The program can be interrupted gracefully using Ctrl+C.
