6. Hand Gesture Recognizer

1. Overview

In the previous chapter, we used MediaPipe Hands to obtain 21 hand landmarks and visualize the hand skeleton.

This chapter introduces MediaPipe Tasks – Gesture Recognizer, which can directly output semantic gesture labels such as:

  • Thumb_Up

  • Open_Palm

  • Victory

  • Closed_Fist

By combining:

  • Picamera2 for video capture

  • MediaPipe Hands for landmark visualization

  • Gesture Recognizer for classification

we can achieve real-time gesture recognition with both skeleton rendering and label display.

Gesture Recognizer

2. How It Works

The program performs the following steps:

  1. Capture video frames using Picamera2.

  2. (Optional) Use MediaPipe Hands to draw landmarks.

  3. Use MediaPipe Tasks – Gesture Recognizer in VIDEO mode.

  4. For each detected hand, obtain:

    • Gesture category list (label + confidence)

    • Handedness (Left / Right)

    • Normalized landmarks

  5. Select the top-1 gesture and draw “label + confidence score” above the corresponding hand.

Note

This chapter uses the MediaPipe Tasks API (0.10+).

3. Model

Gesture Recognizer requires a model file:

gesture_recognizer.task

The model file is already included in the example directory. Please use the provided version.

The built-in model supports the following gesture labels:

  • 0 → Unknown

  • 1 → Closed_Fist

  • 2 → Open_Palm

  • 3 → Pointing_Up

  • 4 → Thumb_Down

  • 5 → Thumb_Up

  • 6 → Victory

  • 7 → ILoveYou

4. Run the Code

Important

Before you start, make sure:

  • The pan-tilt is assembled

  • You can access the Raspberry Pi desktop

  • The code package is installed

  • Fusion HAT+ is installed and configured

  • OpenCV is installed

For detailed instructions, see 0. Setup OpenCV.

  1. Open the terminal and enter the following command:

    sudo python3 ~/ai-lab-kit/mediapipe/mp_hand_gesture.py

  2. After running the program, a window titled “Show Video” opens and displays the live camera feed.

    When one or two hands appear in front of the camera, the program:

    • Detects and draws the 21 hand landmarks and connection lines (hand skeleton) in real time.

    • Runs the Gesture Recognizer model on each frame to classify the gesture.

    If a gesture is recognized with a score above SCORE_THRESHOLD (default 0.5), the program shows a label near the corresponding hand, including:

    • Handedness (Left/Right)

    • Gesture name (for example, Thumb_Up, Open_Palm, Victory)

    • Confidence score (for example, 0.87)

    A thin bounding box is also drawn around the hand area to make the label placement clearer.

    As you change hand poses, the gesture label and score update continuously in real time.

    If no hand is detected, or the gesture confidence is below the threshold, only the hand skeleton (or the raw camera feed) is shown without gesture labels.

    Press q to exit the program. The camera stops and the OpenCV window closes automatically.

5. Complete Code

from picamera2 import Picamera2, Preview
import cv2
import numpy as np
import mediapipe.python.solutions.hands as mp_hands
import mediapipe.python.solutions.drawing_utils as drawing
import mediapipe.python.solutions.drawing_styles as drawing_styles

# Import MediaPipe Tasks (Gesture Recognizer)
import mediapipe as mp
from mediapipe.tasks import python
from mediapipe.tasks.python import vision

from pathlib import Path

# --------------------- Settings ---------------------
BASE_DIR = Path(__file__).resolve().parent
GESTURE_MODEL_PATH = str(BASE_DIR / "gesture_recognizer.task")  # Path to the gesture model
SCORE_THRESHOLD = 0.5                           # Show gestures above this score
# ---------------------------------------------------

# Initialize the Hands model (kept for landmark drawing)
hands = mp_hands.Hands(
    static_image_mode=False,
    max_num_hands=2,
    min_detection_confidence=0.5
)

# Initialize Gesture Recognizer (VIDEO mode for streaming)
BaseOptions = python.BaseOptions
GestureRecognizerOptions = vision.GestureRecognizerOptions
RunningMode = vision.RunningMode

base_options = BaseOptions(model_asset_path=GESTURE_MODEL_PATH)
gr_options = GestureRecognizerOptions(
    base_options=base_options,
    running_mode=RunningMode.VIDEO
)
recognizer = vision.GestureRecognizer.create_from_options(gr_options)

# Open the camera
picam2 = Picamera2()
config = picam2.create_preview_configuration(
   main={"size": (640, 480), "format": "XRGB8888"} ,
)

picam2.configure(config)
picam2.start()

print("Streaming... press 'q' to quit")

# (Optional) helper to draw a label near a hand bounding box computed from landmarks
def draw_gesture_label(frame_bgr, norm_landmarks, text, color=(0, 175, 255)):
    """
    norm_landmarks: list of 21 normalized landmarks (x,y in [0,1]).
    We compute a tight bbox to place the gesture text.
    """
    if not norm_landmarks:
        return
    h, w = frame_bgr.shape[:2]
    xs = [int(lm.x * w) for lm in norm_landmarks]
    ys = [int(lm.y * h) for lm in norm_landmarks]
    x1, y1 = max(0, min(xs)), max(0, min(ys))
    x2, y2 = min(w-1, max(xs)), min(h-1, max(ys))
    cv2.rectangle(frame_bgr, (x1, y1), (x2, y2), color, 1)
    (tw, th), _ = cv2.getTextSize(text, cv2.FONT_HERSHEY_SIMPLEX, 0.7, 2)
    y_text = max(0, y1 - th - 6)
    cv2.rectangle(frame_bgr, (x1, y_text), (x1 + tw + 6, y_text + th + 6), color, -1)
    cv2.putText(frame_bgr, text, (x1 + 3, y_text + th + 2),
                cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0,0,0), 2, cv2.LINE_AA)

while True:
    frame_bgra = picam2.capture_array()               # XRGB8888 to BGRA
    frame_bgr  = cv2.cvtColor(frame_bgra, cv2.COLOR_BGRA2BGR)

    # Convert the frame from BGR to RGB (required by MediaPipe)
    frame_rgb = cv2.cvtColor(frame_bgr, cv2.COLOR_BGR2RGB)

    # ---- A) Run legacy Hands (for landmark drawing you already have) ----
    hands_detected = hands.process(frame_rgb)

    # ---- B) Run Gesture Recognizer (direct gesture labels) ----
    mp_image = mp.Image(image_format=mp.ImageFormat.SRGB, data=frame_rgb)
    ts_ms = int((cv2.getTickCount() / cv2.getTickFrequency()) * 1000)
    gesture_result = recognizer.recognize_for_video(mp_image, ts_ms)

    # Convert the frame back from RGB to BGR (required by OpenCV)
    frame = cv2.cvtColor(frame_rgb, cv2.COLOR_RGB2BGR)

    # If hands are detected, draw landmarks and connections on the frame
    if hands_detected.multi_hand_landmarks:
        for hand_landmarks in hands_detected.multi_hand_landmarks:
            drawing.draw_landmarks(
                frame,
                hand_landmarks,
                mp_hands.HAND_CONNECTIONS,
                drawing_styles.get_default_hand_landmarks_style(),
                drawing_styles.get_default_hand_connections_style(),
            )

    # ---- C) Overlay gesture names on top of each detected hand ----
    if gesture_result and getattr(gesture_result, "gestures", None):
        for i, gesture_list in enumerate(gesture_result.gestures):
            if not gesture_list:
                continue
            top = gesture_list[0]
            label = top.category_name  # e.g., "Thumb_Up"
            score = top.score or 0.0
            if score < SCORE_THRESHOLD:
                continue

            hand_label = ""
            if gesture_result.handedness and i < len(gesture_result.handedness):
                if gesture_result.handedness[i]:
                    hand_label = gesture_result.handedness[i][0].category_name or ""

            text = f"{hand_label} {label} ({score:.2f})".strip()

            hand_lms = None
            if gesture_result.hand_landmarks and i < len(gesture_result.hand_landmarks):
                hand_lms = gesture_result.hand_landmarks[i]

            if hand_lms:
                draw_gesture_label(frame, hand_lms, text)
            else:
                cv2.putText(frame, text, (20, 40 + 30*i),
                            cv2.FONT_HERSHEY_SIMPLEX, 0.8, (0, 175, 255), 2, cv2.LINE_AA)

    # Display the frame with annotations
    cv2.imshow("Show Video", frame)
    if cv2.waitKey(1) & 0xff == ord('q'):
        break

# Release the camera
try:
    picam2.stop_preview()
except Exception:
    pass
picam2.stop()
cv2.destroyAllWindows()

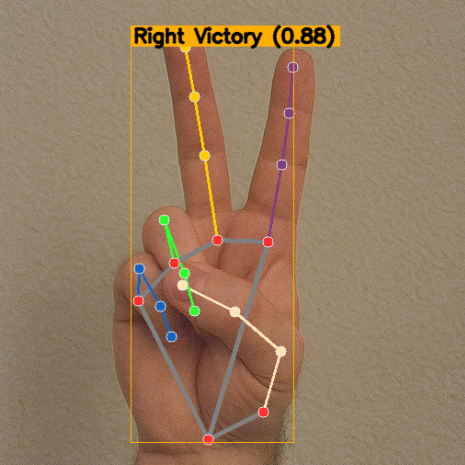

After running the script, the window will display the hand skeleton (optional) and gesture text boxes. When a gesture matching the model’s categories is recognized, it will display above the corresponding hand’s bounding box:

  • Left/Right hand (handedness)

  • Gesture name (e.g., Thumb_Up)

  • Confidence score (0~1)

6. Code Explanation

This example combines two parts:

  • Hands (Solutions API): used for drawing the hand skeleton (21 landmarks + connections).

  • Gesture Recognizer (Tasks API): used for predicting a gesture label such as Thumb_Up or Open_Palm.

High-level flow

  1. Initialize Hands for landmark drawing (optional but helpful for visualization).

  2. Load the Gesture Recognizer model (gesture_recognizer.task) and enable VIDEO mode.

  3. Start the camera and process frames in a loop:

    • Convert the frame to RGB (MediaPipe requires RGB).

    • Run Hands to draw the skeleton.

    • Run Gesture Recognizer to get label + score for each hand.

    • Draw the label near the corresponding hand.

  4. Press q to exit and release resources.

Key points to understand

  • Model file

    Gesture Recognizer requires gesture_recognizer.task. Make sure the model file is placed in the same folder as the script (or update the path).

  • VIDEO mode requires timestamps

    recognize_for_video() needs a continuously increasing timestamp in milliseconds. In this example, we generate it using OpenCV tick time.

  • Show labels with a confidence threshold

    Only gestures with score >= SCORE_THRESHOLD are displayed. This avoids showing unstable predictions.

7. Parameters and Tuning

Parameter

Description

Suggestion

SCORE_THRESHOLD

Gestures below this score are ignored

Increase to reduce false positives; decrease to improve recall

max_num_hands

Number of hands to detect simultaneously

2 is sufficient for most scenarios

running_mode=VIDEO

Video stream mode, requires timestamp

Keep using (streaming recognition is more stable)

Resolution

Affects speed and accuracy

Recommended 640×480 or lower on Raspberry Pi for better FPS

8. Troubleshooting

  • FileNotFoundError: gesture_recognizer.task

    This usually means the model file path is incorrect. Make sure the model file is placed in the same directory as the script, or update GESTURE_MODEL_PATH accordingly.

  • ImportError: cannot import name 'vision'

    This error indicates that the MediaPipe version is outdated. Upgrade MediaPipe to version 0.10 or later using:

    pip install --upgrade mediapipe

  • Recognized category differs from expectation

    The model category set may differ, or lighting conditions may affect recognition. Try improving lighting, simplifying the background, or switching to a different model version.

  • Low frame rate

    Raspberry Pi performance may be limited. Reduce resolution, disable skeleton drawing, or close unnecessary background processes.

9. Summary

  • Gesture Recognizer enables real-time semantic gesture recognition on Raspberry Pi;

  • Combined with Hands skeleton rendering, it’s both intuitive and easy to debug;

  • By adjusting thresholds and resolution, a balance between “stability / speed” can be achieved;

  • Future possibilities:

    • Map different gestures to specific commands (shortcuts, GPIO control, etc.);

    • Train custom gesture models for specific scenarios.
