5.9 ShiftOut(LED)

shiftOut() will make 74HC595 output 8 digital signals. It outputs the last bit of the binary number to Q0, and the output of the first bit to Q7. In other words, writing the binary number “00000001” will make Q0 output high level and Q1~Q7 output low level.

In this project, you will learn how to use 74HC595. 74HC595 consists of an 8−bit shift register and a storage register with three−state parallel outputs. It converts serial input into parallel output so you can save IO ports of an MCU.

Specifically, 74hc595 can replace 8 pins for digital signal output by writing an 8-bit binary number.

Required Components

In this project, we need the following components.

It’s definitely convenient to buy a whole kit, here’s the link:

Name

ITEMS IN THIS KIT

LINK

3 in 1 Starter Kit

380+

3 in 1 Starter Kit

You can also buy them separately from the links below.

COMPONENT INTRODUCTION

PURCHASE LINK

SunFounder R3 Board

BUY

Breadboard

BUY

Jumper Wires

BUY

Resistor

BUY

LED

BUY

74HC595

BUY

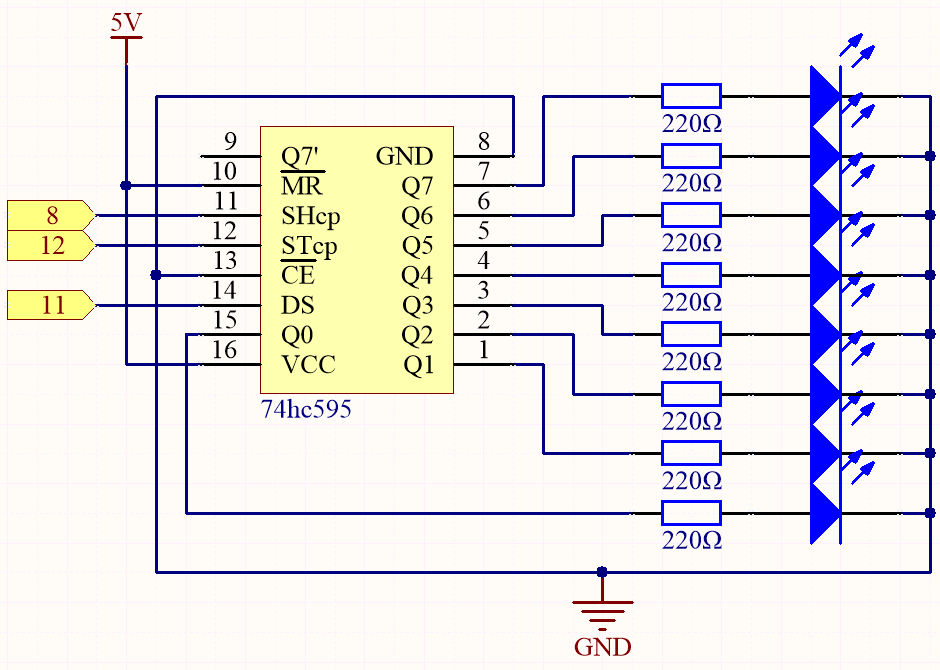

Schematic

../_images/circuit_6.4_74hc595.png

  • When MR (pin10) is high level and OE (pin13) is low level, data is input in the rising edge of SHcp and goes to the memory register through the rising edge of SHcp.

  • If the two clocks are connected together, the shift register is always one pulse earlier than the memory register.

  • There is a serial shift input pin (Ds), a serial output pin (Q) and an asynchronous reset button (low level) in the memory register.

  • The memory register outputs a Bus with a parallel 8-bit and in three states.

  • When OE is enabled (low level), the data in memory register is output to the bus(Q0 ~ Q7).

Wiring

../_images/74hc595_bb.jpg

Code

Note

  • Open the 5.9.shiftout_led.ino file under the path of 3in1-kit\basic_project\5.9.shiftout_led.

  • Or copy this code into Arduino IDE.

  • Or upload the code through the Arduino Web Editor.

When you finish uploading the codes to the R3 board, you can see the LEDs turning on one after another.

How it works?

Declare an array, store several 8 bit binary numbers that are used to change the working state of the eight LEDs controlled by 74HC595.

int datArray[] = {B00000000, B00000001, B00000011, B00000111, B00001111, B00011111, B00111111, B01111111, B11111111};

Set STcp to low level first and then high level. It will generate a rising edge pulse of STcp.

digitalWrite(STcp,LOW);

shiftOut() is used to shift out a byte of data one bit at a time, which means to shift a byte of data in datArray[num] to the shifting register with the DS pin. MSBFIRST means to move from high bits.

shiftOut(DS,SHcp,MSBFIRST,datArray[num]);

After digitalWrite(STcp,HIGH) is run, the STcp will be at the rising edge. At this time, the data in the shift register will be moved to the memory register.

digitalWrite(STcp,HIGH);

A byte of data will be transferred into the memory register after 8 times. Then the data of memory register are output to the bus (Q0-Q7). For example, shiftout B00000001 will light up the LED controlled by Q0 and turn off the LED controlled by Q1~Q7.
