1.3 Getting to Know Your Arduino Board

Welcome to your next step in the Arduino journey! In your hands is an Arduino board, a tool that will help you turn your clever ideas into real projects. Although this board may look a little different from others, it functions just the same. The Arduino community loves to share, which means this board was made following open-source blueprints available to everyone.

Think of the amazing projects you can create—whether it’s a mini robot, a custom-made game, or a smart device for your room. Arduino is all about making those ideas possible. It’s a compact platform filled with big possibilities. Let’s get to know the board and all its parts so you can start creating.

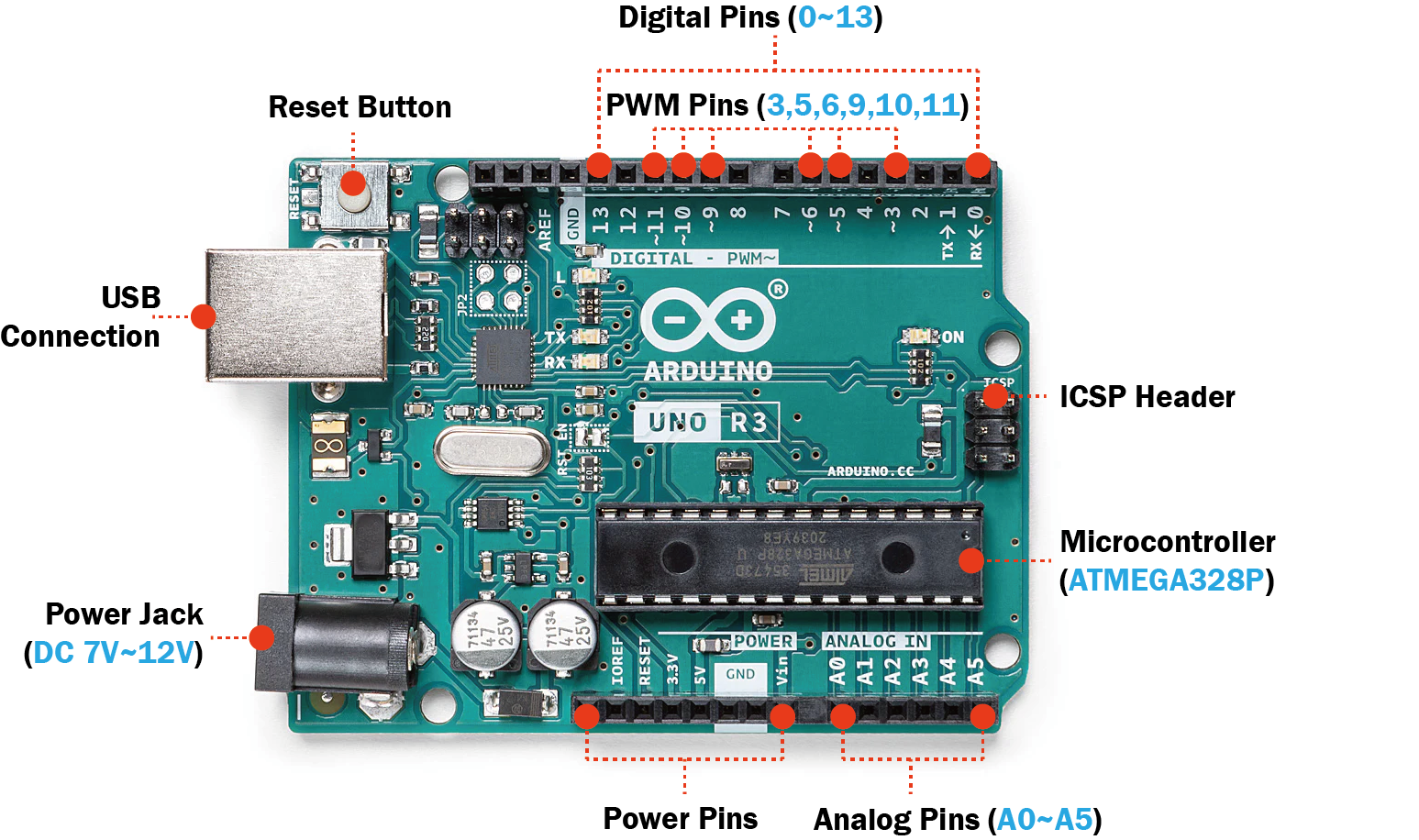

../_images/1_introduce_board.png

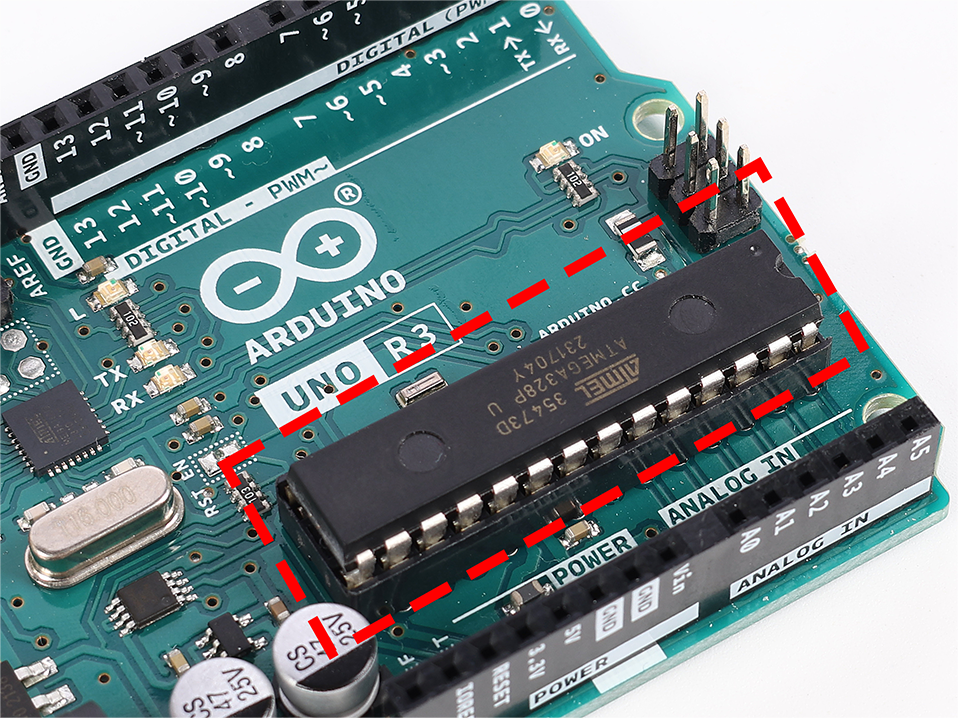

The Core: Microcontroller

The microcontroller is the main chip on your Arduino. Think of it as the board’s brain where all the thinking happens. It processes your commands and controls the pins, which interact with lights, motors, and sensors.

../_images/1_uno_mcu.png

Pins: Connecting and Controlling

Power Pins

These pins supply power to your creations. They have labels like “3.3V,” “5V,” and “GND,” each providing different power levels for your projects. The “Reset” pin acts like a restart button, resetting everything back to the beginning.

../_images/1_uno_power_pin.png

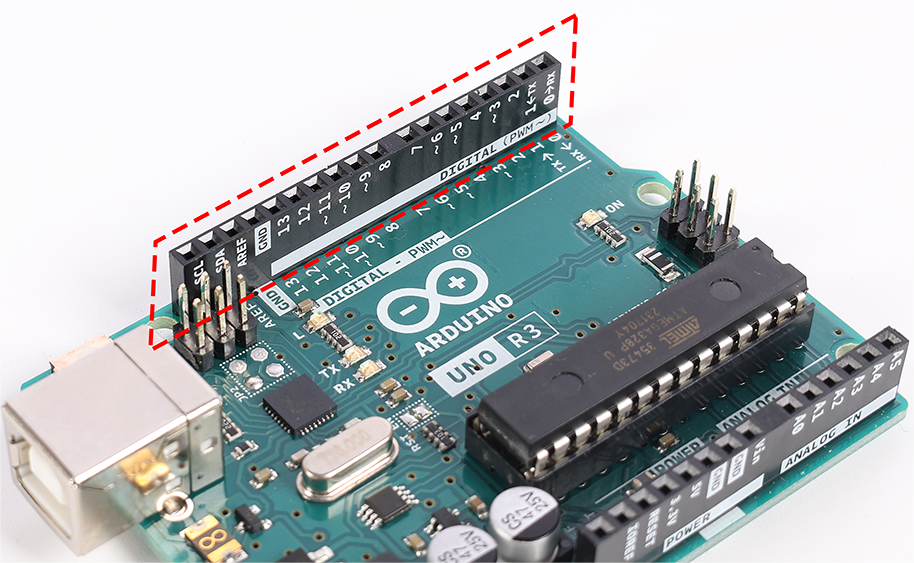

Digital Pins

Digital pins act like little switches that can be turned on and off. You’ll use them to control things like LEDs or to read button presses. Some of them can even control how much power they send, which is useful for dimming lights or controlling motor speeds.

../_images/1_uno_digital_pin.png

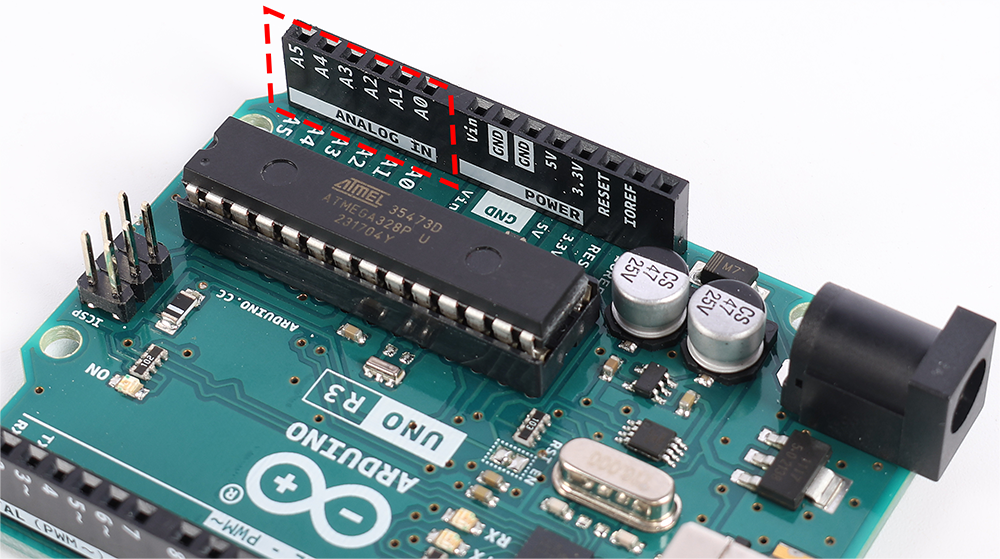

Analog Pins

These pins can read different levels of power, which means they’re great for reading from sensors. They can measure how bright a light is, how warm something is, or how much pressure you’re applying.

../_images/1_uno_analog_pin.png

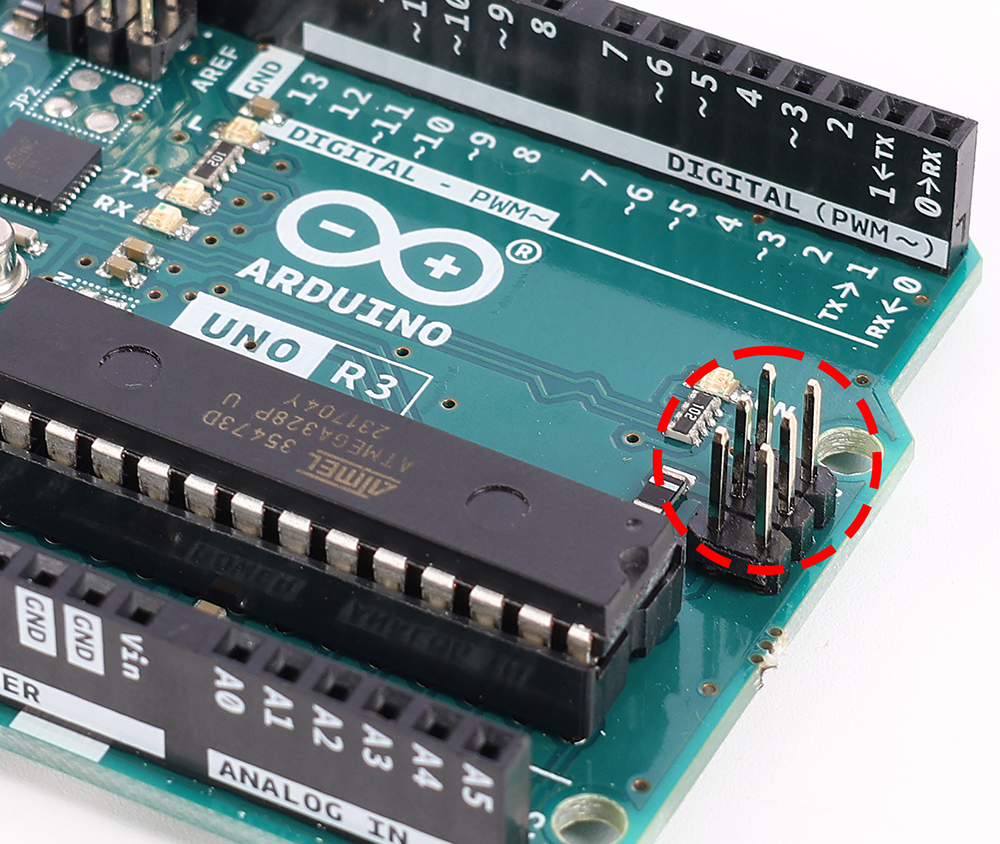

ICSP Header

This set of pins is a bit like a secret passage for programming your Arduino in a special way. It’s not commonly used, but it’s there if you need it.

../_images/1_uno_icsp_header.png

Ports: Connecting Your Board

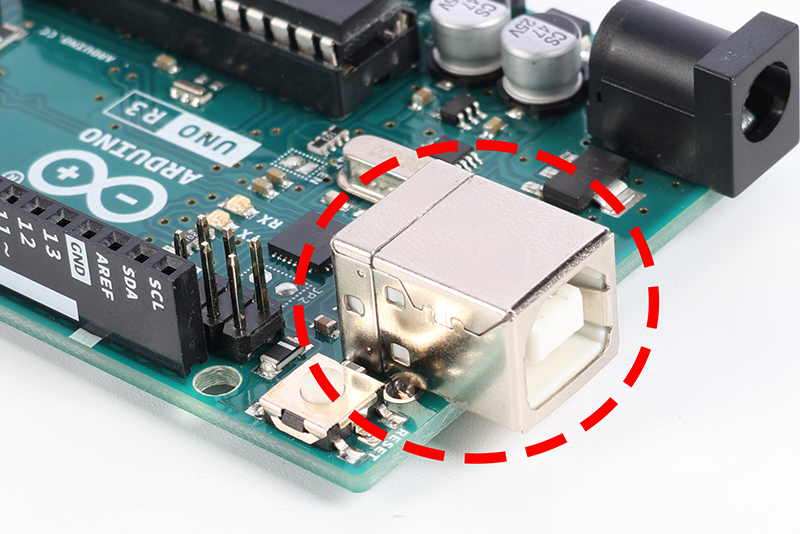

USB Connection

This port connects your Arduino to your computer, allowing you to upload programs and let your board know what you want it to do.

../_images/1_uno_usb_port.png

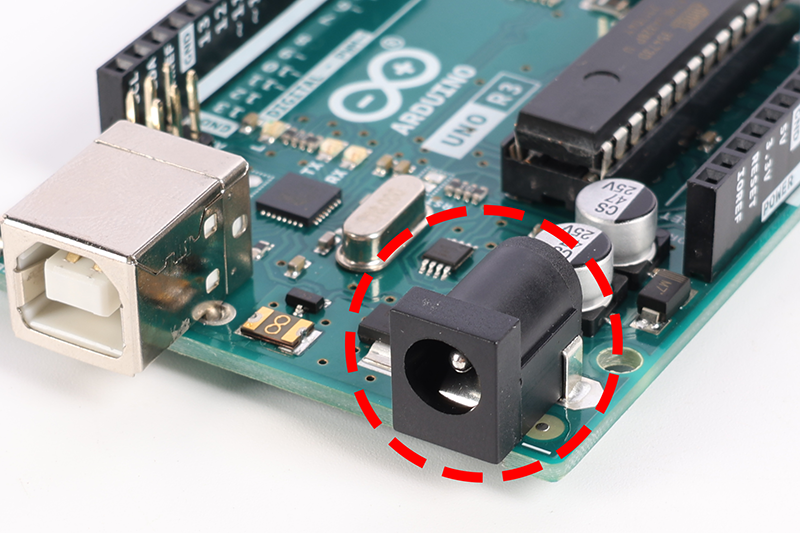

Power Jack

This is where you can plug in an external power source, like a battery, to make your Arduino work without a computer.

../_images/1_uno_power_jack.png

Other Key Components

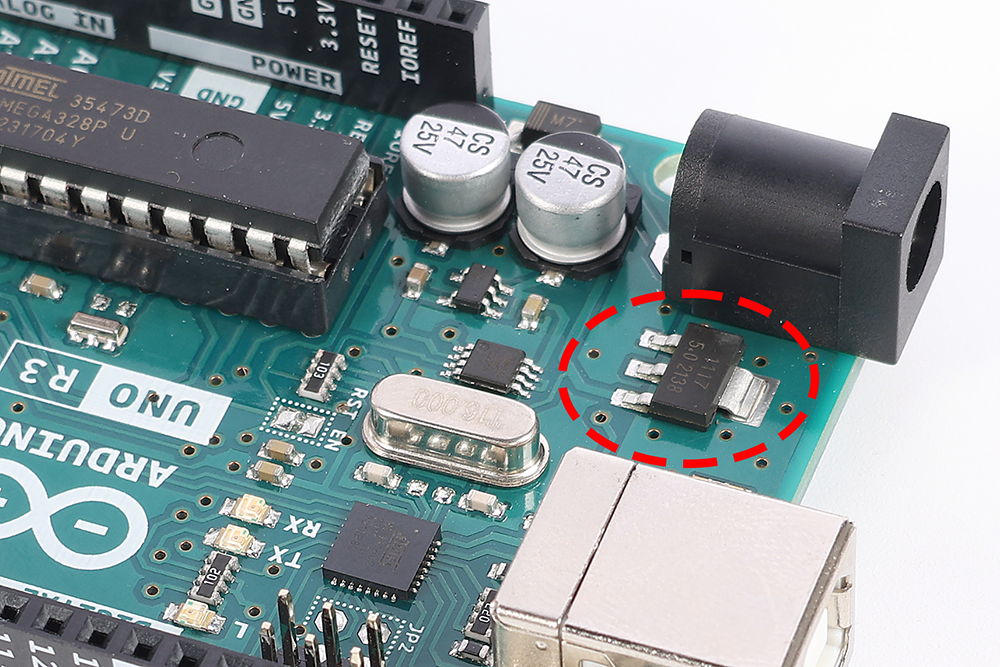

5-volt Voltage Regulator

This part makes sure your Arduino gets just the right amount of power, keeping everything running smoothly.

../_images/1_uno_voltage_regulator.png

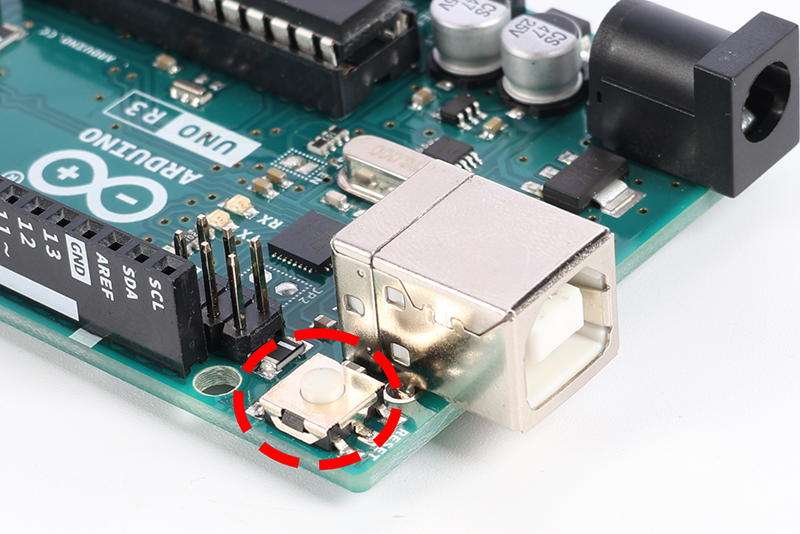

Reset Switch

The reset button lets you start your program over, right from the beginning, with just a push.

../_images/1_uno_reset_switch.png

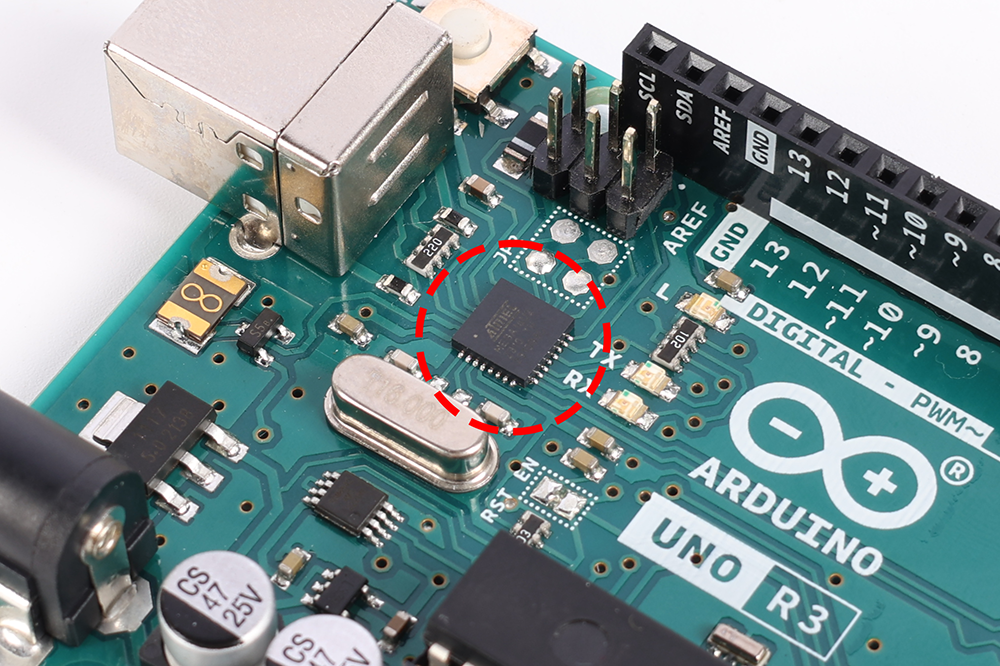

USB Interface Chip

This is what talks to the USB port, helping your computer and Arduino understand each other.

../_images/1_uno_usb_chip.png

Understanding these parts will help you get the most out of your Arduino board. So let’s get started on this learning adventure together!
