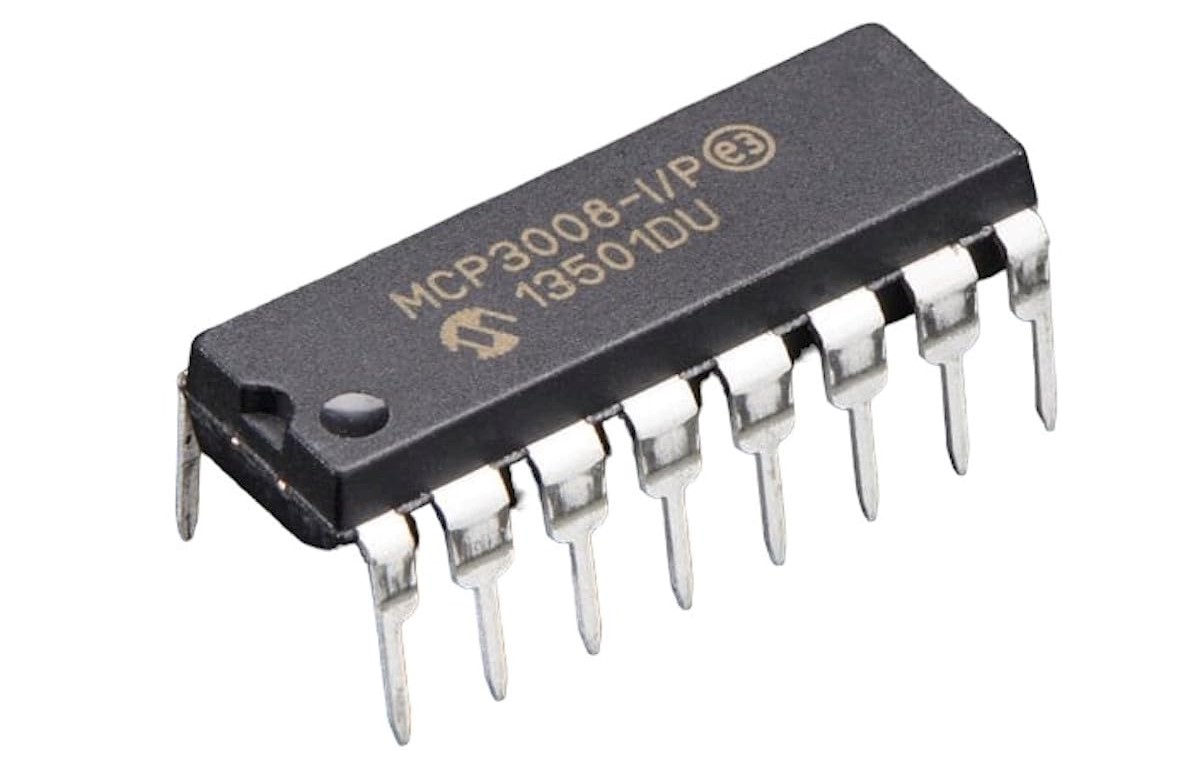

MCP3008

MCP3008 is a 10-bit successive approximation analog-to-digital converter (ADC) with 8 input channels and an SPI (Serial Peripheral Interface) communication protocol. It is capable of interfacing with a microcontroller to convert analog input signals into digital data for further processing.

../../_images/MCP30081.jpg

Sequence of Operation

A conversion on the MCP3008 begins by setting the CS (chip select) pin low, which activates communication with the device. The microcontroller then sends a 3-byte control stream via the SPI interface to specify the configuration and select the input channel.

The first byte sent contains the start bit and the single/differential selection bit. The next bits indicate which of the 8 channels (CH0–CH7) to read from. Data is shifted into the device on each rising edge of the SPI clock (SCLK), and the conversion result is returned simultaneously.

A short delay is included internally for the selected input channel to settle before conversion begins. The MCP3008 then performs a 10-bit analog-to-digital conversion using a sample-and-hold circuit and a successive approximation register (SAR) comparator.

The conversion result is transmitted back to the microcontroller through the MISO (Master In Slave Out) line. The most significant bit (MSB) of the 10-bit result is sent first, followed by the remaining bits. The microcontroller reads the result over the SPI bus during this time.

After the full 10-bit digital value is shifted out, the MCP3008 completes the cycle and waits for the next command.

../../_images/MCP3008detail1.png
