ASSEMBLY INSTRUCTIONS๏ƒ

Step1

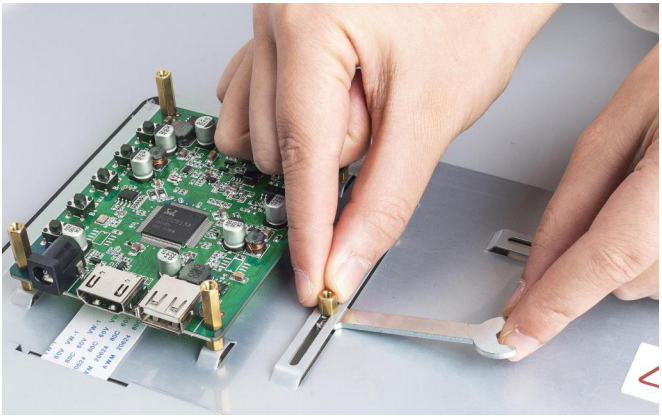

Fix the Raspberry Pi (or other boards) on the screen back case. There are a vertical slot and a horizontal one on the back of the screen, so you can fix boards with different sizes by moving the nuts and 2.5*6 standoffs with the small wrench.

_images/inch5.png

Step2

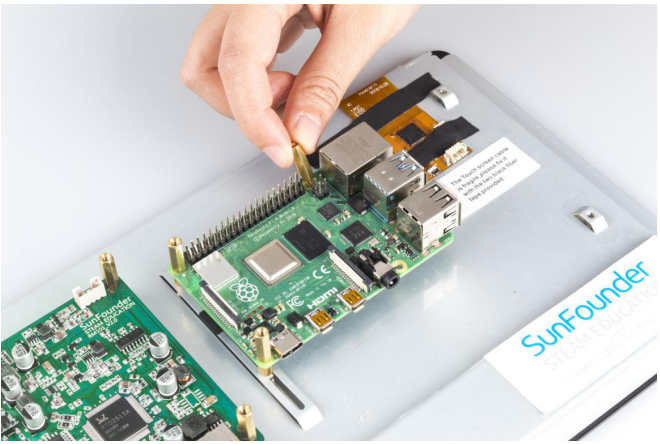

If you want to use a Raspberry Pi with the screen, then you donโ€™t need to adjust the standoffs since they are preset for it. Just place the Raspberry Pi on the plate and fasten them with 2.5*14.4 standoffs.

_images/inch6.png

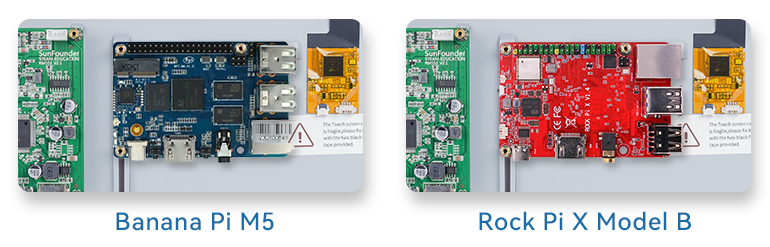

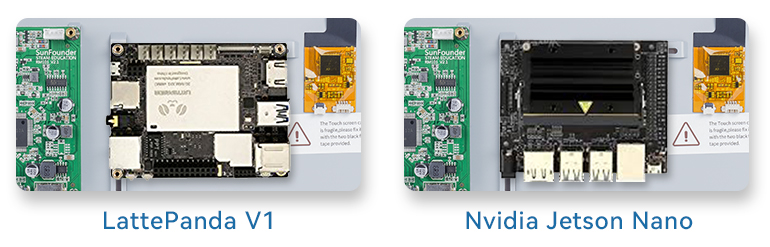

Of course you also adjust the position of the standoffs to mount other boards.

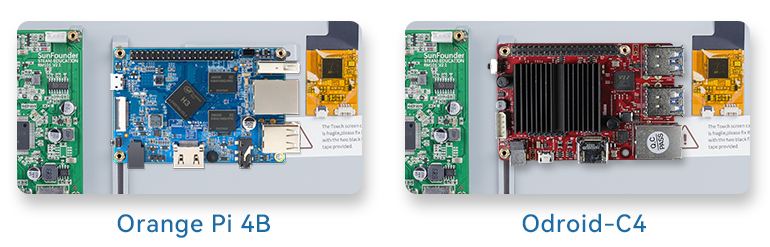

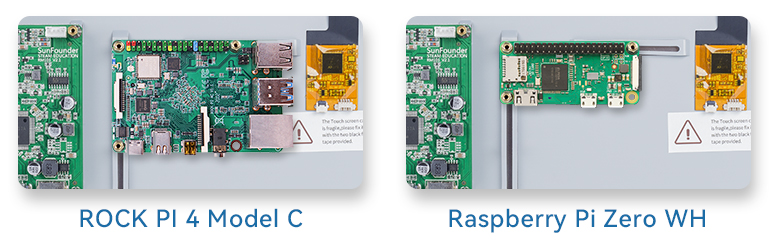

_images/4888.jpg _images/5616.jpg _images/48958.jpg _images/495456.jpg

Step3

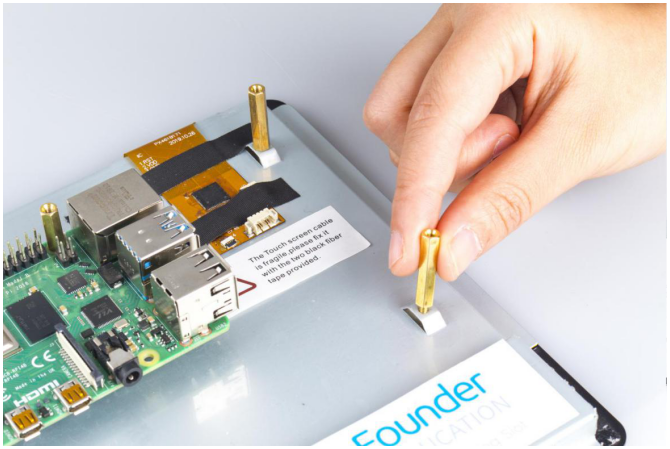

Insert the two 2.5*22 standoffs into the holes on the back to keep the screen balanced.

_images/inch7.png

Step4

Connect the HDMI port of the Raspberry Pi and the screen via an HDMI cable.

Note

In this kit, 2 types of HDMI cables and 2 types of power cords of Raspberry Pi are provided for Raspberry Pi 3 and Raspberry Pi 4.

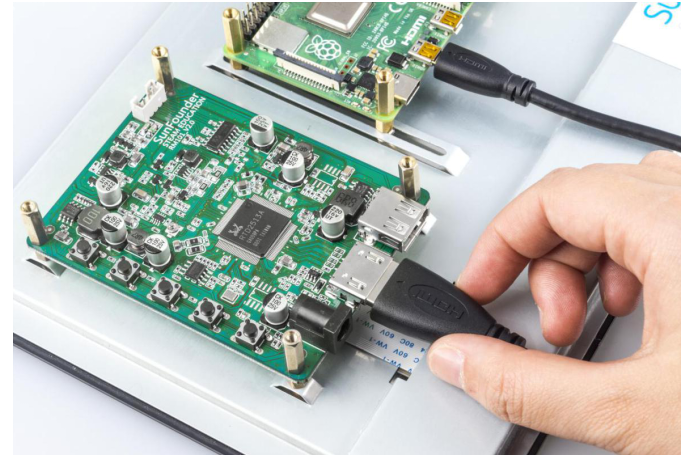

Pi 4

_images/inch8.png

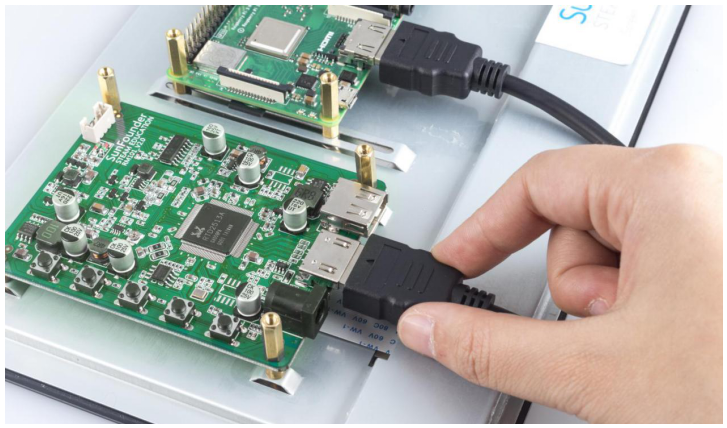

pi 3

_images/inch9.png

Step 5

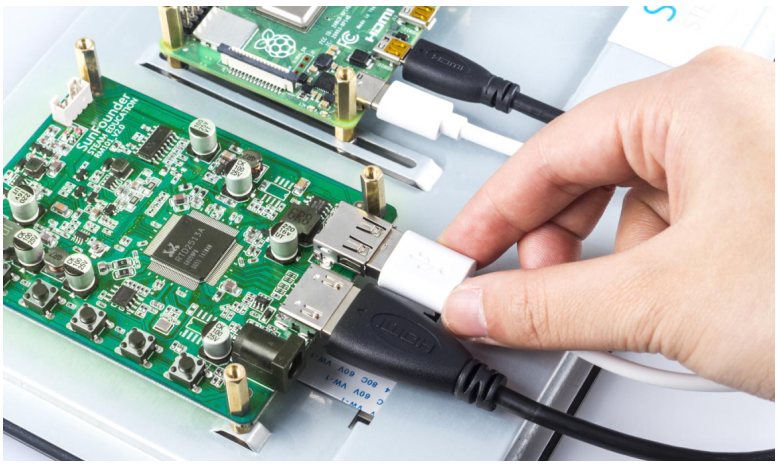

Connect the power port of the Raspberry Pi to the USB port of the main board via a USB cable.

Pi 4

_images/inch10.png

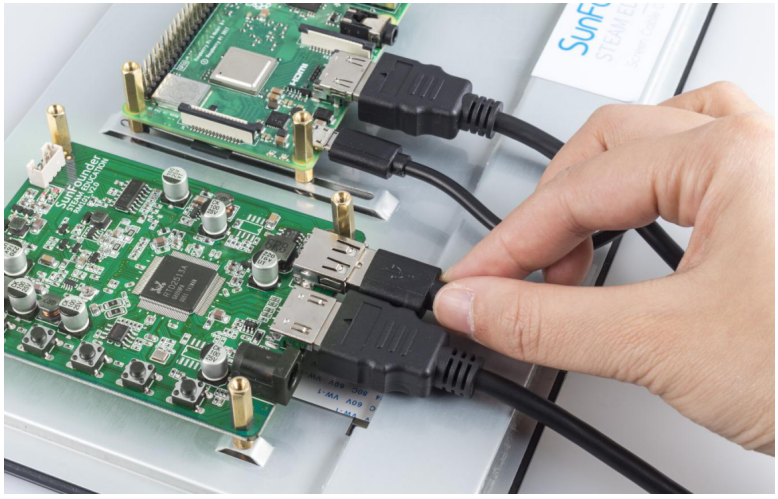

Pi 3

_images/inch11.png

Step 6

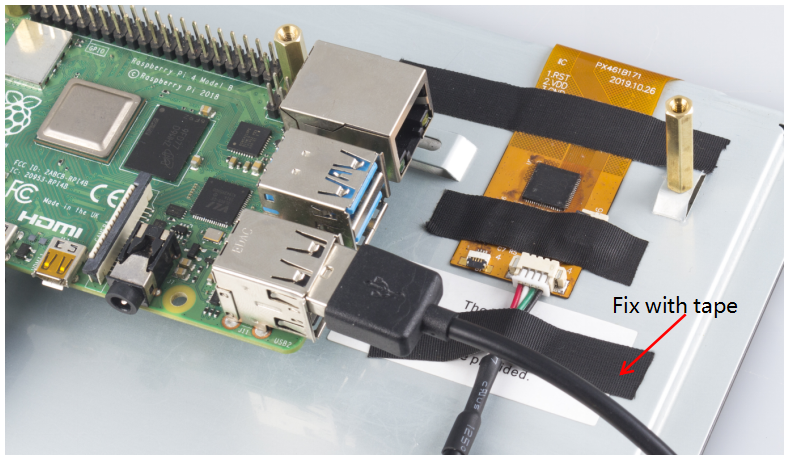

Connect the USB port of the Raspberry Pi and the screen with a 4-pin USB cable. To prevent the cable from falling off, use tape to fix it.

Note

In the following assembly steps, the method of Raspberry Pi 3 is the same as that of Raspberry Pi 4, so we take Raspberry Pi 4 as an example to introduce.

_images/inch12.png

Step 7

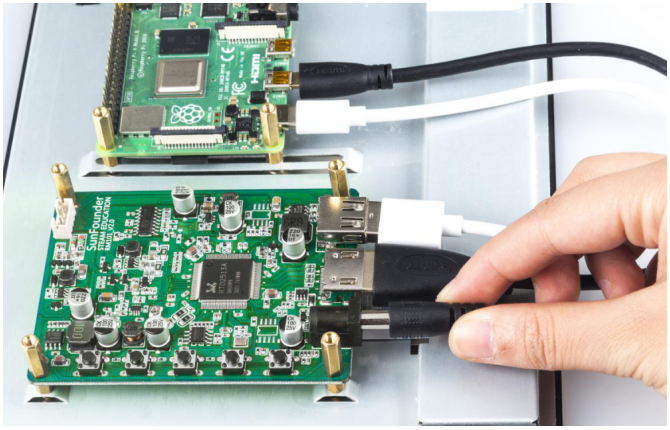

Connect the power cable of the supply to power the main board of the screen.

_images/inch13.png

Step 8

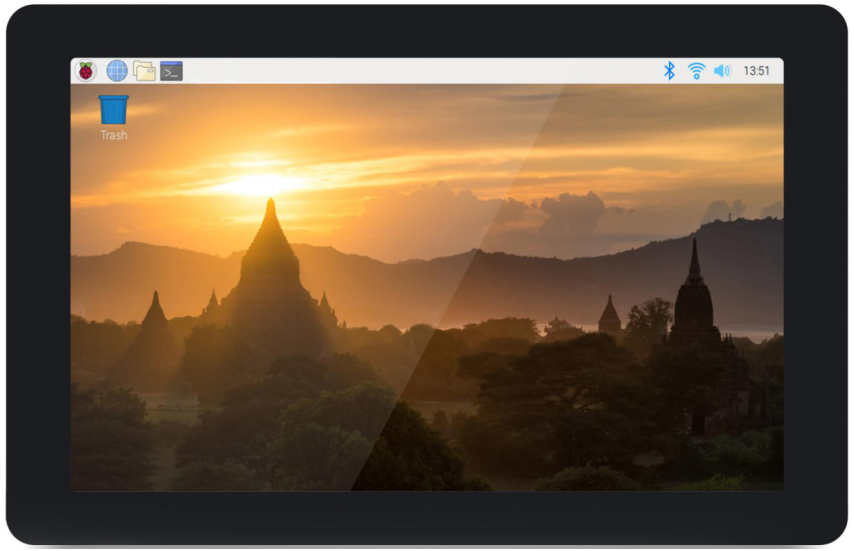

Then power it on and the boot screen will appear.

_images/inch14.png
