Features

Specifications

• Dimensions: 140.9 x 77.0 x 138.7 mm

• Material:

  • Main Chassis: Dark Anodized Aluminum Alloy

  • Side Panels: Dark Acrylic

• Supported Platform: Raspberry Pi 5 (only)

• Power Input: USB Type-C, 5V/5A (Minimum 27W recommended)

• Interfaces & Ports:

  • Raspberry Pi 40-pin GPIO (externally extended with clear labels)

  • MicroSD Card Slot (with spring-loaded eject mechanism)

  • Rear Panel:

    • USB Type-C Power Input

    • 2 x USB 2.0

    • 2 x USB 3.0

    • Gigabit Ethernet (RJ45)

    • 2 x Standard HDMI (Type A) Ports (4Kp60 support)

• Cooling System:

  • 1 x Large Tower Cooler with PWM-controlled Fan

  • 3 x Addressable RGB PWM Fans (GPIO controlled, synchronizable)

• Display & Multimedia:

  • 4.3-inch DSI Capacitive Touchscreen (800 x 480 pixels)

  • 0.96-inch OLED Display (128x64) for system stats

  • Stereo 3W Speakers

  • 5 Megapixel Camera Module support

• Storage & Expansion:

  • Integrated PCIe Gen 2 Switch

  • 2 x PCIe 2.0 x1 M.2 M-key Slots

  • Supported SSD/AI Card Sizes: 2230, 2242, 2260, 2280

• Controls, Lighting & Features:

  • 18 WS2812B addressable RGB LEDs: 6 onboard and 12 integrated into the RGB fans.

  • IR Receiver (38kHz)

  • Metal Power Button (safe shutdown function)

  • Real-Time Clock (RTC) Battery Holder (for CR1220 cell)

• Build Quality: Precision CNC aluminum body with tempered dark acrylic windows, designed for durability and sophisticated aesthetics.

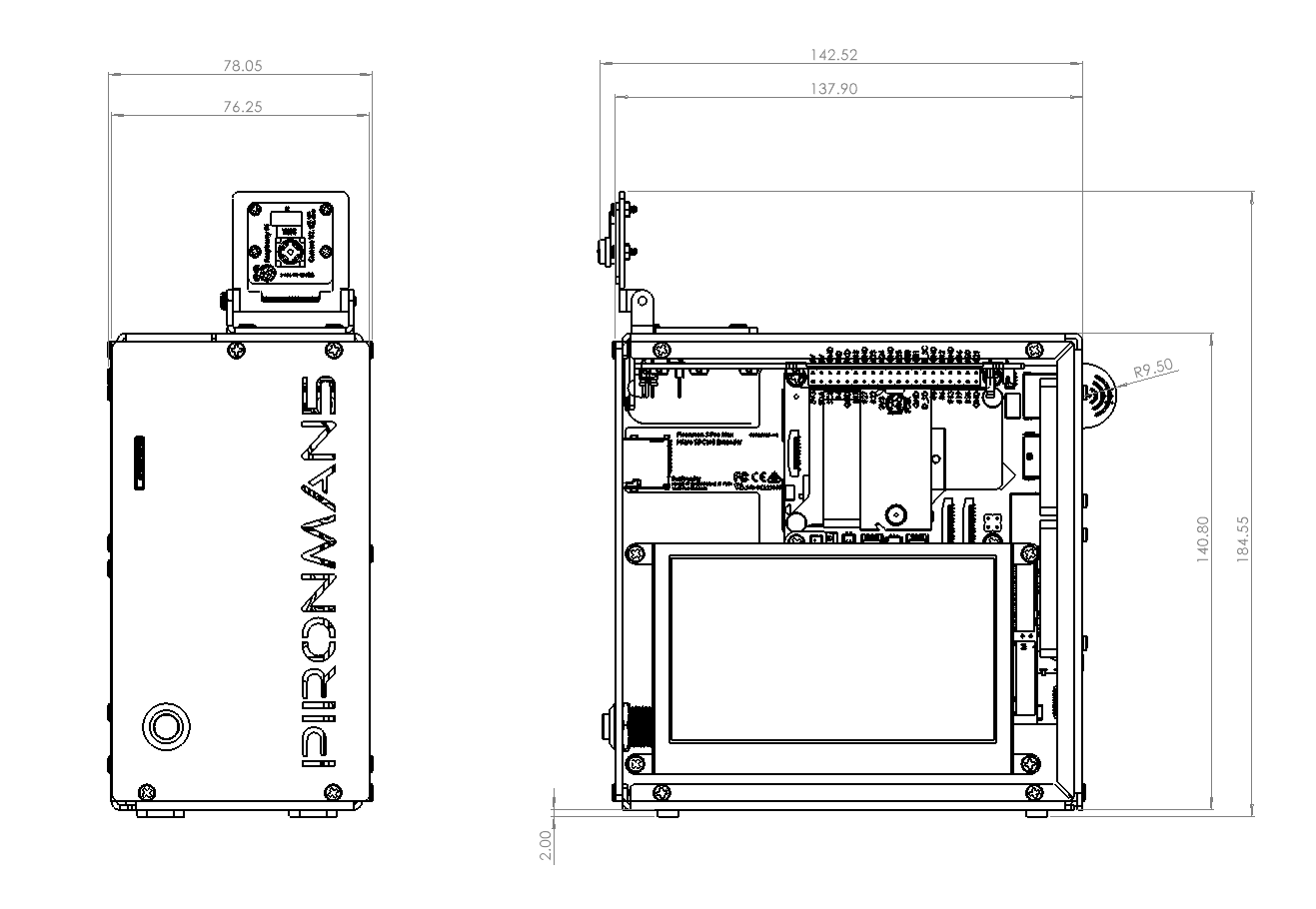

Dimensional Drawing
