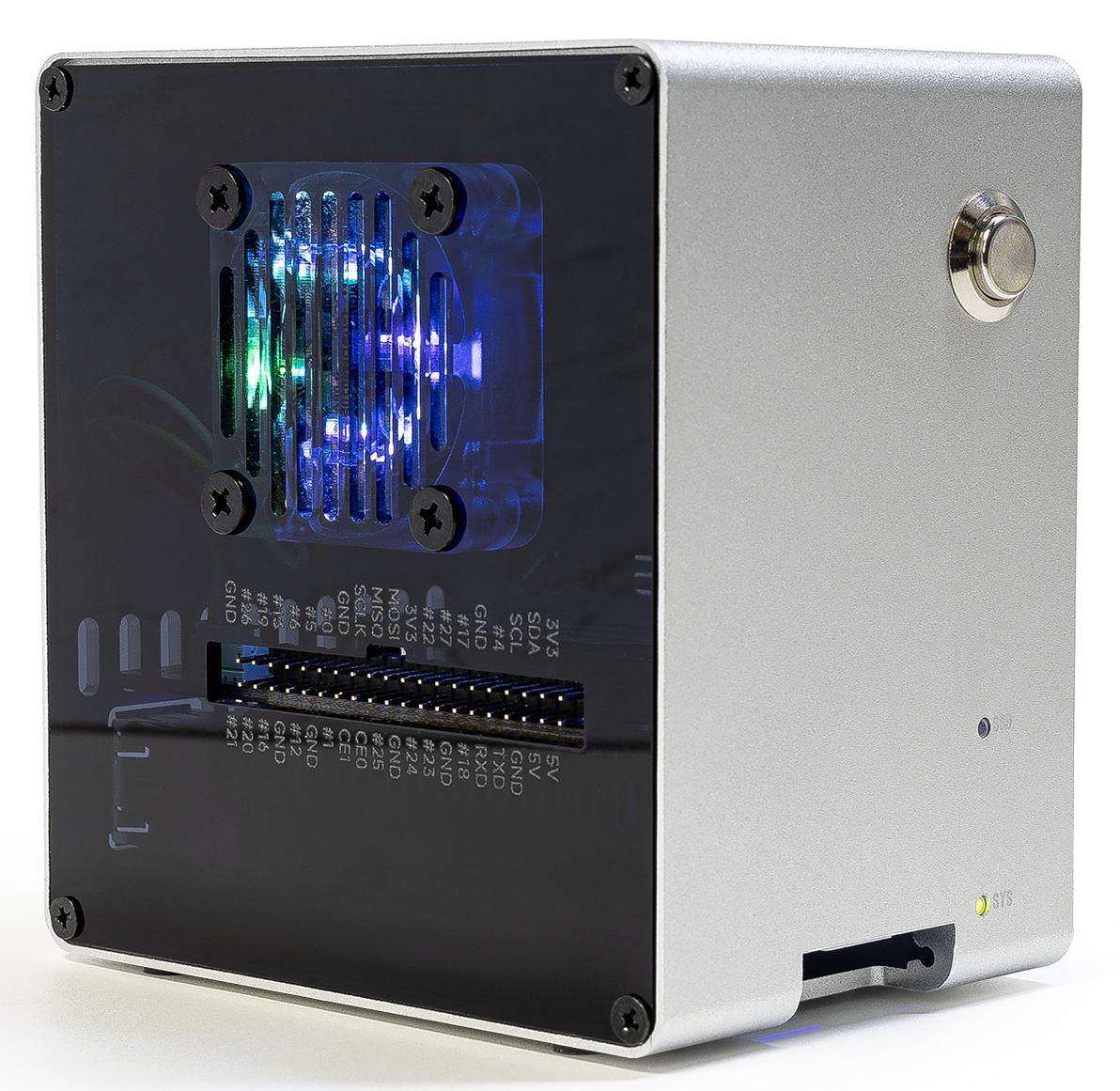

Pironman 5 Mini

Thanks for choosing our Pironman 5 Mini.

Pironman 5 Mini is the compact and streamlined model in the Pironman 5 series, offering a smaller form factor without compromising on core functionality. Featuring a sleek silver aluminum alloy body and transparent acrylic side panels, it delivers both style and performance in a space-saving design.

Key Features

• Dedicated Controls: Integrated power button for convenient operation.

• Efficient Cooling: Active cooling system similar to the official Raspberry Pi cooler, plus an additional RGB side fan for enhanced airflow.

• Extra Functionality: Built-in RTC battery and 4 WS2812-5050 RGB LEDs.

• Easy Expansion: GPIO extender for flexible hardware connections.

• High-Speed Storage: PCIe 2.0 M.2 M-key slot supporting NVMe SSDs in sizes 2230, 2242, 2260, 2280.

Ideal for projects that demand fast storage, stable performance, and a compact design, the Pironman 5 Mini brings premium features to a smaller form factor.

Note

It is recommended to use the official 27W power supply or SunFounder 27W PD Power Supply for the Pironman 5 series products to avoid insufficient power supply, which may cause the Raspberry Pi 5 to reboot.

• About this Kit
• 1. What Else Should You Prepare?
• 2. Assembly Instructions
• 3. Installing the Operating System
• 4. Setting Up or Installing Software
• 5. Controlling with Commands or the Dashboard
• 6. Hardware Overview
• 7. Optional Modules: Camera, 3.5’’ Screen, RTL-SDR
• 8. Home Server Applications
• Compatible NVMe SSDs
• FAQ

Parameters

• Dimension: 67.8x98.6x101.5mm

• Material

  • Main Body: Silver Aluminum Alloy

  • Two Side Panel: Black Transparent Acrylic

• Support Platform: Raspberry Pi 5

• Power Input: USB Type C, 5V/5A

• Interfaces

  • Raspberry Pi standard 40-Pin GPIO

  • Micro SD socket

  • USB Type C power input

  • 2 x USB 2.0

  • 2 x USB 3.0

  • Gigabit LAN port

  • 2 x 4Kp60 Micro HDMI Ports

• 1 x Metal Power Button

• 1 x RGB Fan (40x40x10mm)

• 4 x WS2812-5050 RGB LEDs

• 1 x Activer Cooler

• 1 x PCIe 2.0 M.2 M key (2230, 2242, 2260, 2280) for NVMe SSD

• 1 x 1220 Battery for RTC

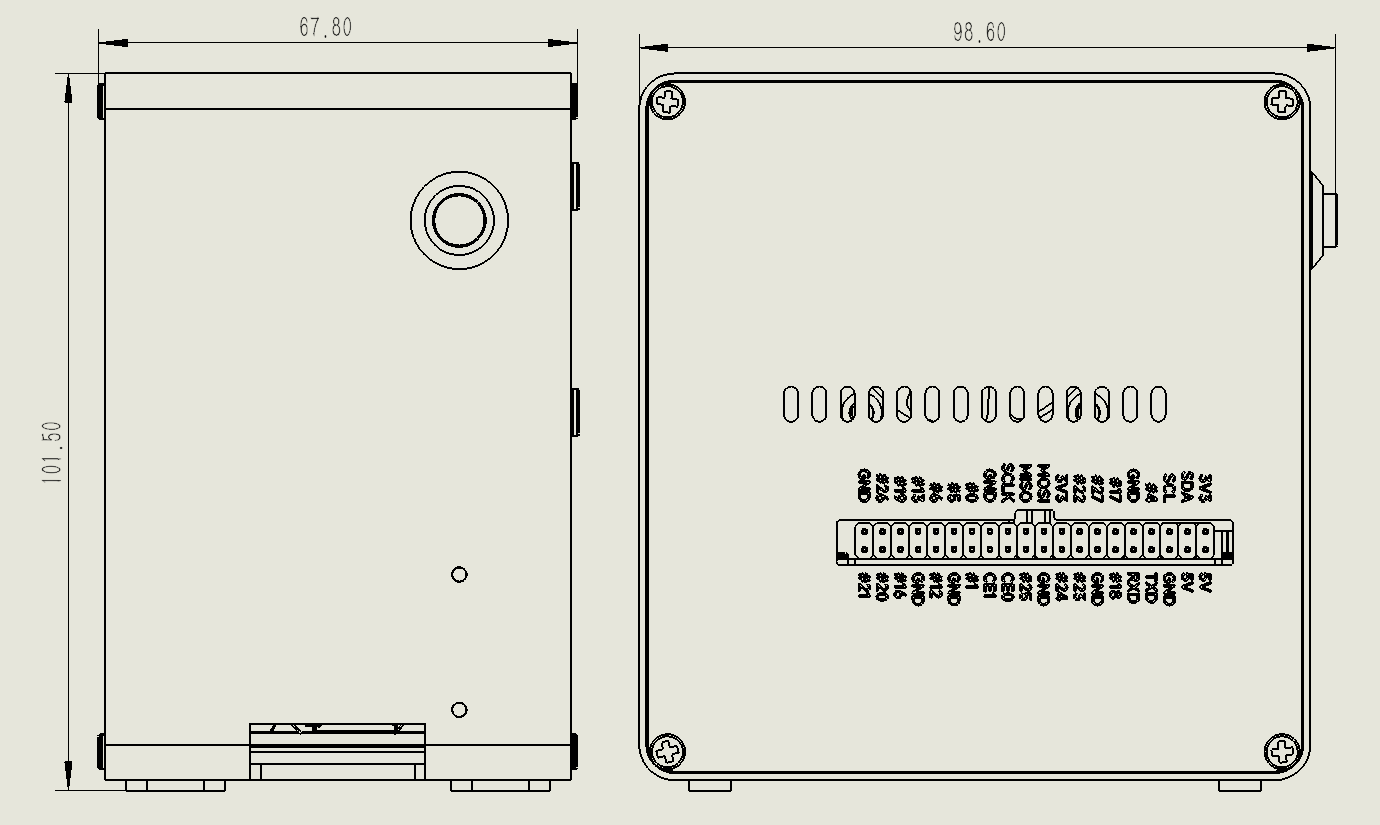

Dimensional Drawing
