Battery

_images/vh2pin_battery.png

  • VCC: Battery positive terminal.

  • GND: Negative battery terminal.

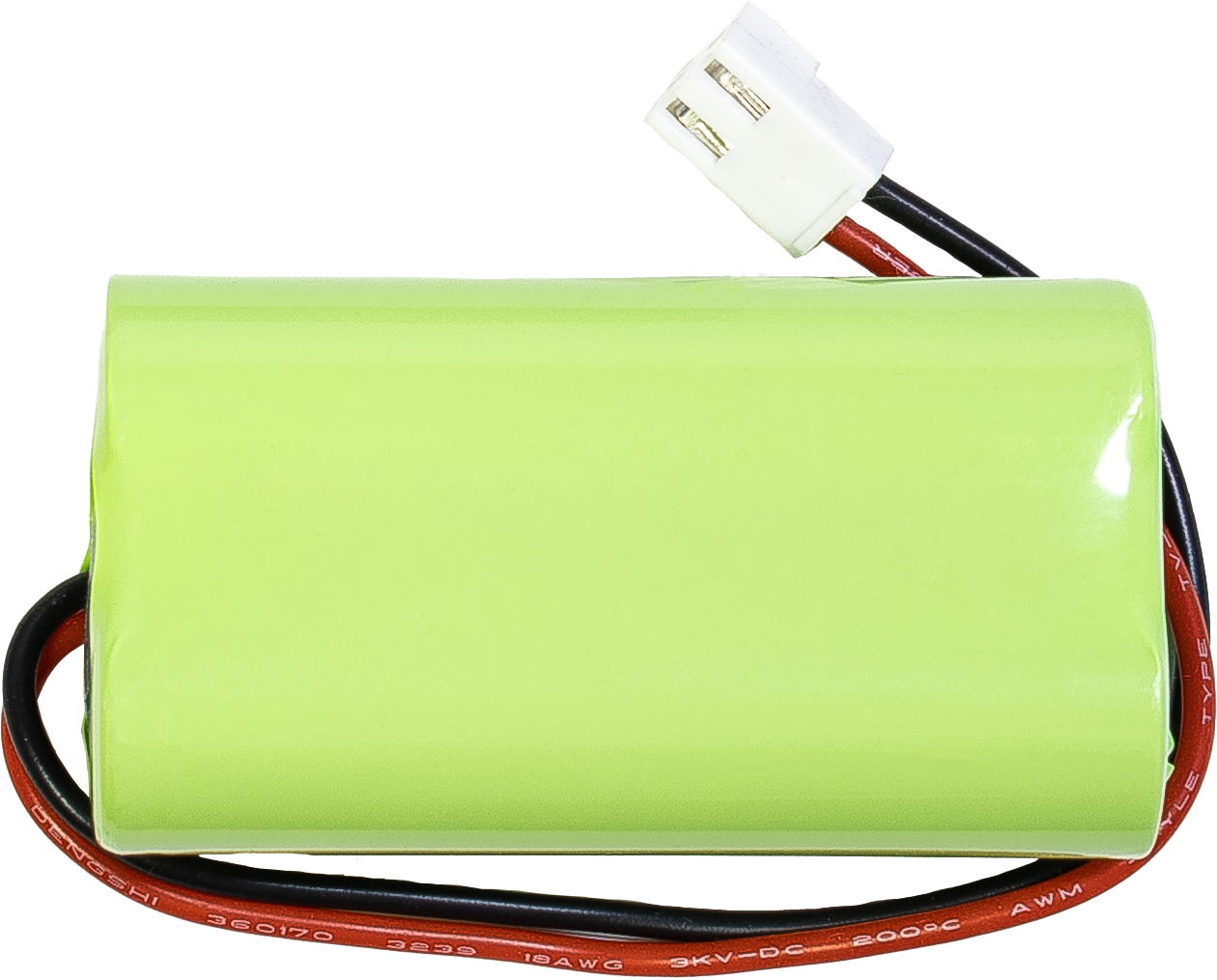

This is a custom battery pack made by SunFounder consisting of two 18650 batteries with a capacity of 2000mAh. The connector is VH3.96 2P, which can be charged directly after being inserted into the shield.

Features

  • Composition: Li-ion

  • Battery Capacity: 2000mAh, 14.8Wh

  • Battery Weight: 90.8g

  • Number of Cells: 2

  • Connector: VH3.96 2pin

  • Over-discharge protection: 6.0V
