Installing the OS on an NVMe SSD

If you are using an NVMe SSD and have an adapter to connect the NVMe SSD to your computer for system installation, you can use the following tutorial for a quick installation.

Required Components

  • A Personal Computer

  • A NVMe SSD

  • A NVMe to USB Adapter

  • Micro SD Card and Reader

1. Install Raspberry Pi Imager

  1. Visit the official Raspberry Pi Imager download page: Raspberry Pi Imager. Download the correct installer for your operating system.

    ../../_images/imager_download3.png

  2. Follow the installation prompts (language, install path, confirmation). After installation, launch Raspberry Pi Imager from your desktop or applications menu.

    ../../_images/imager_install3.png

2. Install the OS to the microSD Card

  1. Insert the NVMe SSD into your computer using an adapter.

  1. When Raspberry Pi Imager opens, you will see the Device page. Select your Raspberry Pi 5 model from the list.

    ../../_images/imager_device3.png

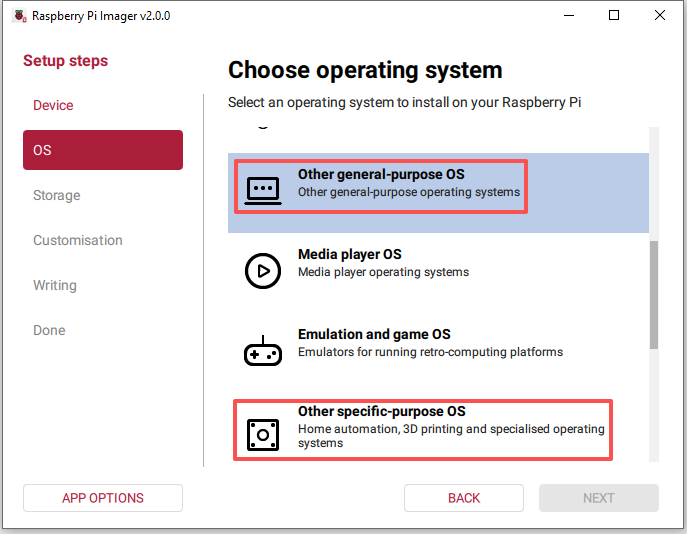

  2. Go to the OS section, scroll down to the bottom of the page, and select your operating system.

    Note

    • For Ubuntu, click Other general-purpose OS → Ubuntu, then select Ubuntu Desktop 24.04 LTS (64-bit) or Ubuntu Server 24.04 LTS (64-bit).

    • For Kali Linux and Homebridge, click Other specific-purpose OS, then select the corresponding system.

    ../../_images/imager_other_os3.png

  3. In the Storage section, select your NVMe SSD.

    ../../_images/nvme_storage3.png

  4. Click NEXT.

    Note

    • For systems that cannot be configured in advance, clicking NEXT will skip the Customisation step and go directly to Writing, where the OS is written to the microSD card.

    • For systems that support pre-configuration, follow the Customisation steps to configure options such as Hostname, WiFi, and Enable SSH.

    ../../_images/imager_write_other_os3.png

  5. When the “Write Successful” popup appears, the image has been fully written and verified. You can now safely remove the microSD card and use it to boot your Raspberry Pi.
