Installing the Batocera OS

Follow the tutorial below to install the system onto your Micro SD card.

Required Components

• A Personal Computer

• A Micro SD card and Reader

1. Install Raspberry Pi Imager

1. Visit the official Raspberry Pi Imager download page: Raspberry Pi Imager. Download the correct installer for your operating system.



2. Follow the installation prompts (language, install path, confirmation). After installation, launch Raspberry Pi Imager from your desktop or applications menu.



2. Install the OS to the microSD Card

1. Download the latest version of the OS from the Batocera.Linux website.

2. Insert your microSD card into your computer using a card reader. Before proceeding, back up any important data on the card, as it will be erased.



3. When Raspberry Pi Imager opens, you will see the Device page. Select your Raspberry Pi 5 model from the list.



4. Go to the OS section, scroll down to the bottom of the page, and select Username custom.

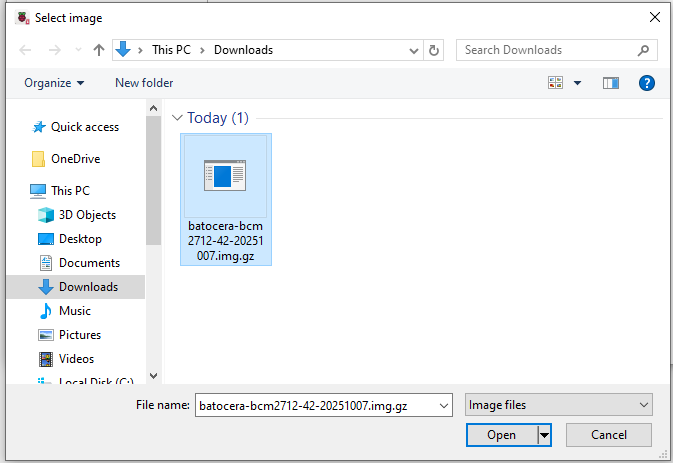

5. Choose the batocera-bcmxxxxxxx.img.gz file you just downloaded and click Open.



6. In the Storage section, select your microSD card. For safety, it is recommended to unplug other USB storage devices so that only the microSD card appears in the list.

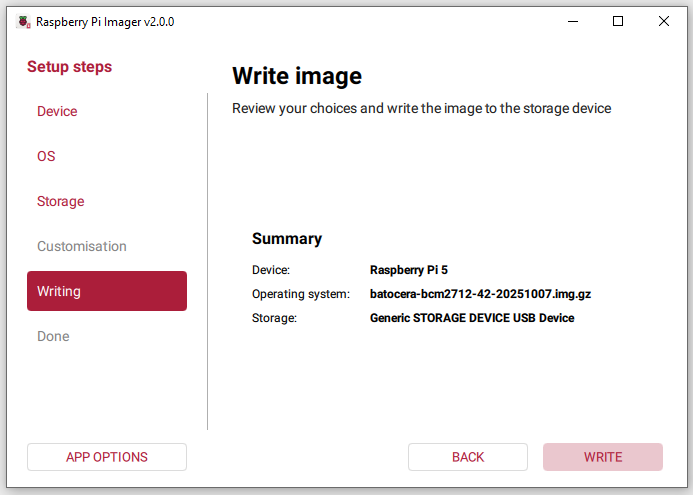

7. Click NEXT and go directly to Writing, where the OS is written to the microSD card.

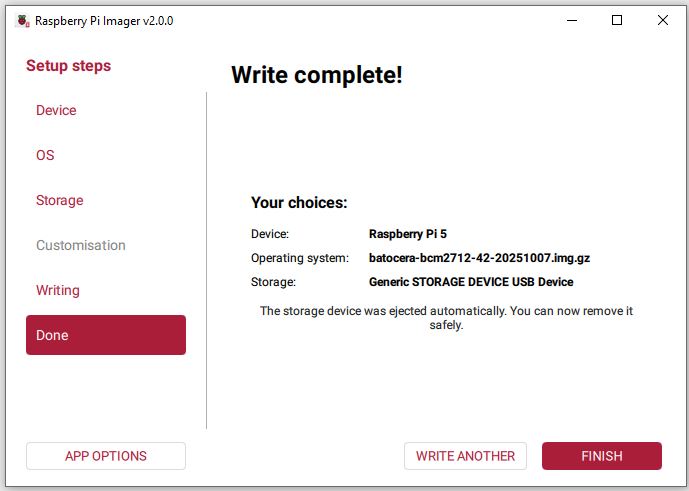

8. When the “Write Successful” popup appears, the image has been fully written and verified. You can now safely remove the microSD card and use it to boot your Raspberry Pi.
